EX-PROOF ZIRHLI KABLO RAKORLARI (BIMED)
Ürün Kodu:KBA

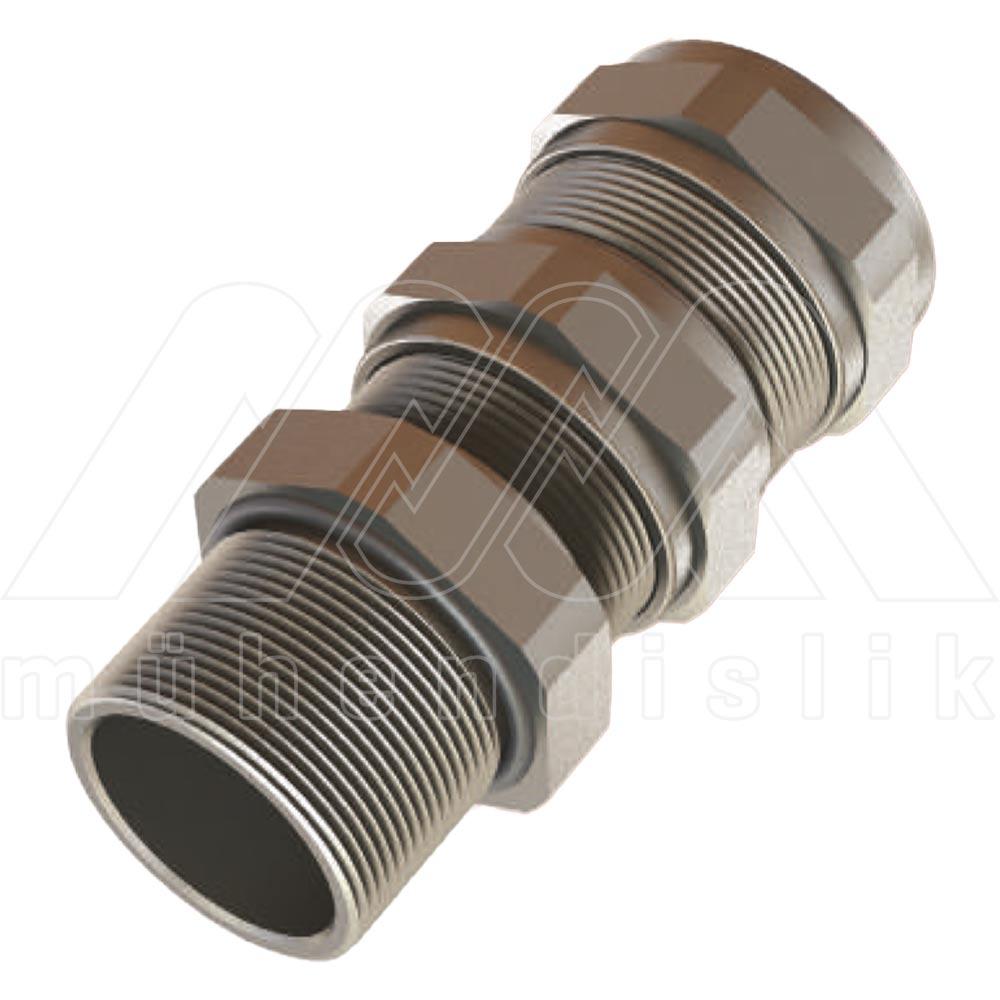

- Orion 4 Function serisi Ex-proof Zırhlı metal kablo rakorları pirinç üzeri nikel kaplamalıdır.

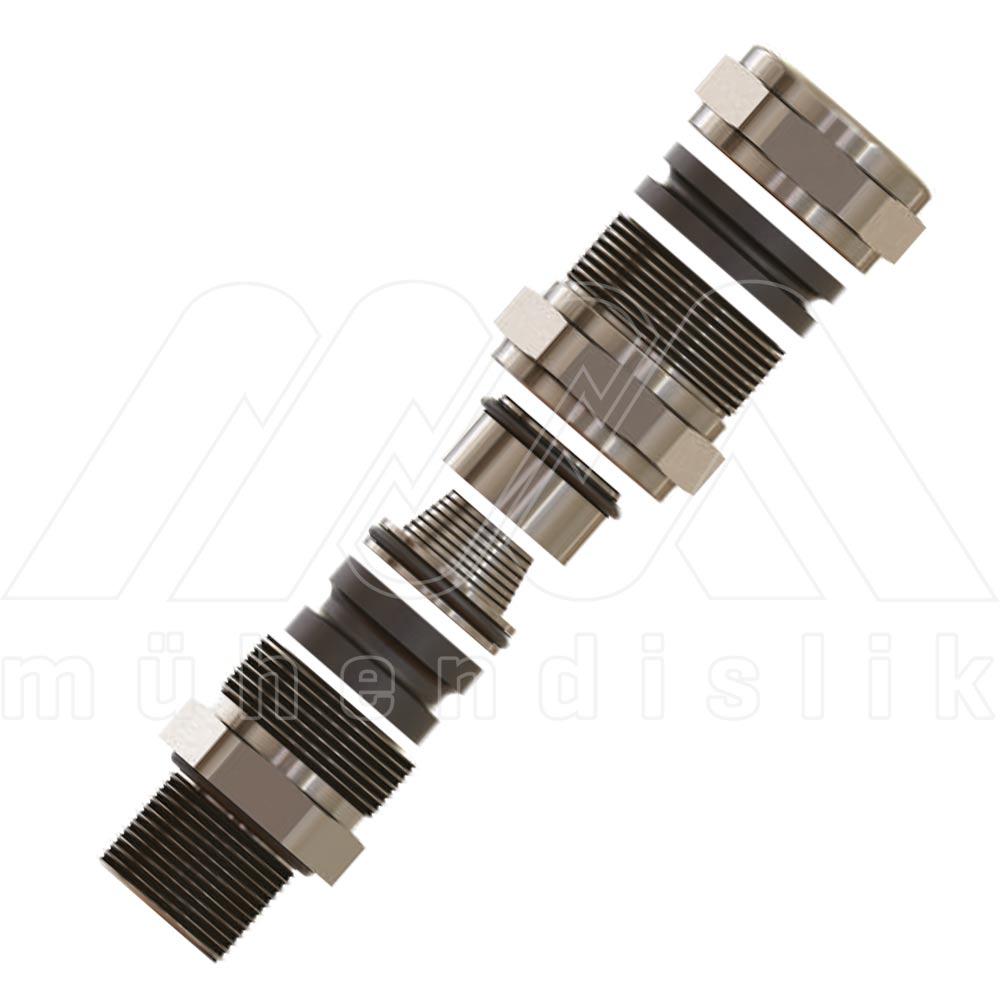

- KBA... tip Exproof kablo rakorlarının kendine özel Shroud (kauçuk kılıfı), Earth Tags (Topraklama Pulu), Lock Nuts (Kilitleme Somunu), Serrated Washers (Tırtıllı Rondela), Gaskets (Fiber / EPDM / Silikon Conta) aksesuarları bulunmaktadır. Bu aksesuarlar isteğe göre ayrıca talep edilmelidir.
Açıklama
GAS | II 2G Ex db/eb IIC Gb | IP66/IP68 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2D Ex tb IIIC Db | IP66/IP68 | -60°C ÷ +130°C (silikon conta) | -40°C ÷ +100°C (Kloropren conta) |

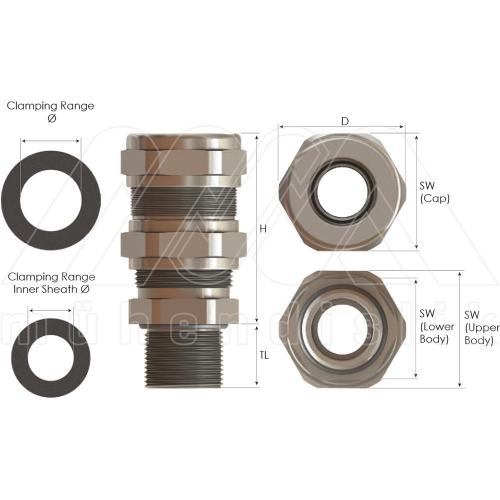

NPT | NPT | Metrik | Metrik | Min. / Max. | Min. / Max. |
|---|---|---|---|---|---|
KBA01SN | NPT 3/8" | KBA01SM | M16x1,5 | 3,0-8,5 | 6,0-12,0 |
KBA01N | NPT 3/8" | KBA01M | M16x1,5 | 6,0-12,0 | 8,5-16,0 |
KBA1SN | NPT 1/2" | KBA1SM | M20x1,5 | 3,0-8,5 | 6,0-12,0 |
KBA1N | NPT 1/2" | KBA1M | M20x1,5 | 6,0-12,0 | 8,5-16,0 |
KBA1LN | NPT 1/2" | KBA1LM | M20x1,5 | 12,0-14,5 | 16,0-20,0 |
KBA2SN | NPT 3/4" | KBA2SM | M25x1,5 | 6,0-12,0 | 8,5-16,0 |
KBA2N | NPT 3/4" | KBA2M | M25x1,5 | 12,0-16,0 | 16,0-21,0 |
KBA2LN | NPT 3/4" | KBA2LM | M25x1,5 | 12,0-20,0 | 16,0-26,0 |
KBA3SN | NPT 1" | KBA3SM | M32x1,5 | 12,0-20,0 | 16,0-26,0 |
KBA3N | NPT 1" | KBA3M | M32x1,5 | 15,0-26,0 | 20,0-33,0 |
KBA4SN | NPT 1 1/4" | KBA4SM | M40x1,5 | 15,0-26,0 | 20,0-33,0 |
KBA4N | NPT 1 1/4" | KBA4M | M40x1,5 | 20,0-32,0 | 29,0-41,0 |
KBA5SN | NPT 1 1/2" | KBA5SM | M50x1,5 | 22,0-35,0 | 33,0-48,0 |
KBA5N | NPT 1 1/2" | KBA5M | M50x1,5 | 27,0-41,0 | 36,0-52,0 |
KBA6SN | NPT 2" | KBA6SM | M63x1,5 | 35,0-45,0 | 43,0-57,0 |
KBA6N | NPT 2" | KBA6M | M63x1,5 | 40,0-52,0 | 47,0-60,0 |
KBA7SN | NPT 2 1/2" | KBA7SM | M75x1,5 | 40,0-52,0 | 47,0-60,0 |
KBA7N | NPT 2 1/2" | KBA7M | M75x1,5 | 45,0-60,0 | 54,0-70,0 |
KBA8SN | NPT 3" | KBA8SM | M90x1,5 | 45,0-60,0 | 54,0-70,0 |
KBA8N | NPT 3" | KBA8M | M90x1,5 | 60,0-72,0 | 63,0-80,0 |
