EX-PROOF ZIRHSIZ KABLO RAKORLARI (BİMED)
Ürün Kodu:EBU

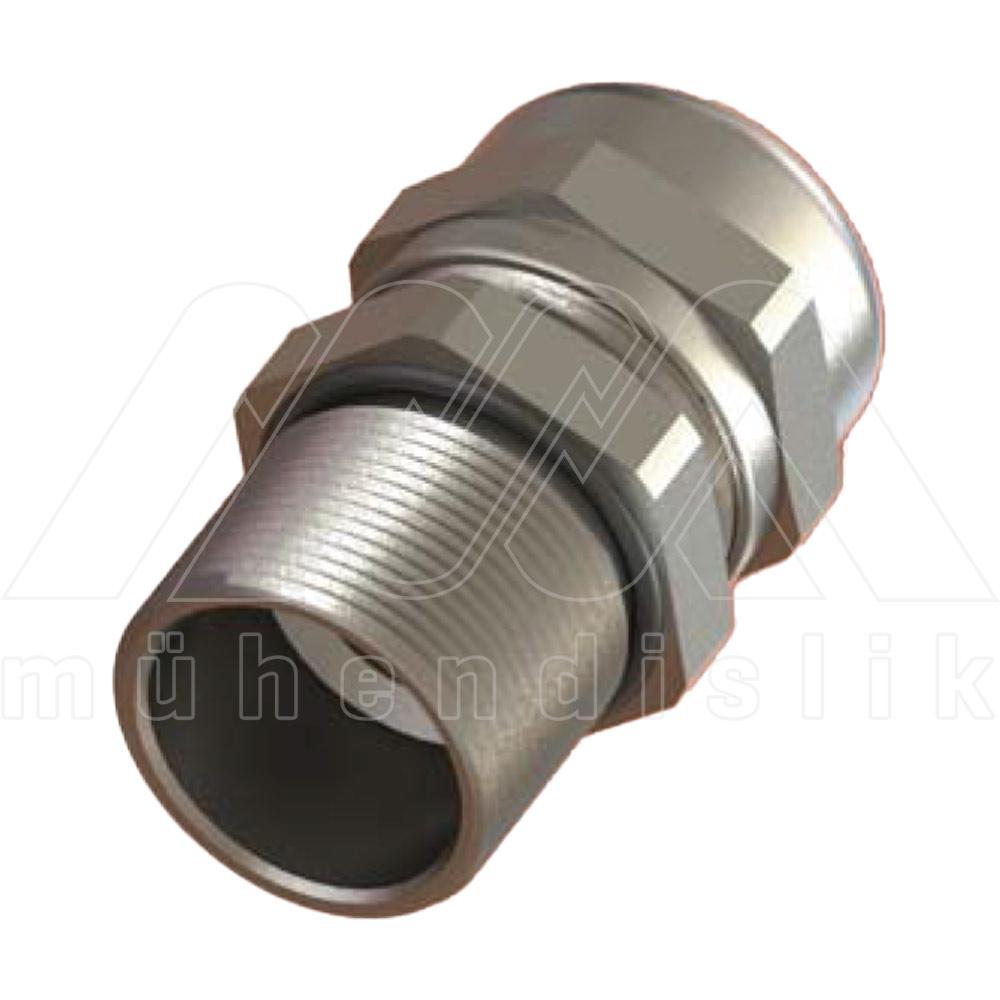

- E-Octans 1 Function serisi Ex-proof Zırhsız metal kablo rakorları pirinç üzeri nikel kaplamalıdır.

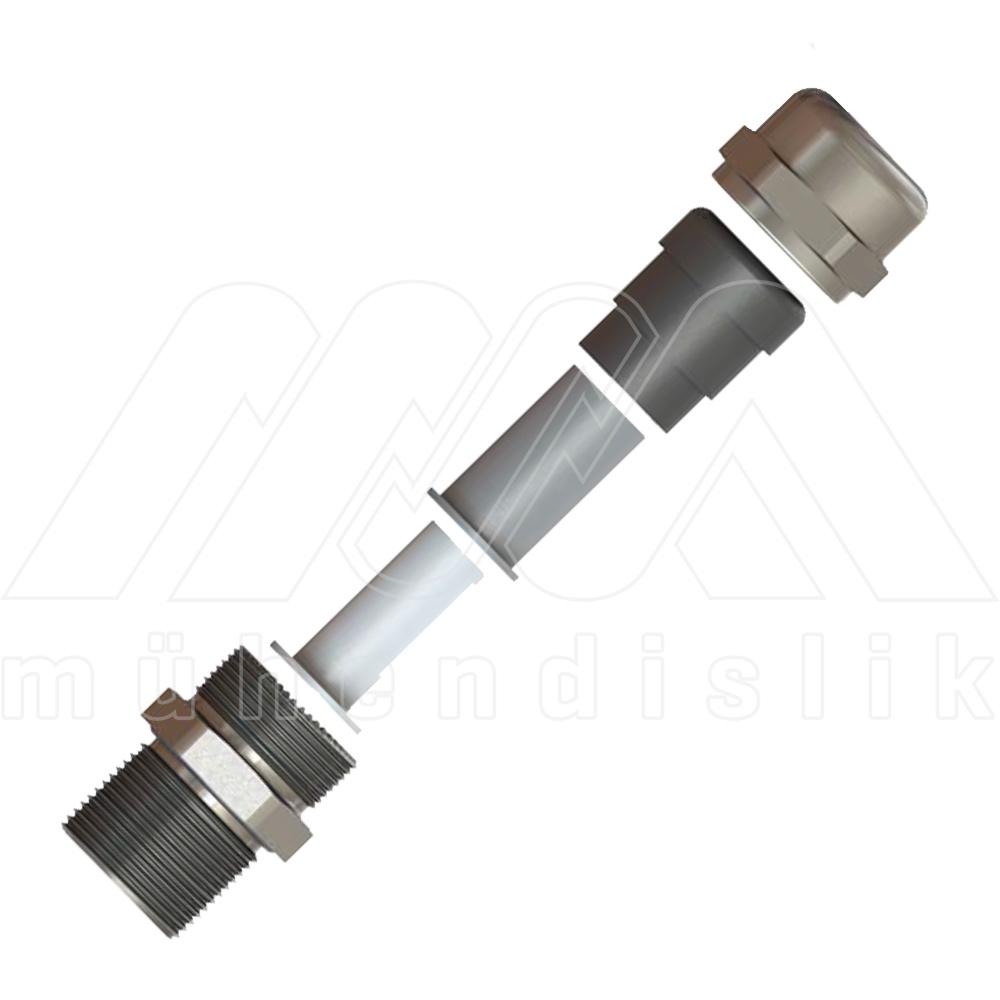

- EBU... tip Exproof kablo rakorlarının kendine özel Shroud (kauçuk kılıfı), Earth Tags (Topraklama Pulu), Lock Nuts (Kilitleme Somunu), Serrated Washers (Tırtıllı Rondela), Gaskets (Fiber / EPDM / Silikon Conta) aksesuarları bulunmaktadır. Bu aksesuarlar isteğe göre ayrıca talep edilmelidir.
Açıklama
GAS | II 2G Ex db/eb IIC Gb | IP66/IP68 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2D Ex tb IIIC Db | IP66/IP68 | -60°C ÷ +80°C (silikon conta) | -40°C ÷ +80°C (Kloropren conta) |

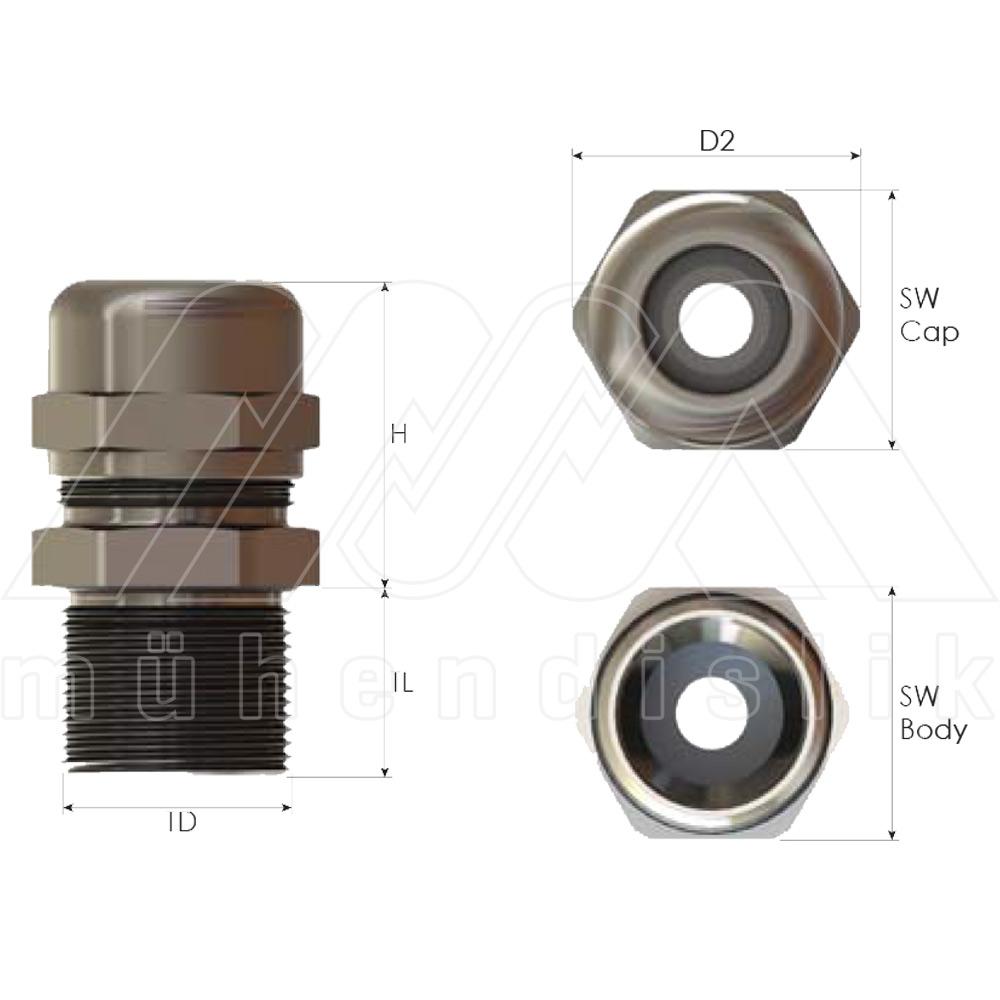

NPT Kod | NPT Diş Ölçüsü | Metrik Kod | Metrik Diş Ölçüsü | Min. Ømm | Max. Ømm |
|---|---|---|---|---|---|
EBU01SN | NPT 3/8" | EBU01SM | M16x1,5 | 3,0 | 9,0 |
EBU01N | NPT 3/8" | EBU01M | M16x1,5 | 4,0 | 12,0 |
EBU1SN | NPT 1/2" | EBU1SM | M20x1,5 | 3,0 | 9,0 |
EBU1N | NPT 1/2" | EBU1M | M20x1,5 | 4,0 | 12,0 |
EBU12N | NPT 1/2" | EBU12M | M20x1,5 | 10,0 | 16,0 |
EBU2SN | NPT 3/4" | EBU2SM | M25x1,5 | 4,0 | 12,0 |
EBU2N | NPT 3/4" | EBU2M | M25x1,5 | 10,0 | 18,0 |
EBU23N | NPT 3/4" | EBU23M | M25x1,5 | 14,0 | 20,0 |
EBU3SN | NPT 1" | EBU3SM | M32x1,5 | 10,0 | 18,0 |
EBU3N | NPT 1" | EBU3M | M32x1,5 | 14,0 | 24,0 |
EBU34N | NPT 1" | EBU34M | M32x1,5 | 22,0 | 26,0 |
EBU4SN | NPT 1 1/4" | EBU4SM | M40x1,5 | 14,0 | 24,0 |
EBU4N | NPT 1 1/4" | EBU4M | M40x1,5 | 22,0 | 32,0 |
EBU45N | NPT 1 1/4" | EBU45M | M40x1,5 | 26,0 | 34,0 |
EBU5SN | NPT 1 1/2" | EBU5SM | M50x1,5 | 22,0 | 32,0 |
EBU5N | NPT 1 1/2" | EBU5M | M50x1,5 | 26,0 | 35,0 |
EBU56N | NPT 1 1/2" | EBU56M | M50x1,5 | 35,0 | 41,0 |
EBU6SN | NPT 2" | EBU6SM | M63x1,5 | 26,0 | 35,0 |
EBU6N | NPT 2" | EBU6M | M63x1,5 | 35,0 | 45,0 |
EBU67N | NPT 2" | EBU67M | M63x1,5 | 46,0 | 52,0 |
EBU7SN | NPT 2 1/2" | EBU7SM | M75x1,5 | 35,0 | 45,0 |
EBU7N | NPT 2 1/2" | EBU7M | M75x1,5 | 46,0 | 62,0 |
EBU78N | NPT 2 1/2" | EBU78M | M75x1,5 | 60,0 | 64,0 |
EBU8SN | NPT 3" | EBU8SM | M90x1,5 | 46,0 | 62,0 |
EBU8N | NPT 3" | EBU8M | M90x1,5 | 60,0 | 75,0 |
EBU810N | NPT 3" | EBU810M | M90x1,5 | 75,0 | 79,5 |
