EXPROOF CABLE GLANDS FOR UNARMOURED CABLE – ADE 12F TYPE (EATON)
Product Code:ADE 1F2

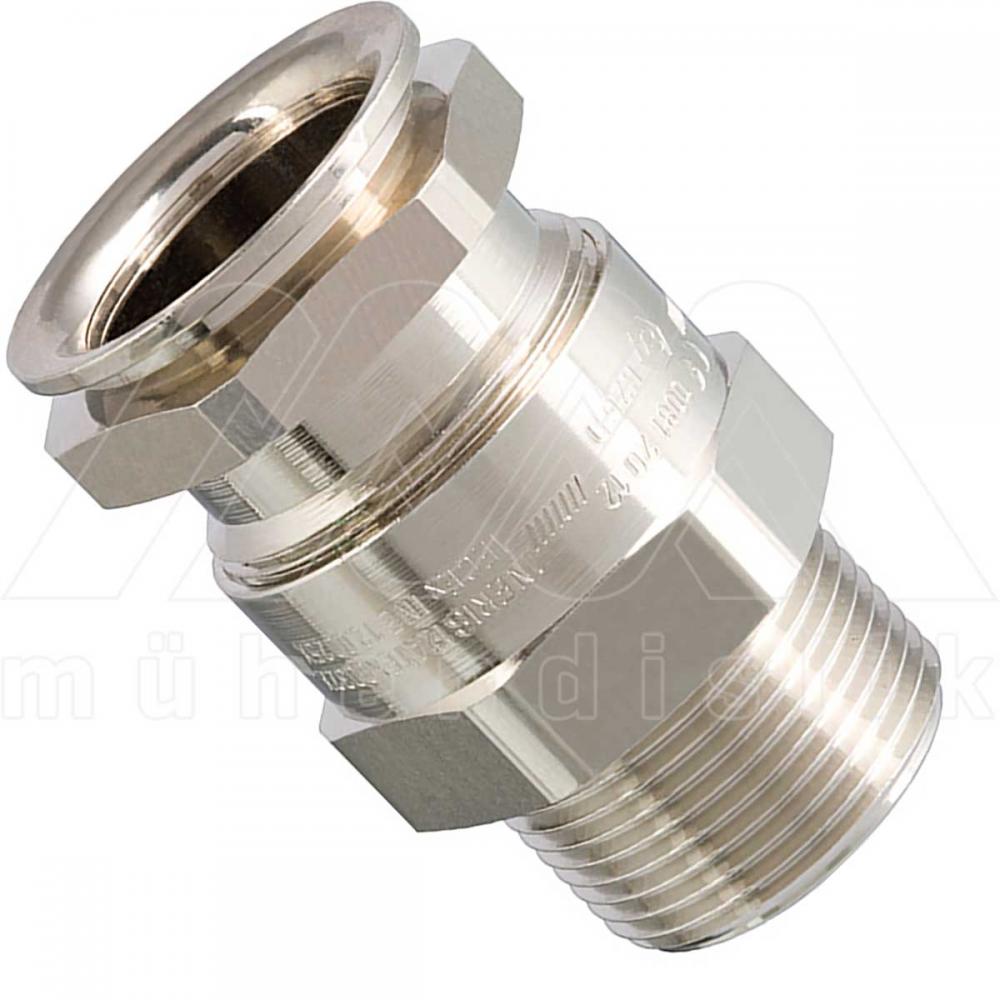

- ADE 1F2 model cable glands are nickel plated over brass.
- Suitable for use for unarmored type cables.

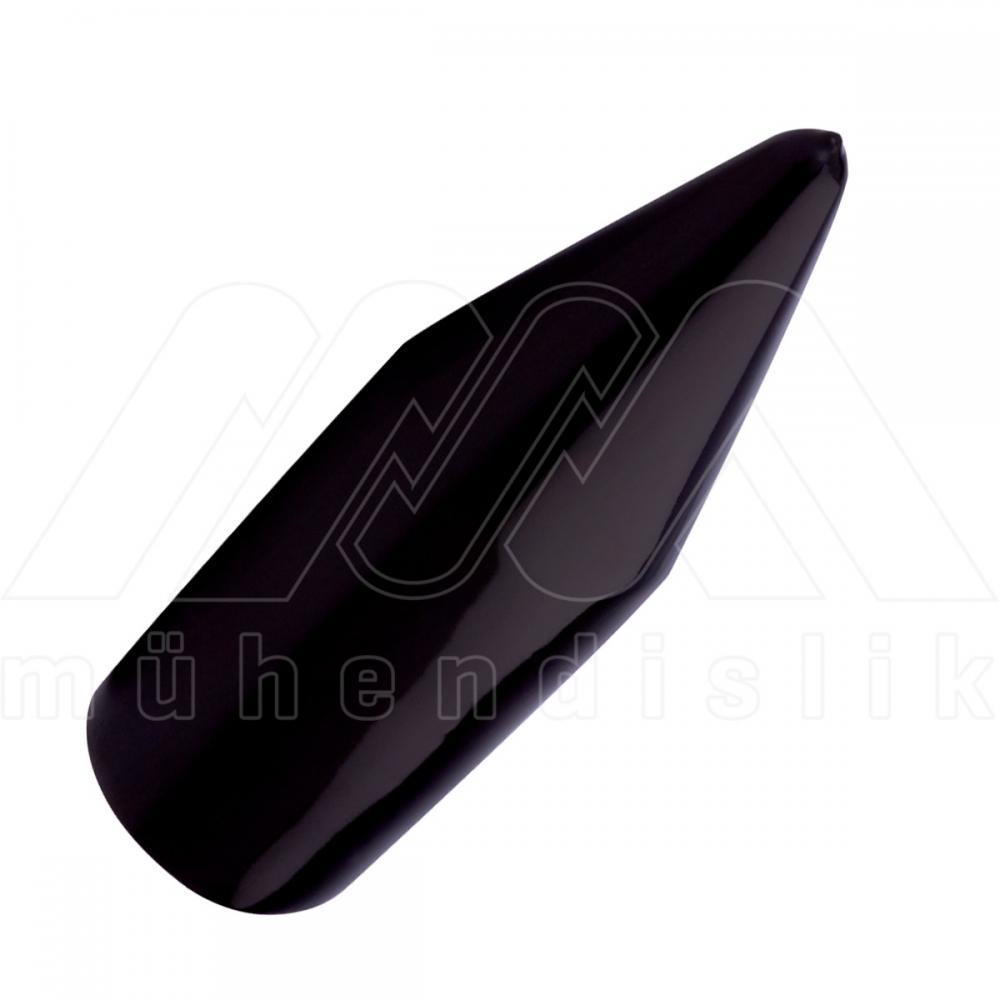

- PVC sheath, locking nut and earth tags can be given extra if desired.
Description
GAS | I M2 Ex db/eb I Mb - II 2G Ex db/eb IIC | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2D Ex tb IIIC | IP66 | -30°C ÷ +80°C | -60°C ÷ +140°C |

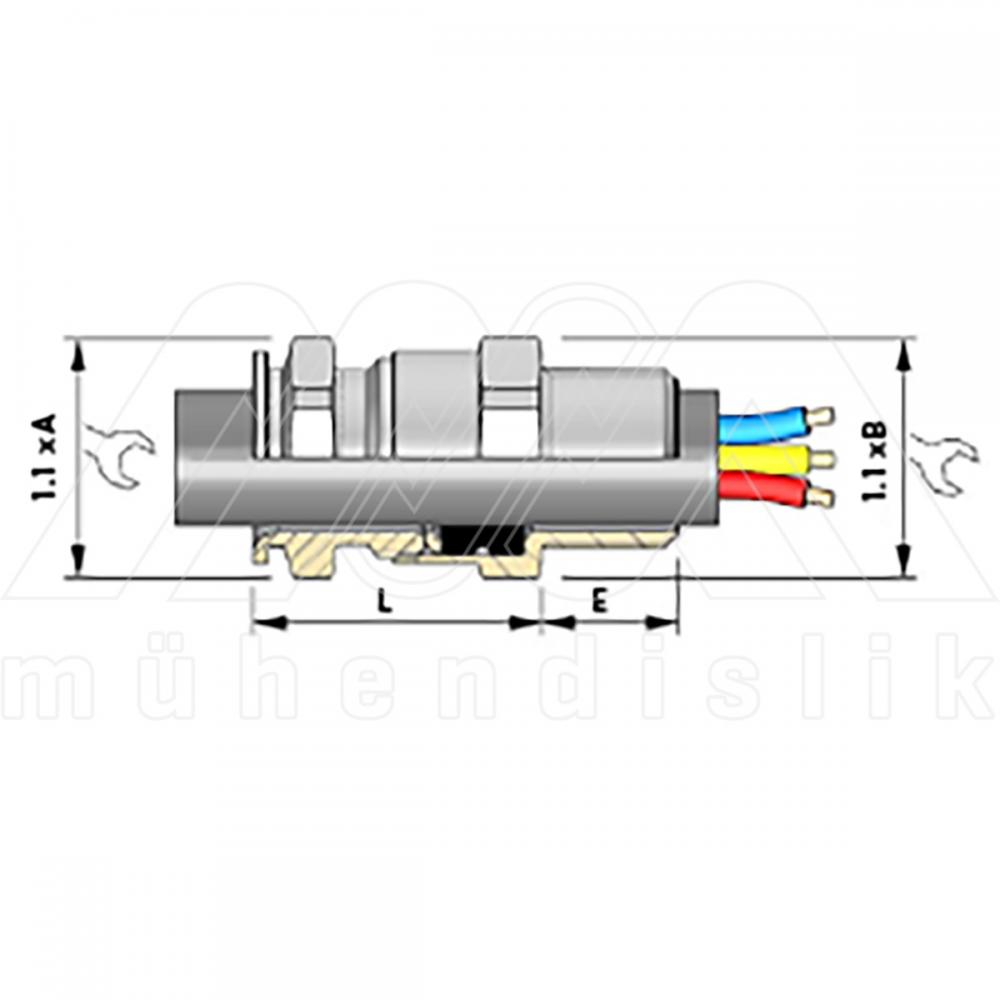

NPT | Thread | Cable Clamping Range mm (D) | A | B | E | L | Shroud | Shroud | |
|---|---|---|---|---|---|---|---|---|---|
CAP 808 674 V1 | ½" | 4,5 | 8,5 | 24 | 17 | 22,2 | 26 | ADE 4 | CAP 506040 |
CAP 808 694 V1 | ½" | 7,0 | 12,0 | 24 | 19 | 22,2 | 29,5 | ADE 5 | CAP 506050 |
CAP 808 604 V1 | ½" | 10,0 | 15,5 | 24 | 24 | 22,2 | 32,0 | ADE 6 | CAP 506060 |
CAP 808 774 V1 | ¾" | 7,0 | 12,0 | 30 | 19 | 22,5 | 29,5 | ADE 5 | CAP 506050 |
CAP 808 794 V1 | ¾" | 10,0 | 16,0 | 30 | 24 | 22,5 | 32 | ADE 6 | CAP 506060 |
CAP 808 804 V1 | 1" | 18,0 | 26,0 | 41 | 41 | 27,3 | 46 | ADE 8 | CAP 506080 |
CAP 808 904 V1 | 1 ¼" | 23,0 | 34,0 | 48 | 48 | 28,0 | 50 | ADE 9 | CAP 506090 |
CAP 809 004 V1 | 1 ½" | 29,0 | 41,0 | 55 | 55 | 28,5 | 52 | ADE 10 | CAP 506100 |
CAP 809 204 V1 | 2" | 42,0 | 53,0 | 72 | 72 | 29,2 | 60 | ADE 12 | CAP 506120 |
Metric | Thread | Cable Clamping Range mm (D) | A | B | E | L | Shroud | Shroud | |
|---|---|---|---|---|---|---|---|---|---|
CAP 806 594 V1 | M16 | 4,5 | 8,5 | 19 | 17 | 15 | 25 | ADE 4 | CAP 506040 |
CAP 806 674 V1 | M20 | 4,5 | 8,5 | 24 | 17 | 15 | 25 | ADE 4 | CAP 506040 |
CAP 806 694 V1 | M20 | 7,0 | 12,0 | 24 | 19 | 15 | 27,5 | ADE 5 | CAP 506050 |
CAP 806 604 V1 | M20 | 10,0 | 16,0 | 24 | 24 | 15 | 32 | ADE 6 | CAP 506060 |
CAP 806 774 V1 | M25 | 7,0 | 12,0 | 30 | 19 | 15 | 27,5 | ADE 5 | CAP 506050 |
CAP 806 794 V1 | M25 | 10,0 | 16,0 | 30 | 24 | 15 | 32 | ADE 6 | CAP 506060 |
CAP 806 704 V1 | M25 | 13,5 | 20,5 | 30 | 30 | 15 | 36,5 | ADE 7 | CAP 506070 |
CAP 806 804 V1 | M32 | 18,0 | 27,5 | 41 | 41 | 15 | 46 | ADE 8 | CAP 506080 |
CAP 806 904 V1 | M40 | 23,0 | 34,0 | 48 | 48 | 15 | 50 | ADE 9 | CAP 506090 |
CAP 807 004 V1 | M50 | 29,0 | 41,0 | 55 | 55 | 16 | 52 | ADE 10 | CAP 506100 |
