EX-PROOF CABLE GLANDS FOR UNARMOURED CABLE (BIMED)

BİMED click to view other products of the brand.

Product Code:EBU

E-Octans 1 function series Ex-proof unarmored metal cable glands are nickel plated over brass.

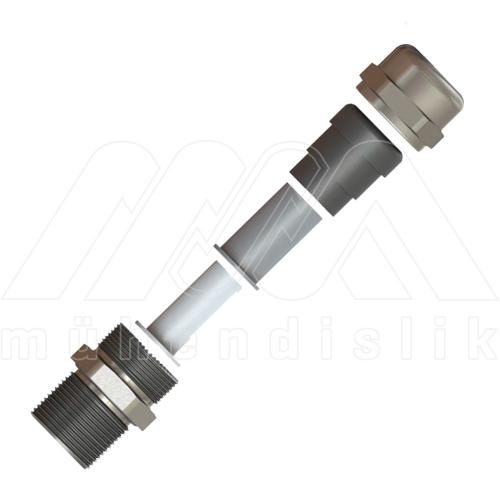

EBU... type Exproof cable glands have special Shroud, Earth Tags, Lock Nuts, Serrated Washers, Gaskets (Fiber / EPDM / Silicone) accessories. These accessories must be requested separately upon request.

File Name	File Size	Actions
EBU-DATA SHEET	202 KB	Download
EBU-ACCESSORY SET	660 KB	Download
EBU-ATEX	369 KB	Download
EBU-IECEx	372 KB	Download
EBU-EAC Click to View All EAC Certified Products	2971 KB	Download

GAS	II 2G Ex db/eb IIC Gb	IP66/IP68	Zone 1 - Zone 21 - Zone 2 - Zone 22
DUST	II 2D Ex tb IIIC Db	IP66/IP68	-60°C ÷ +80°C (Silicone rubber)	-40°C ÷ +80°C (Chloroprene rubber)

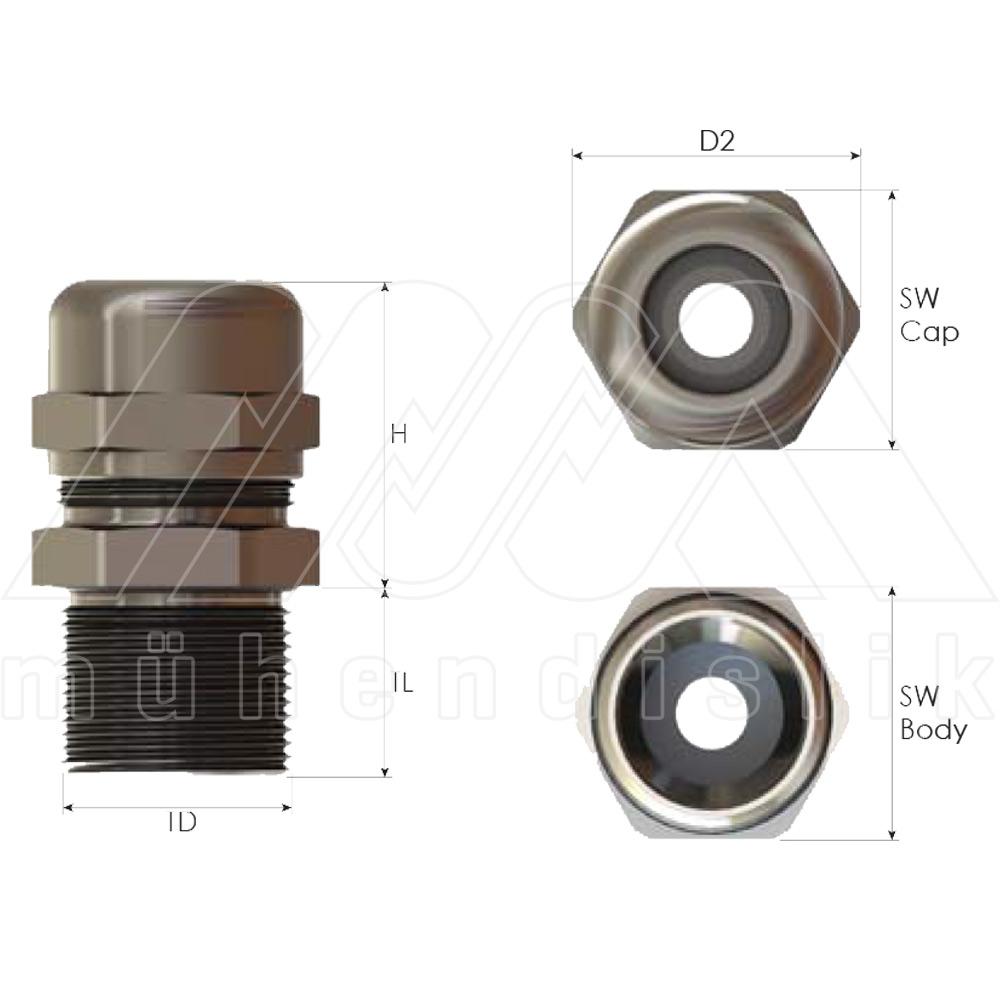

NPT Code	NPT Thread Size	Metric Code	Metrik Thread Size	Min. Ømm	Max. Ømm
EBU01SN	NPT 3/8"	EBU01SM	M16x1,5	3,0	9,0
EBU01N	NPT 3/8"	EBU01M	M16x1,5	4,0	12,0
EBU1SN	NPT 1/2"	EBU1SM	M20x1,5	3,0	9,0
EBU1N	NPT 1/2"	EBU1M	M20x1,5	4,0	12,0
EBU12N	NPT 1/2"	EBU12M	M20x1,5	10,0	16,0
EBU2SN	NPT 3/4"	EBU2SM	M25x1,5	4,0	12,0
EBU2N	NPT 3/4"	EBU2M	M25x1,5	10,0	18,0
EBU23N	NPT 3/4"	EBU23M	M25x1,5	14,0	20,0
EBU3SN	NPT 1"	EBU3SM	M32x1,5	10,0	18,0
EBU3N	NPT 1"	EBU3M	M32x1,5	14,0	24,0
EBU34N	NPT 1"	EBU34M	M32x1,5	22,0	26,0
EBU4SN	NPT 1 1/4"	EBU4SM	M40x1,5	14,0	24,0
EBU4N	NPT 1 1/4"	EBU4M	M40x1,5	22,0	32,0
EBU45N	NPT 1 1/4"	EBU45M	M40x1,5	26,0	34,0
EBU5SN	NPT 1 1/2"	EBU5SM	M50x1,5	22,0	32,0
EBU5N	NPT 1 1/2"	EBU5M	M50x1,5	26,0	35,0
EBU56N	NPT 1 1/2"	EBU56M	M50x1,5	35,0	41,0
EBU6SN	NPT 2"	EBU6SM	M63x1,5	26,0	35,0
EBU6N	NPT 2"	EBU6M	M63x1,5	35,0	45,0
EBU67N	NPT 2"	EBU67M	M63x1,5	46,0	52,0
EBU7SN	NPT 2 1/2"	EBU7SM	M75x1,5	35,0	45,0
EBU7N	NPT 2 1/2"	EBU7M	M75x1,5	46,0	62,0
EBU78N	NPT 2 1/2"	EBU78M	M75x1,5	60,0	64,0
EBU8SN	NPT 3"	EBU8SM	M90x1,5	46,0	62,0
EBU8N	NPT 3"	EBU8M	M90x1,5	60,0	75,0
EBU810N	NPT 3"	EBU810M	M90x1,5	75,0	79,5
