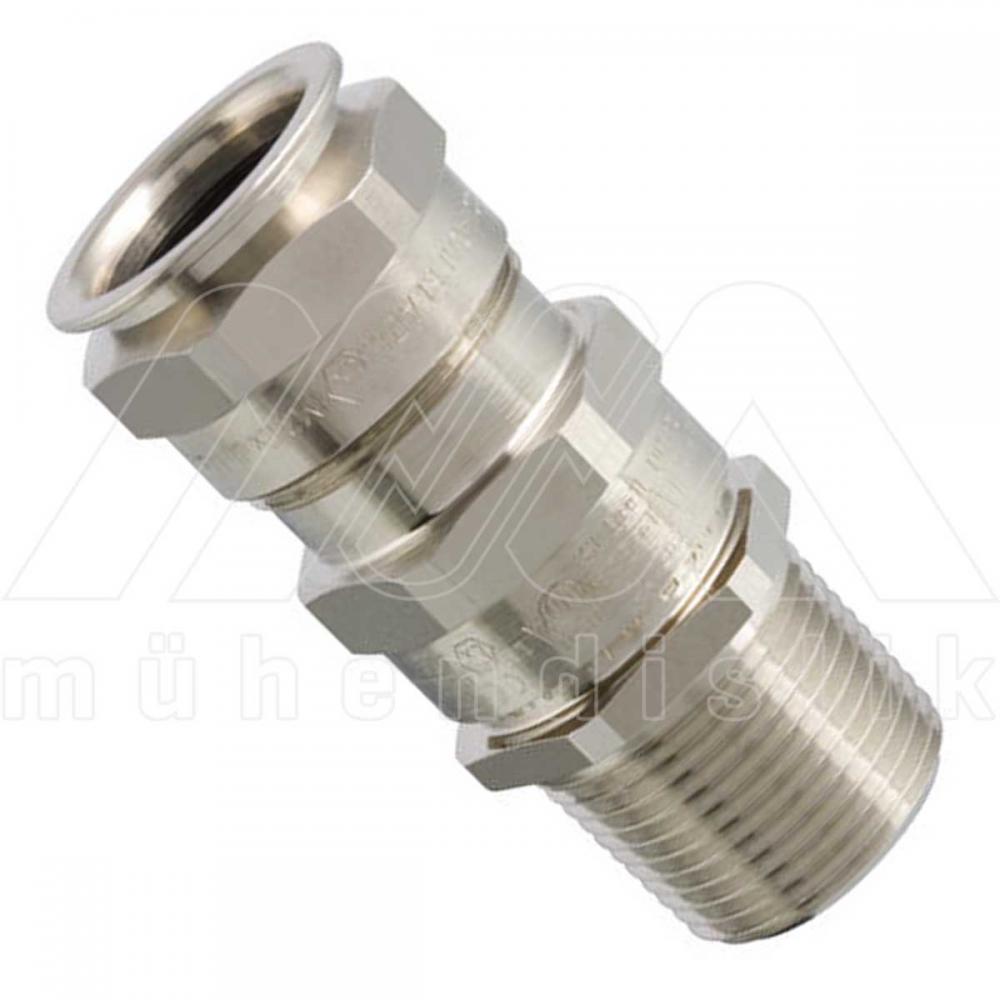

EXPROOF CABLE GLANDS FOR ARMOURED CABLE – ADE 4F TYPE (EATON)
Product Code:ADE 4F
- ADE 4F model cable glands are nickel plated over brass.
- Suitable for use for armored type cables.

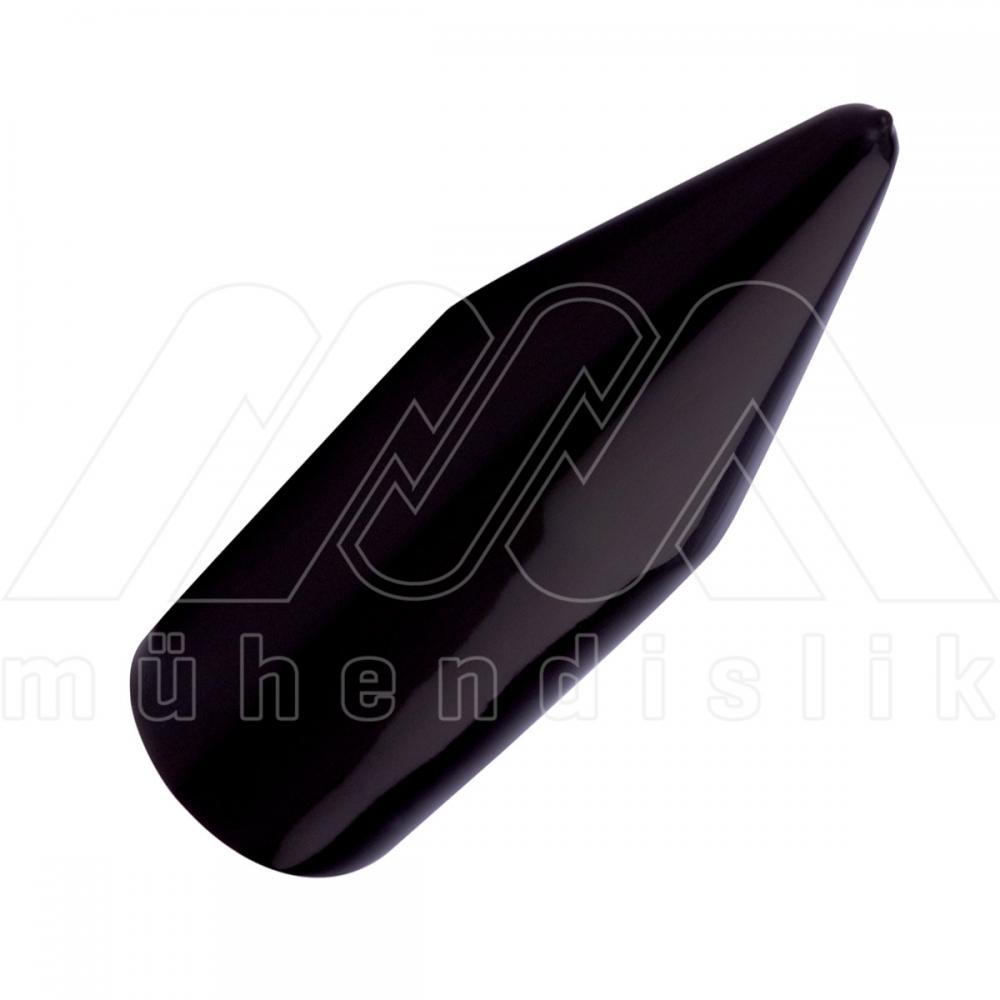

- PVC sheath, locking nut and earth tags can be given extra if desired.
Description
GAS | I M2 Ex db/eb I Mb - II 2G Ex db/eb IIC | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2D Ex tb IIIC | IP66 | -30°C ÷ +80°C | -60°C ÷ +140°C |

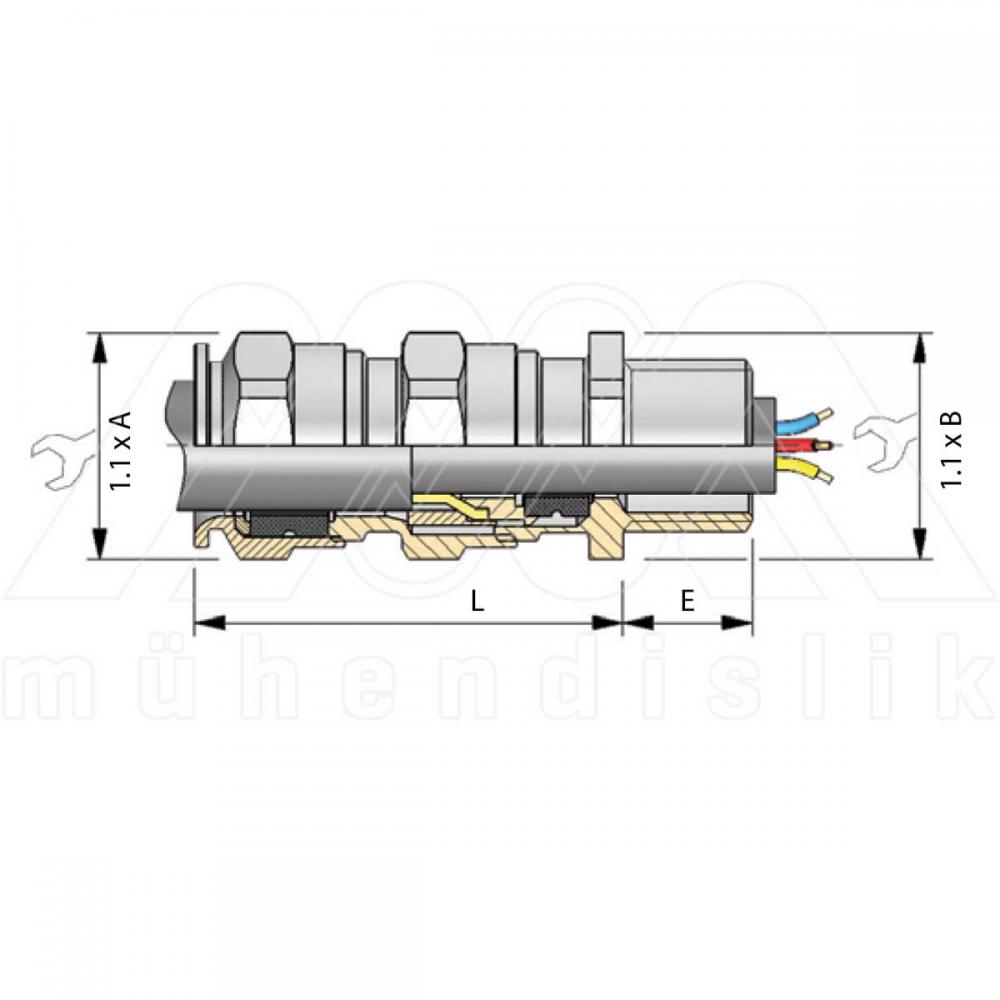

NPT | Thread | Cable Clamping Range mm (D) | A | B | E | L | Shroud | Shroud | |
|---|---|---|---|---|---|---|---|---|---|
CAP 848 674 V1 | ½" | 4,50-8,50 | 7,0-12,0 | 19 | 24 | 22,2 | 46,0 | ADE 5 | CAP 506050 |
CAP 848 694 V1 | ½" | 7,0-12,0 | 10,0-16,0 | 24 | 24 | 22,2 | 51,0 | ADE 6 | CAP 506060 |
CAP 848 604 V1 | ½" | 10,0-15,5 | 13,5-21,0 | 30 | 30 | 22,2 | 57,5 | ADE 7 | CAP 506070 |
CAP 848 774 V1 | ¾" | 7,0-12,0 | 10,0-16,0 | 24 | 30 | 22,5 | 51,0 | ADE 6 | CAP 506060 |
CAP 848 794 V1 | ¾" | 10,0-15,5 | 13,5-21,0 | 30 | 30 | 22,5 | 57,5 | ADE 7 | CAP 506070 |
CAP 848 704 V1 | ¾" | 13,5-20,5 | 18,0-27,5 | 41 | 41 | 22,5 | 68,0 | ADE 8 | CAP 506080 |
CAP 848 894 V1 | 1" | 13,5-21,0 | 18,0-27,5 | 41 | 41 | 27,3 | 68,0 | ADE 8 | CAP 506080 |
CAP 848 904 V1 | 1 ¼" | 23,0-34,0 | 29,0-41,0 | 55 | 55 | 28 | 88,0 | ADE 10 | CAP 506100 |
CAP 849 094 V1 | 1 ½" | 23,0-34,0 | 29,0-41,0 | 55 | 55 | 28,5 | 88,0 | ADE 10 | CAP 506100 |
CAP 849 294 V1 | 2" | 35,0-48,0 | 42,0-56,0 | 72 | 72 | 29,2 | 102,0 | ADE 12 | CAP 506120 |
Metric | Thread | Cable Clamping Range mm (D) | A | B | E | L | Shroud | Shroud | |
|---|---|---|---|---|---|---|---|---|---|
CAP 846 504 V1 | M16 | 7,0-12,0 | 10,0-16,0 | 19 | 24 | 15 | 51,0 | ADE 6 | CAP 506060 |
CAP 846 674 V1 | M20 | 4,50-8,50 | 7,0-12,0 | 19 | 24 | 15 | 46,0 | ADE 5 | CAP 506050 |
CAP 846 694 V1 | M20 | 7,0-12,0 | 10,0-16,0 | 24 | 24 | 15 | 51,0 | ADE 6 | CAP 506060 |
CAP 846 604 V1 | M20 | 10,0-15,5 | 13,5-21,0 | 30 | 30 | 15 | 57,5 | ADE 7 | CAP 506070 |
CAP 846 774 V1 | M25 | 7,0-12,0 | 10,0-16,0 | 24 | 30 | 15 | 51,0 | ADE 6 | CAP 506060 |
CAP 846 794 V1 | M25 | 10,0-15,5 | 13,5-21,0 | 30 | 30 | 15 | 57,5 | ADE 7 | CAP 506070 |
CAP 846 704 V1 | M25 | 13,5-20,5 | 18,0-27,5 | 41 | 41 | 15 | 68,0 | ADE 8 | CAP 506080 |
CAP 846 894 V1 | M32 | 13,5-21,0 | 18,0-27,5 | 41 | 41 | 15 | 68,0 | ADE 8 | CAP 506080 |
CAP 846 994 V1 | M40 | 18,0-27,5 | 23,0-34,0 | 48 | 48 | 15 | 76,0 | ADE 9 | CAP 506090 |
CAP 847 094 V1 | M50 | 23,0-34,0 | 29,0-41,0 | 55 | 55 | 16 | 88,0 | ADE 10 | CAP 506100 |
CAP 847 294 V1 | M63 | 35,0-48,0 | 42,0-56,0 | 72 | 72 | 17 | 102,0 | ADE 12 | CAP 506120 |
