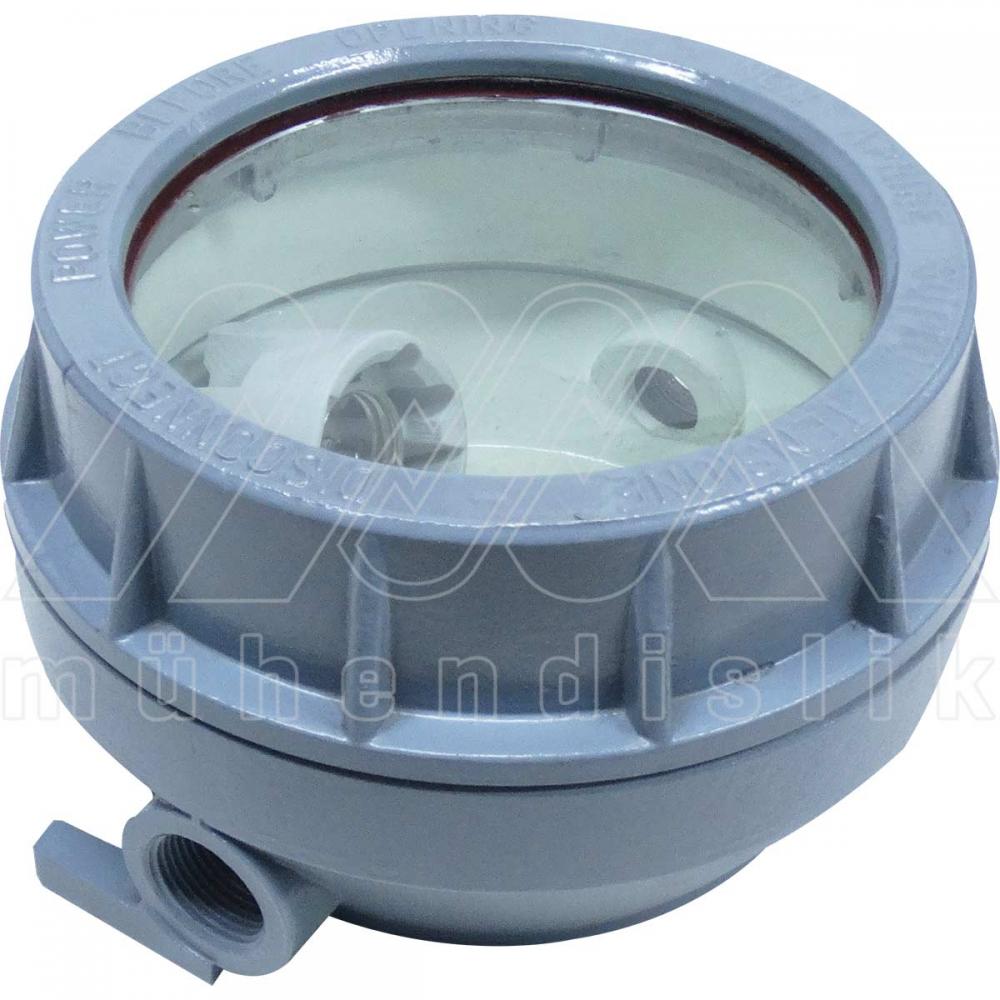

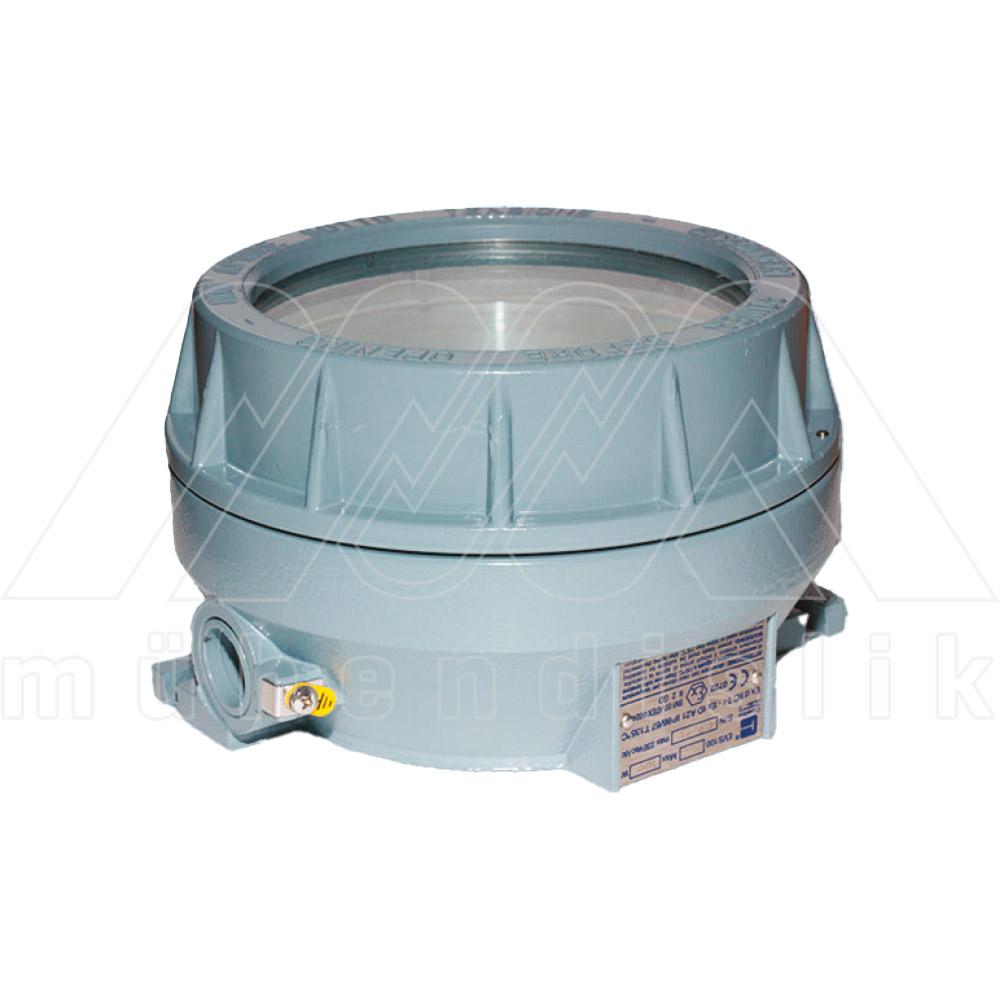

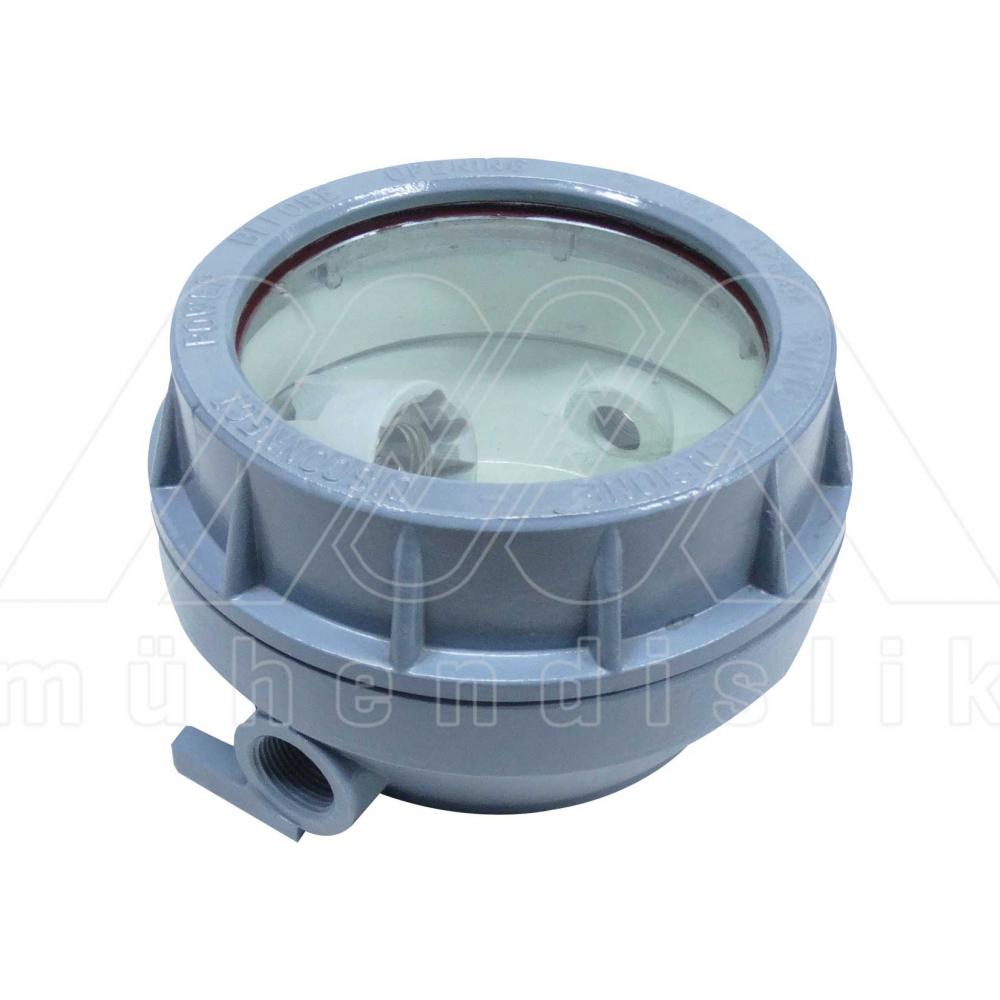

EX-PROOF TANK LIGHTING FIXTURE (COELBO)
Product Code:EVS
EVS series lighting fixtures are Aluminum light alloy housing.
E27 holder, RAL7000 is gray.

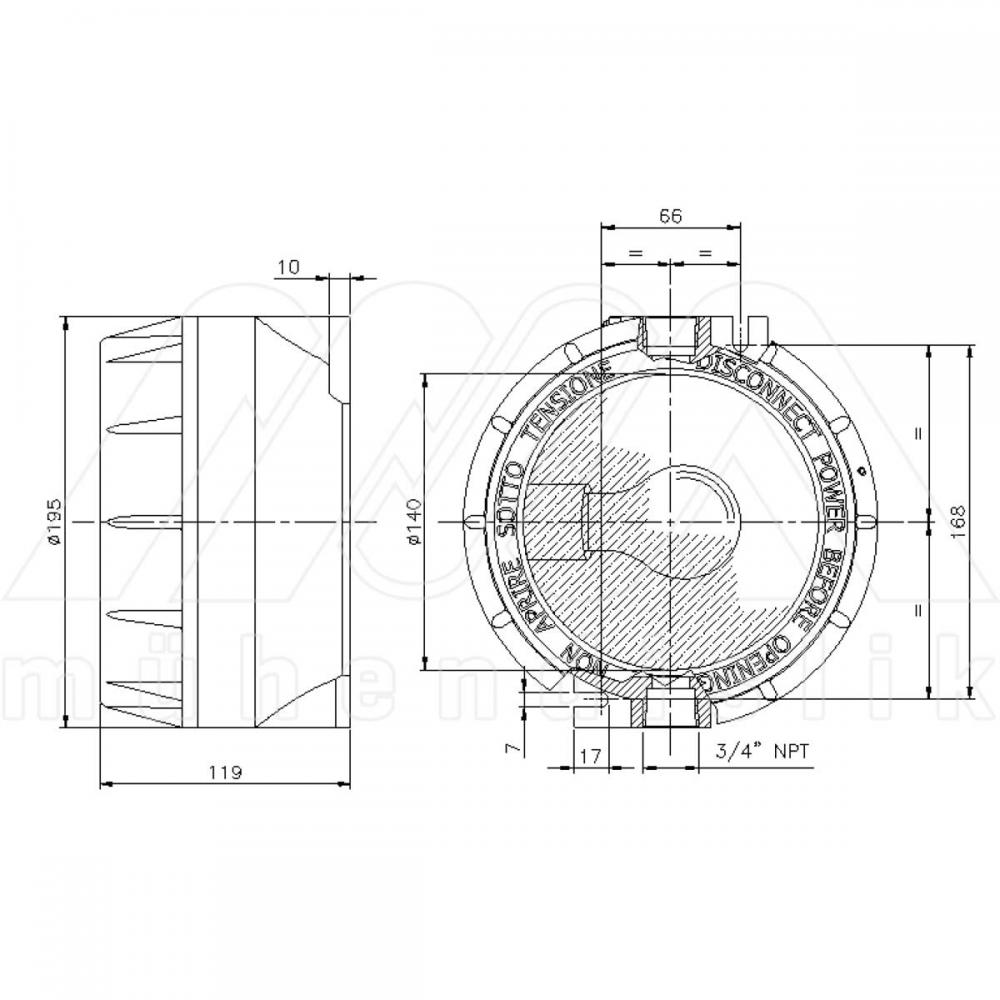

Glass Diameter Ø140mm.
2x¾"input. (NPT ANSI B1. 20)
Max power = 70 W (100 W).
Max voltage = 240 V AC.
External screws in Stainless Steel AISI 316.
Weight: 2.8 kg.
Description
GAS | II2G Ex db IIC T6÷T3 Gb | IP66 / IP67 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II2D Ex tb IIIC T85°C ÷ T200°C Db | IP66 / IP67 | -20°C ÷ +40°C | -50°C ÷ +80°C |
HALOGEN < 70 W | ENERGY SAVING LAMP / LED | ||||
Temperature | Max. Surface | Ambient | Temperature | Max. Surface | Ambient |
T3 | T200°C | -50°C ÷ +80°C | T6 | T85°C | -50°C ÷ +50°C |
