EX-PROOF INSTRUMENT HOUSINGS (CORTEM)
Product Code:EMHA-9

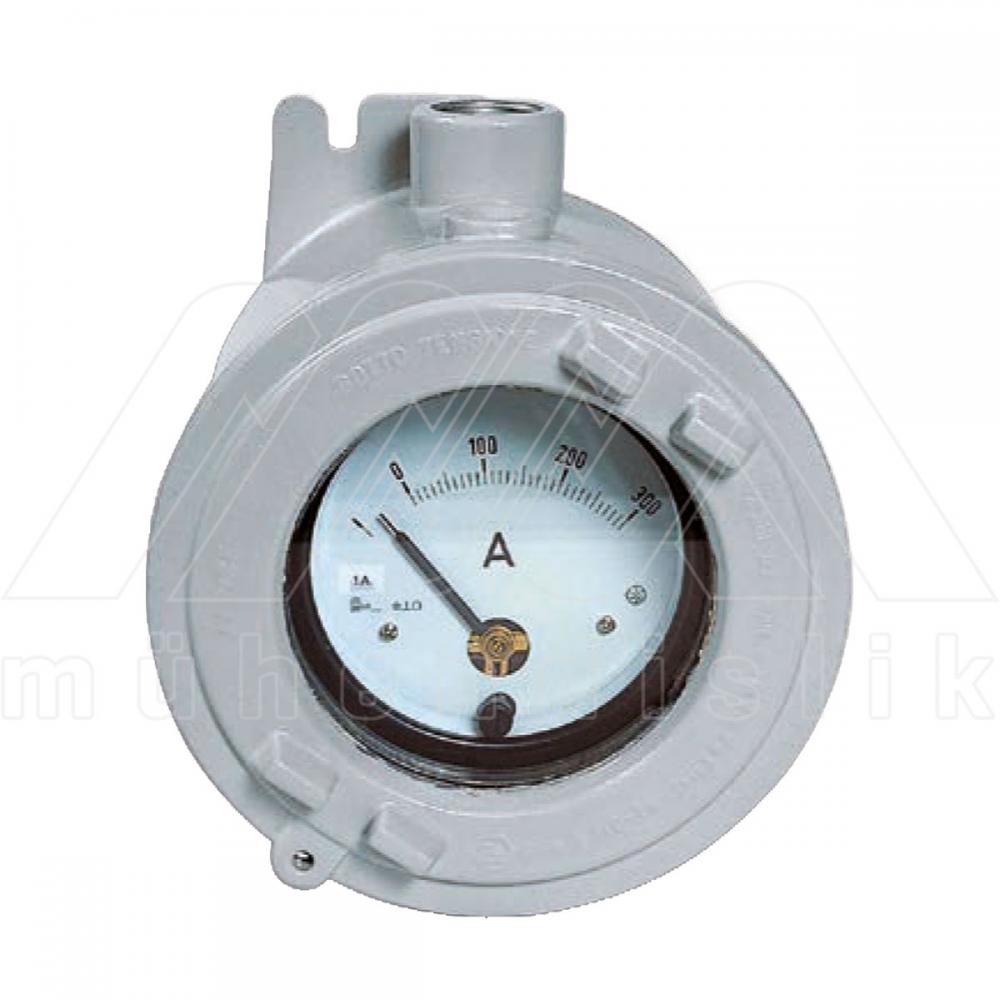

- EMHA-9 instrument housings are normally used to contain medium-sized analogue instruments such as ammeters and voltmeters.

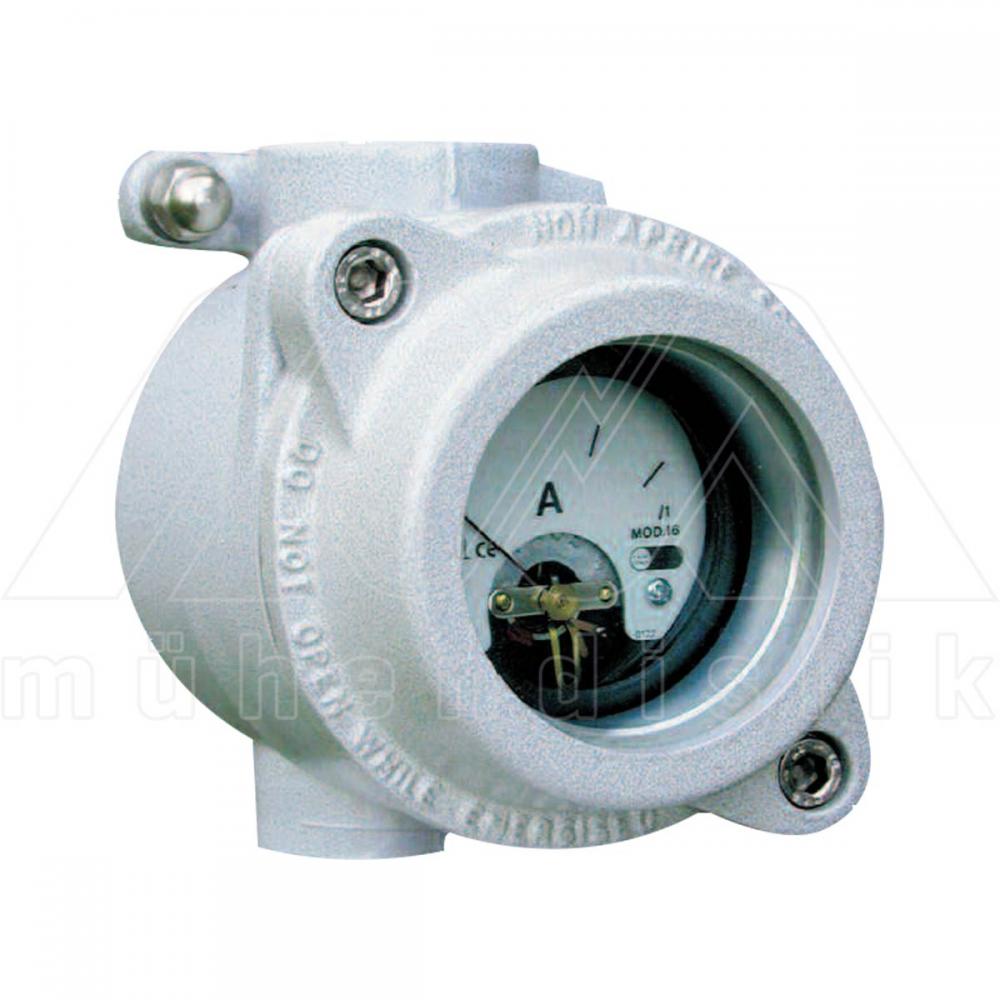

- CSC-H instrument housings are normally used to contain small-sized analogue instruments such as ammeters and voltmeters.
- Coating: Polyester RAL 7035 (Light grey)
Description
GAS | II2G Ex d IIC T5/T6 Gb | IP66 | Zone 1- Zone 21- Zone 2- Zone 22 | |
DUST | II2D Ex tb IIIC T85°C / T100°C Db | IP66 | CESI-01-ATEX-092x | IECEx-CES-17.0001x |
Code No | Input Thread Size | Glass Size | U.Weight (kg) |
|---|---|---|---|

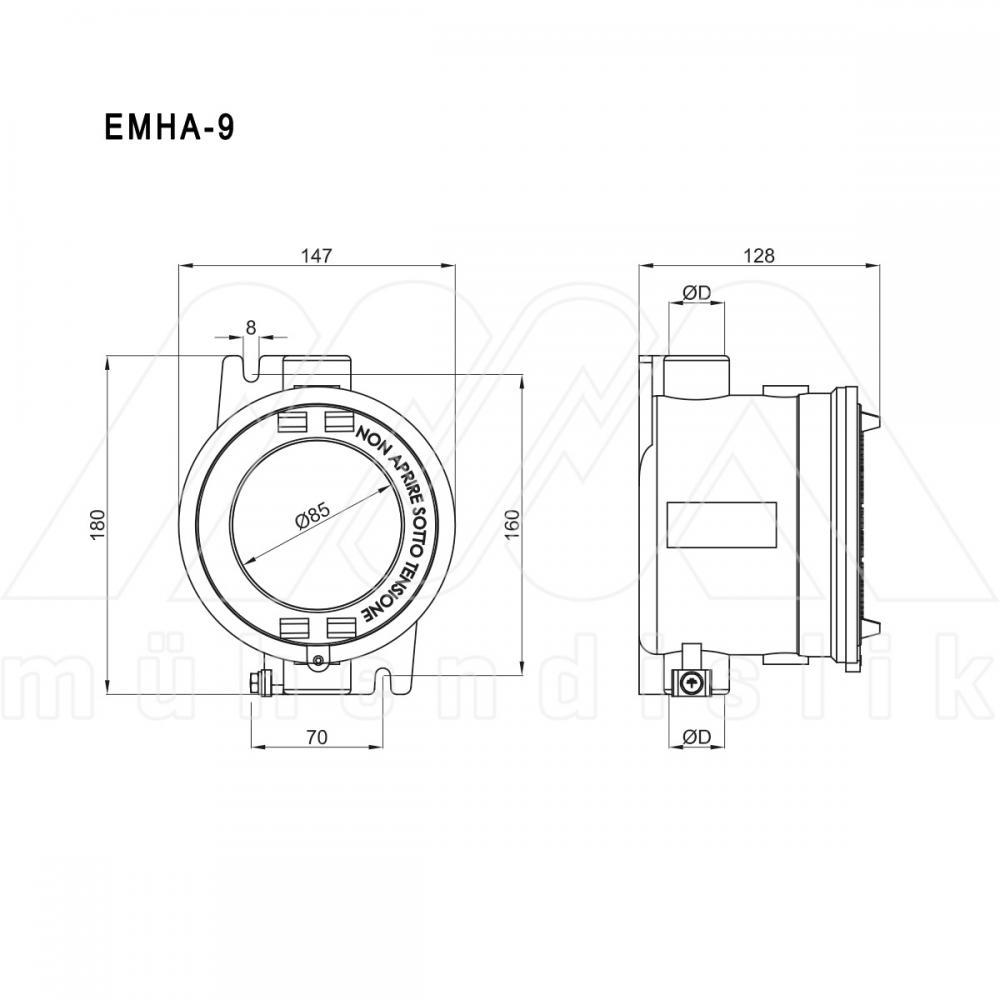

EMHA-9 | 2x3/4” ISO7/1 | Ø85 mm | 1,88 |
EMHA-9N | 2x3/4” NPT | Ø85 mm | 1,88 |
Code No | Input Thread Size | Glass Size | U.Weight (kg) |
|---|---|---|---|

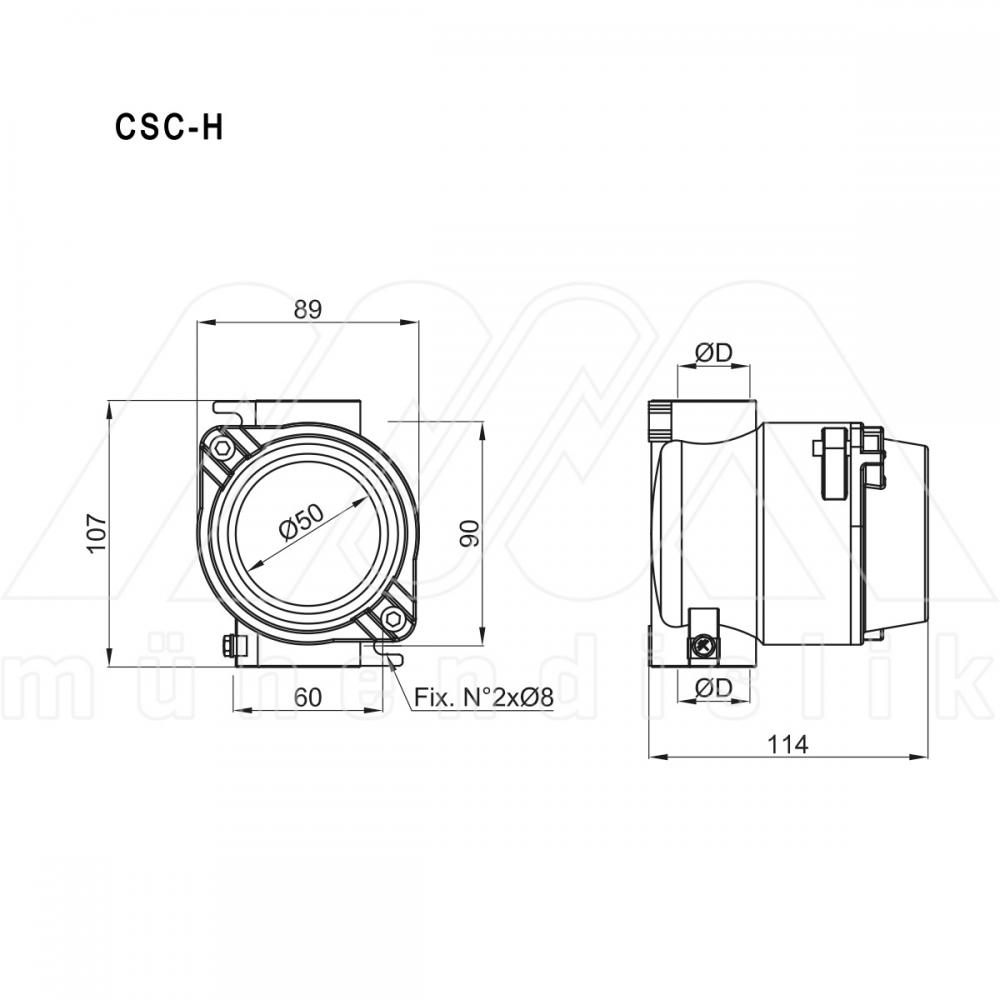

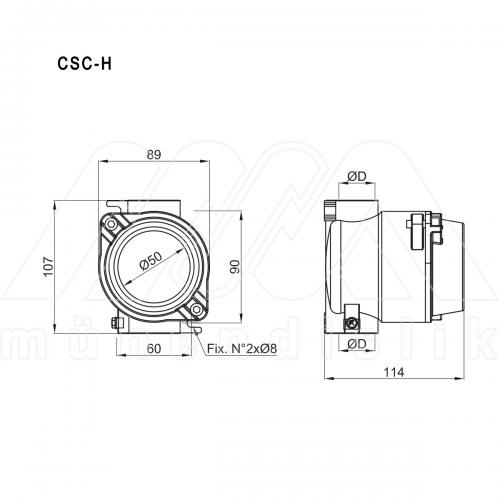

CSC-H | 2x1” ISO7/1 | Ø52 mm | 0,75 |
CSC-HN | 2x1” NPT | Ø52 mm | 0,75 |
