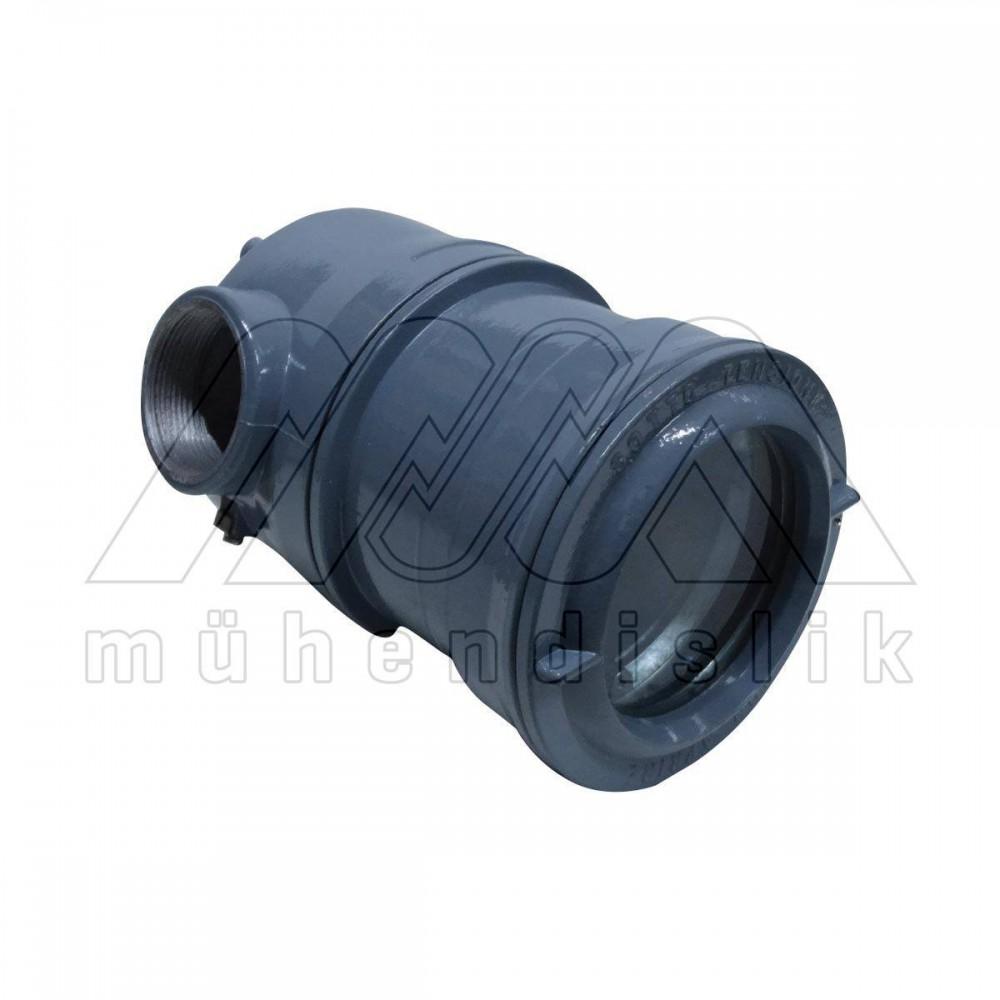

EQUIPMENT BOX WITH EX-PROOF GLASS-SOB 69 (COELBO)
Product Code:SOB-69
SOB 69/155 EX-PROOF GLAZED EQUIPMENT BOX.
1x2" side and 1x2" bottom 2x2 " input.
The inlet holes can be changed to the desired dimensions with ex reduction.
Description
GAS | II2G Ex d IIC T6÷T4 Gb | IP66 / IP67 | Zone 1- Zone 21- Zone 2- Zone 22 | ||
DUST | II2D Ex tb IIIC T85°C÷T135°C Db | IP66 / IP67 | -20°C ÷ +50°C | -40°C ÷ +85°C | |

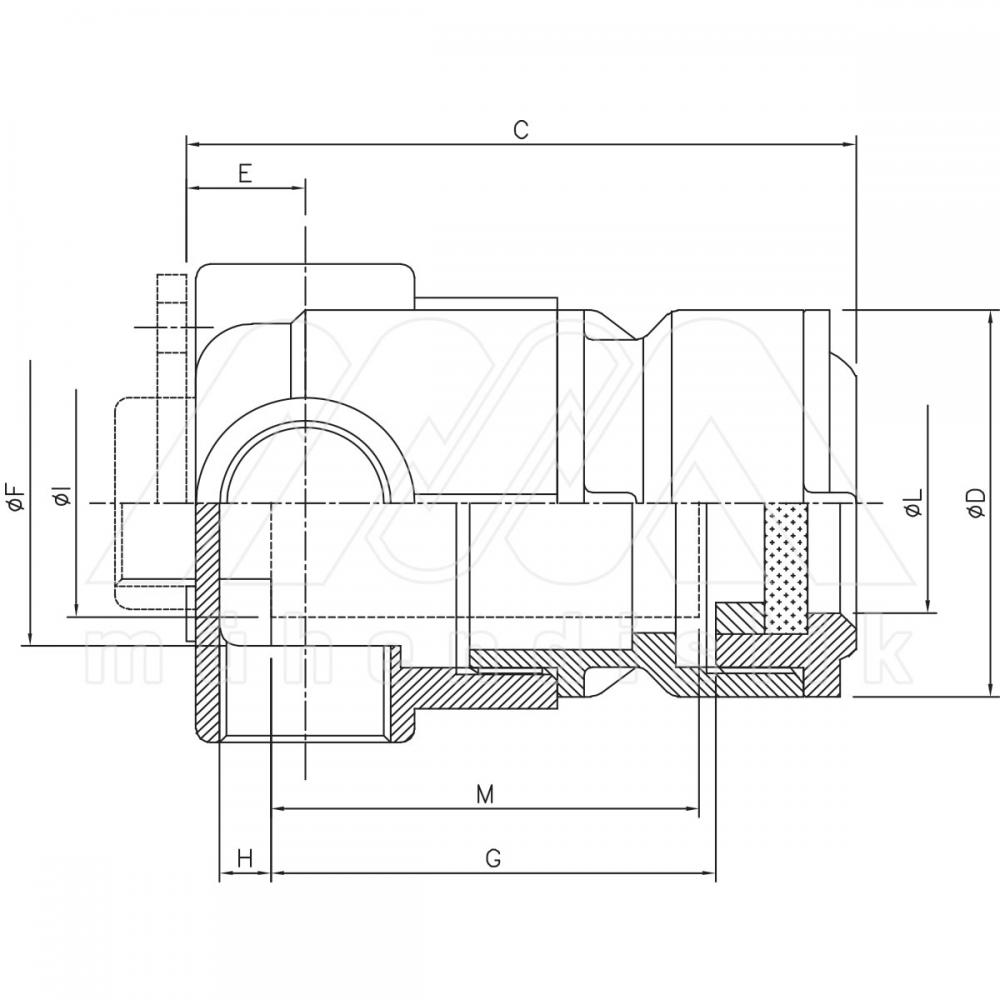

Code No | B | C | ØD | E | ØF | G | H | ØI | M | ØL |
|---|---|---|---|---|---|---|---|---|---|---|
SOB.69/155 | 83 | 104/165/205 | 145 | 36 | 112 | 54/115/155 | 9 | 106 | 52/113/153 | 96 |
