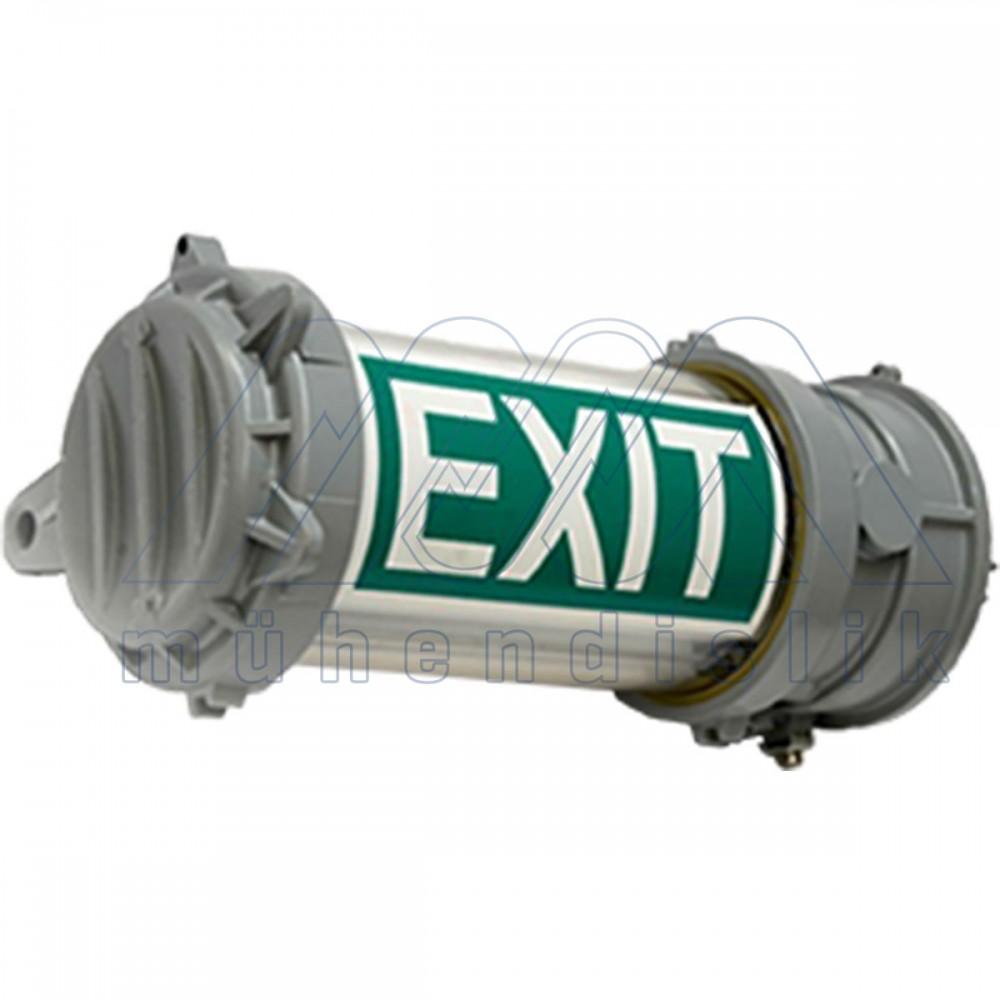

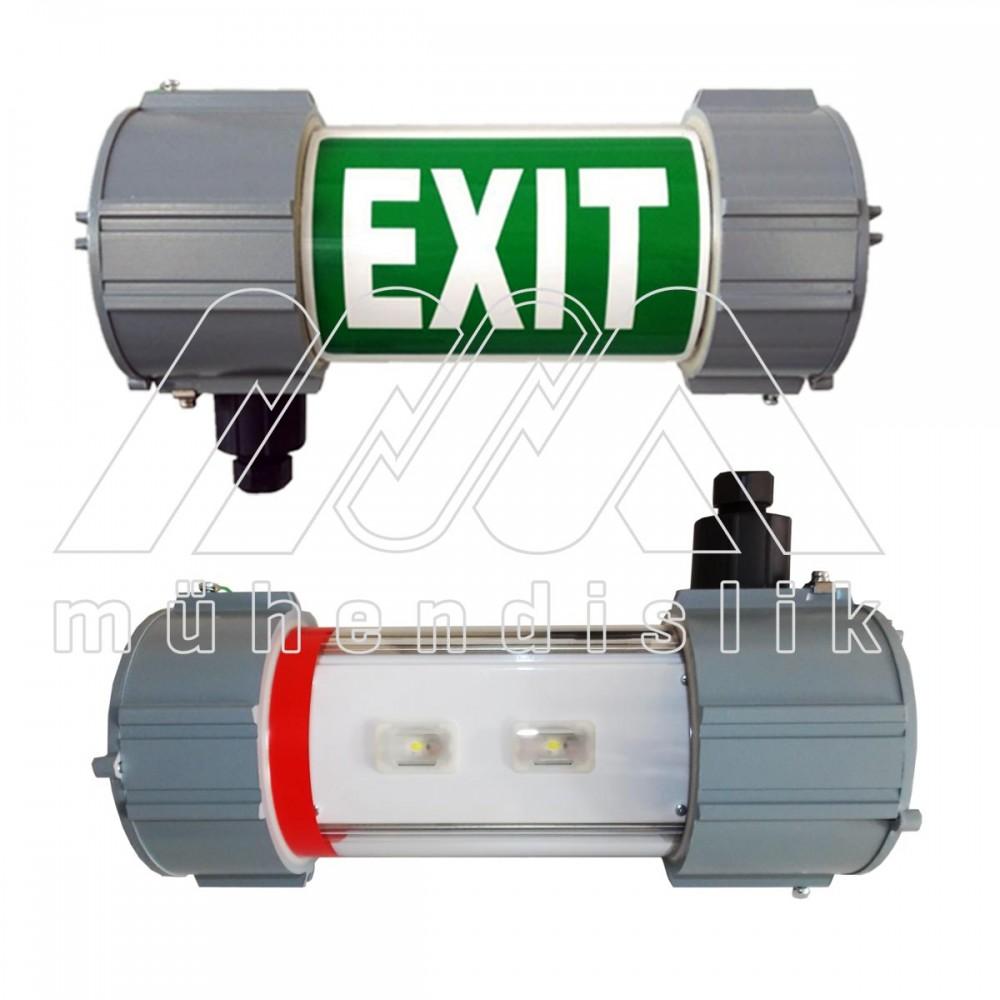

EX-PROOF EMERGENCY LED COMPACT FIXTURE - (TEPEX)
Product Code:FLXE 118 LED
- FLXE 118 led type Tepex brand ex-proof lighting fixtures are Aluminum Cast body.
- FLXE 118 led type Ex-proof compact fluorescent fixture 5W mains supply operation, 2W battery operation.
- Because the FLXE 118 Type fixtures are small in size, they provide an economical and easy installation advantage.
- FLXE type fluorescent armature on 2 pc. M20x1,5 input holes are available.
- The ex-proof lighting fixture is standard wall type and comes with mounting legs. It can also be used as a ceiling type if desired.
Files
| File Name | File Size | Actions |
|---|---|---|
| FLXE-DATA SHEET | 561 KB | Download |
| FLXE-ATEX | 171 KB | Download |
| FLXE-EAC Click to View All EAC Certified Products | 1100 KB | Download |
| FLXE-USER'S GUIDE | 1117 KB | Download |
Description
GAS | II2G Ex db eb op is IIC T6 Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
|---|---|---|---|---|
DUST | II2D Ex tb op is IIIC T80°C Db | IP66 | -20°C ÷ +40°C | -20°C ÷ +50°C |
Code No | Lümen | Battery Time | Voltage | U.Weight |
|---|---|---|---|---|
FLXE 118 LED | 200lm / 400lm | 180 min. | 220-240 V (24V, 110V on request) | 4,0 |
