DMTB-20RP

• (ELECTRONIC CIRCUIT)

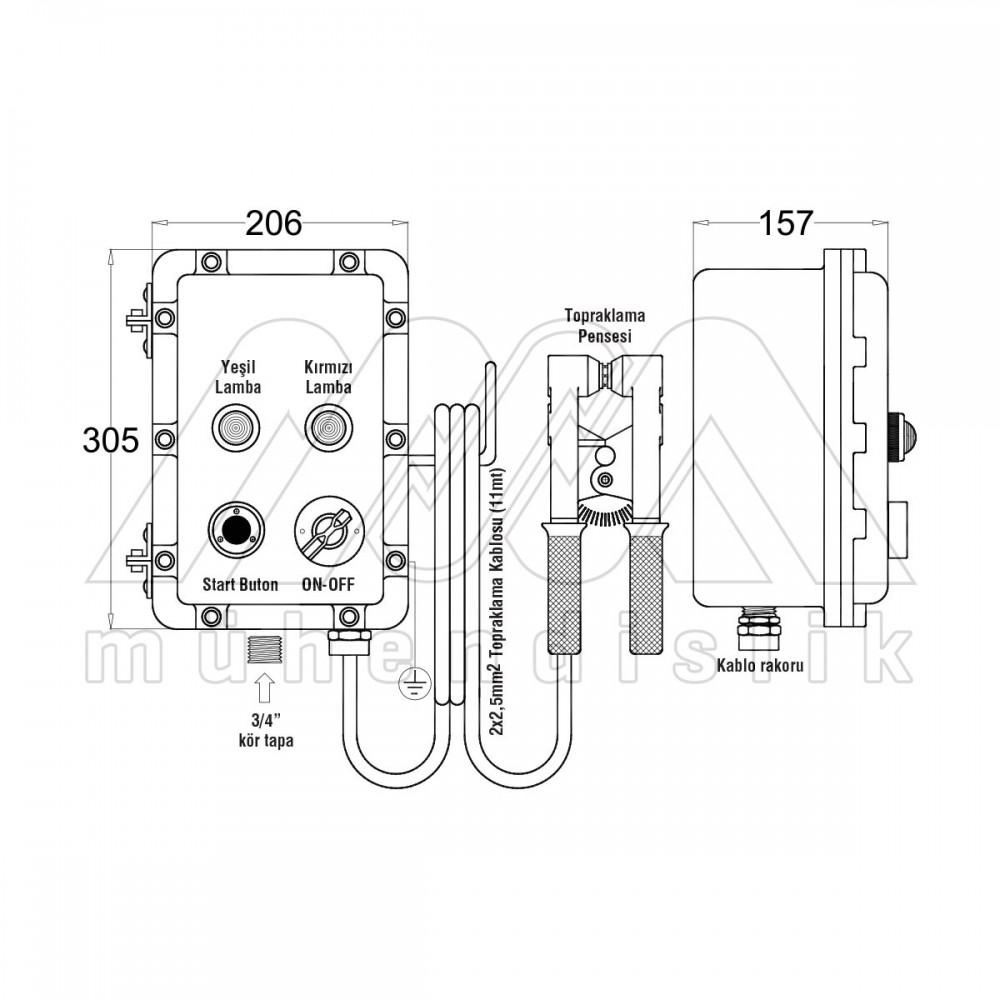

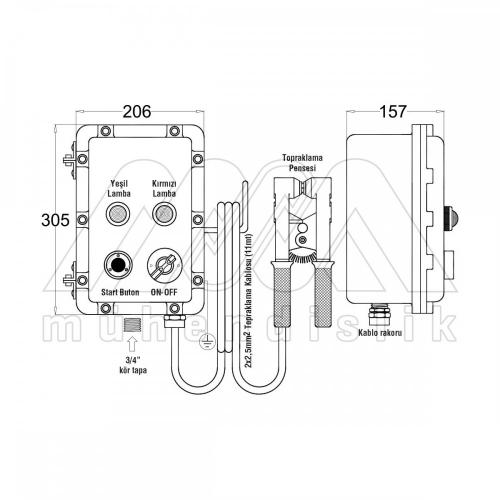

• 1 Piece EJB 1076 Ex-Contact box ( 305x206x157 mm)
• On the cover;
• 1 x Start button, 1 x Red signal,
• 1 x Green signal lamp, 1 x 0-1 position switch,
• 3xR3/4" bottom inlet,

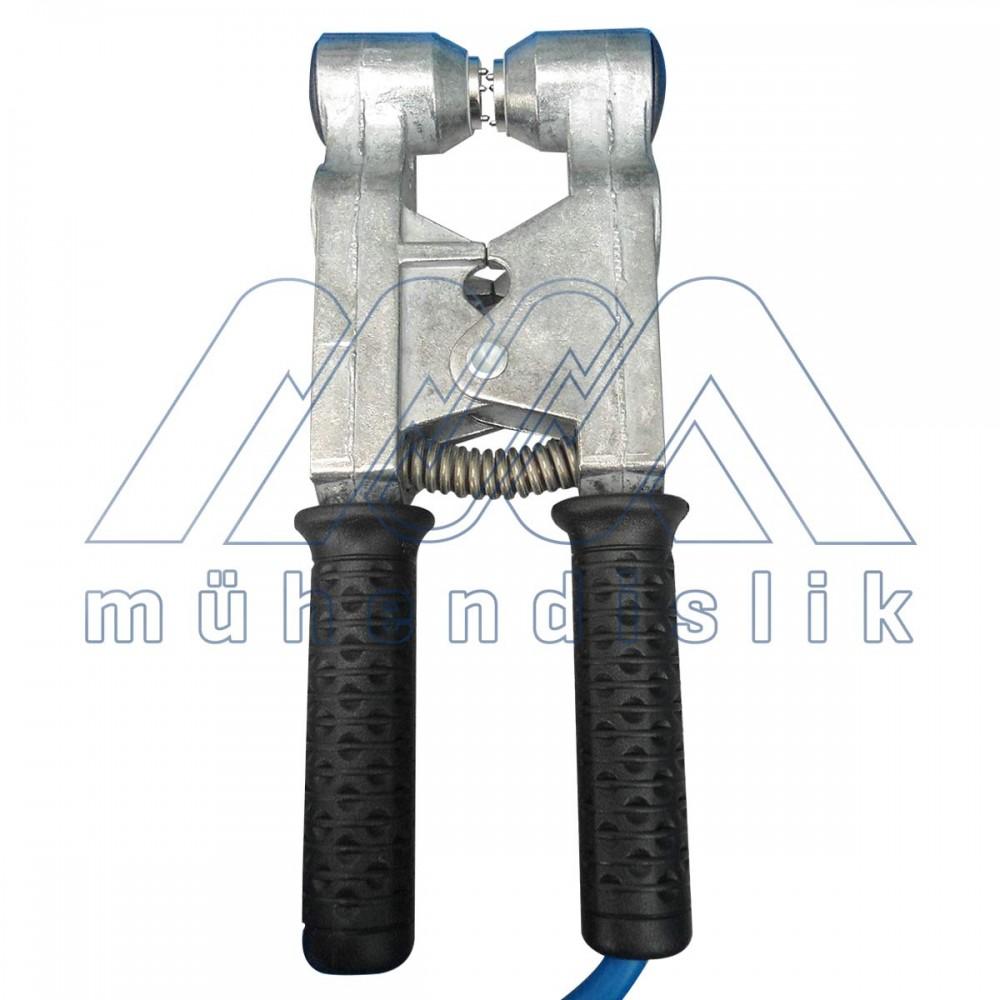

• 1 x Ex-Proof pliers,
• The pliers are mounted on the device with 11 meters of 2x2.5 mm² special cable.
• 1 x PLG 2 ¾" Ex-Blind Plug included.
• 250V - 50/60Hz, 5A
• Protection Class: CEC -10ATEX 036 - EEx d IIB +H2 T4…T6 - II2GD - IP 65
• DMT 20/3 GROUNDING PLIERS
• DMT 20/4 GROUND CABLE 2x2,5mm2
