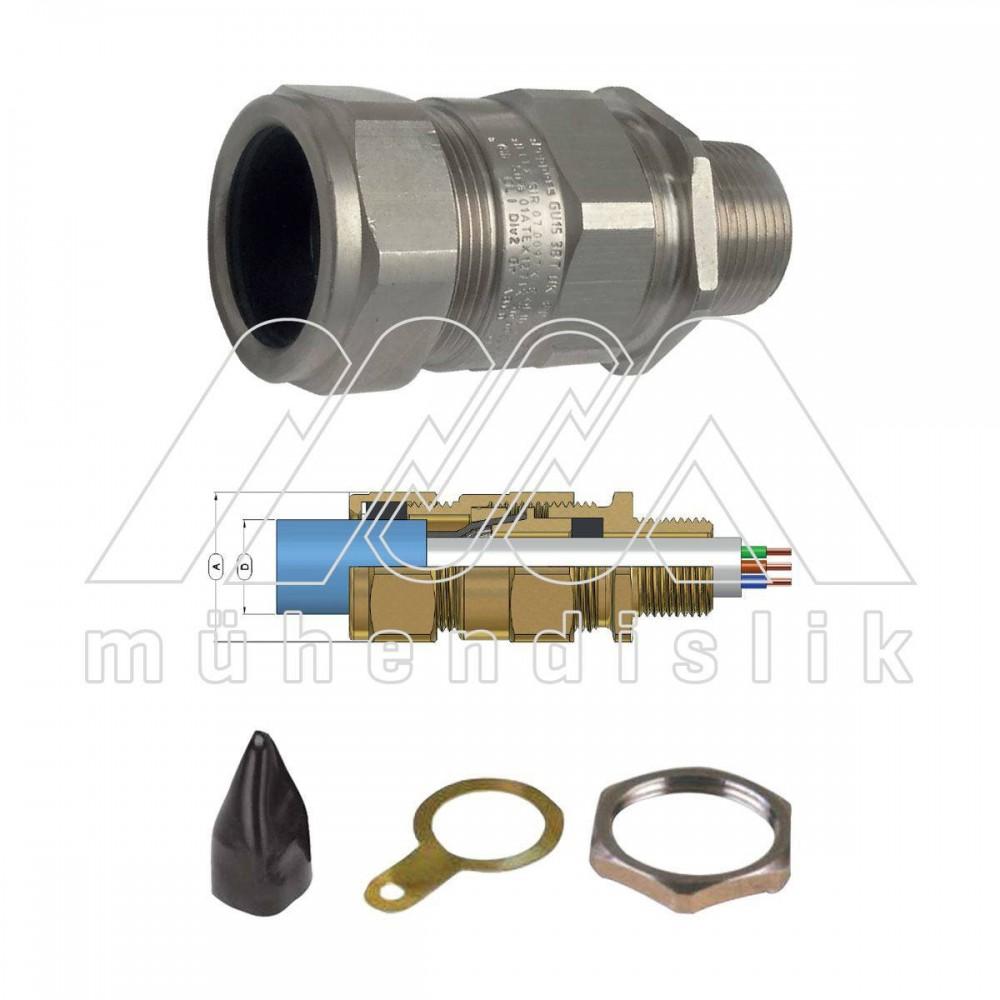

EX-PROOF CABLE GLANDS FOR ARMOURED CABLE (PEPPERS)
Product Code:E1WF
- E1WF type ex-proof armored metal cable fittings are nickel plated over brass.
- E1WF type ex-proof armored metal cable glands have their own rubber sleeve, ground washer and locking nut. These accessories should be requested separately according to the request.
Description
| GAS | II 2G Ex db/eb IIC Gb | IP66 / IP68 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
|---|---|---|---|---|
| DUST | II 1D Ex ta IIIC Da | IP66 / IP68 | -60°C ÷ +180°C (Silicone) | -35°C ÷ +90°C (Neoprene) |
Metric Code No | Metric Size | NPT Code No | NPT Size | Inner Sheath | Outer Sheath | U.Weight (kg) | Shroud |
|---|---|---|---|---|---|---|---|
E1WF/NP/16/M20 | M20x1,5 | E1WF/NP/16/1/2" | 1/2" | 3,5-8,4 | 8,4-13,5 | 0,154 | L24 |
E1WF/NP/20s/M20 | M20x1,5 | E1WF/NP/20s/1/2" | 1/2" | 8,0-11,7 | 11,5-16,0 | 0,125 | L24 |
E1WF/NP/20/M20 | M20x1,5 | E1WF/NP/20/3/4" | 3/4" | 6,7-14,0 | 15,5-21,1 | 0,180 | L30 |
E1WF/NP/25/M25 | M25x1,5 | E1WF/NP/25/3/4" | 3/4"-1" | 13,0-20,0 | 20,3-27,4 | 0,256 | L38 |
E1WF/NP/32/M32 | M32x1,5 | E1WF/NP/32/1" | 1" | 19,0-26,3 | 26,7-34,0 | 0,400 | L46 |
E1WF/NP/40/M40 | M40x1,5 | E1WF/NP/40/1 1/2" | 1 1/2" | 25,0-32,2 | 33,0-40,6 | 0,649 | L55 |
E1WF/NP/50s/M50 | M50x1,5 | E1WF/NP/50s/1 1/2" | 1 1/2" | 31,5-38,2 | 39,4-46,7 | 0,940 | L65 |
E1WF/NP/50/M50 | M50x1,5 | E1WF/NP/50/2" | 2" | 36,5-44,1 | 45,7-53,2 | 0,707 | L65 |
E1WF/NP/63s/M63 | M63x1,5 | E1WF/NP/63s/2" | 2" | 42,5-50,1 | 52,1-59,5 | 1,369 | L80 |
E1WF/NP/63/M63 | M63x1,5 | E1WF/NP/63/2 1/2" | 2 1/2" | 49,5-56,0 | 58,4-65,8 | 1,123 | L80 |
E1WF/NP/75s/M75 | M75x1,5 | E1WF/NP/75s/3" | 3" | 54,5-62,0 | 64,8,72,2 | 1,661 | L90 |
E1WF/NP/75/M75 | M75x1,5 | E1WF/NP/75/3" | 3" | 60,5-68,0 | 71,1-78,0 | 1,310 | L90 |
