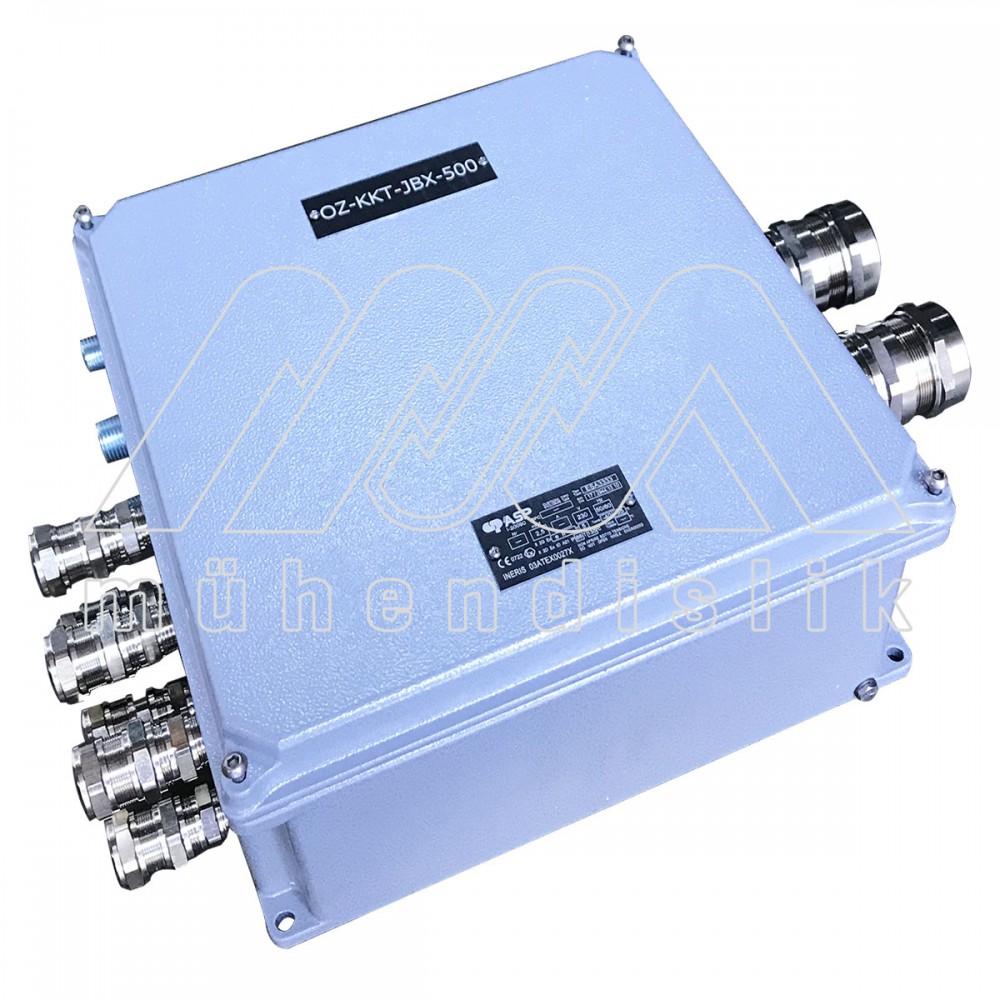

EXPROOF TERMINAL BOX (BARTEC-NASP)
Product Code:ESA1
- ESA type Exproof terminal boxes are manufactured from thin aluminum material.
- Terminal blocks used in it must have an Ex property.
- Teeth can be drilled or holes can be drilled as desired.
Files
| File Name | File Size | Actions |
|---|---|---|
| ESA-DATA SHEET | 680 KB | Download |
| ESA-ATEX | 3019 KB | Download |
| ESA-IECEx | 1547 KB | Download |
| ESA-EAC Click to View All EAC Certified Products | 1645 KB | Download |
Description
GAS | II2G Ex ia IIB/IIC T4 | IP66 | Zone 1- Zone 21- Zone 2- Zone 22 | ||
DUST | II2D Ex e (ia) IIB/IIC T135°C Db | IP66 | -40°C ÷ +55°C | -40°C ÷ +85°C | |

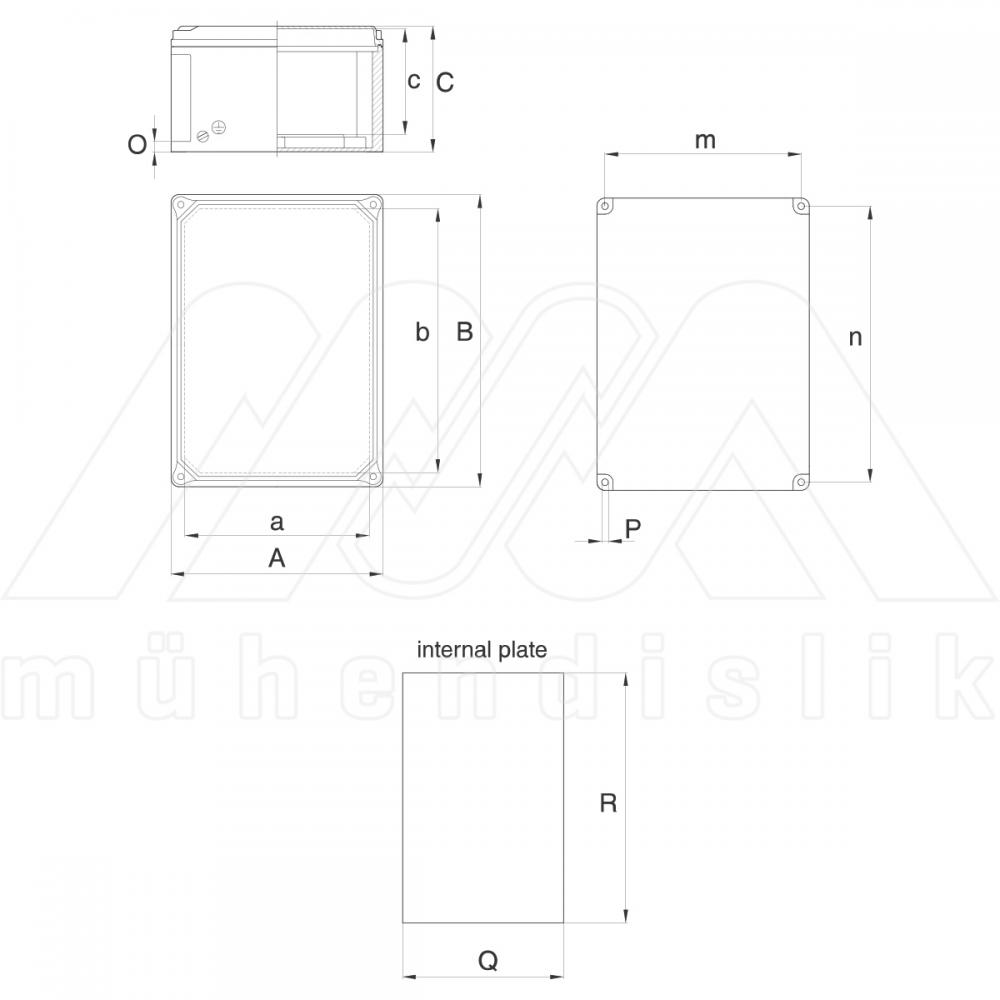

Code No | A (mm) | B (mm) | C (mm) | a (mm) | b (mm) | c (mm) | m (mm) | n (mm) | U.Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
ESA1313 | 130 | 130 | 85,5 | 114 | 114 | 70 | 115 | 115 | 0.900 |
ESA1717 | 170 | 170 | 95,5 | 154 | 154 | 80 | 155 | 155 | 1.405 |
ESA2216 | 160 | 220 | 95,5 | 144 | 204 | 80 | 145 | 205 | 1.655 |
ESA2222 | 220 | 220 | 110,5 | 204 | 204 | 95 | 205 | 205 | 2.455 |
ESA3322 | 222 | 332 | 121,5 | 206 | 316 | 104 | 202 | 312 | 3.855 |
ESA3333 | 332 | 332 | 133,0 | 315 | 315 | 113 | 312 | 312 | 5.455 |
ESA4433 | 332 | 443 | 152,5 | 317 | 427 | 130 | 315 | 425 | 7.555 |
ESA5242 | 424 | 524 | 182,0 | 406 | 506 | 161 | 396 | 496 | 11.425 |
ESA6348 | 480 | 630 | 180,0 | 465 | 615 | 135 | 465 | 610 | 22.455 |
