EXPROOF LIGHTING FIXTURES (BARTEC-FEAM)
Product Code:EVAC
- EVAC series Exproof lighting fixtures are aluminum cast housing, borosilicade glass.
- 2x3/4" Inlet and blind plug inlets.
- Wire Guard and reflector can be provided upon request.
Files
| File Name | File Size | Actions |
|---|---|---|
| EVAC-DATA SHEET | 1897 KB | Download |
| EVAC_ATEX | 7991 KB | Download |
| EVAC_IECEx | 5578 KB | Download |
| EVAC_EAC Click to View All EAC Certified Products | 2155 KB | Download |
Description
GAS | II 2 G Ex d IIC T6 ÷T2 Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2 D Ex tb IIIC T85 °C - T225 °C Db | IP66 | -60°C ÷ +60°C | INERIS 01 ATEX 0054X |

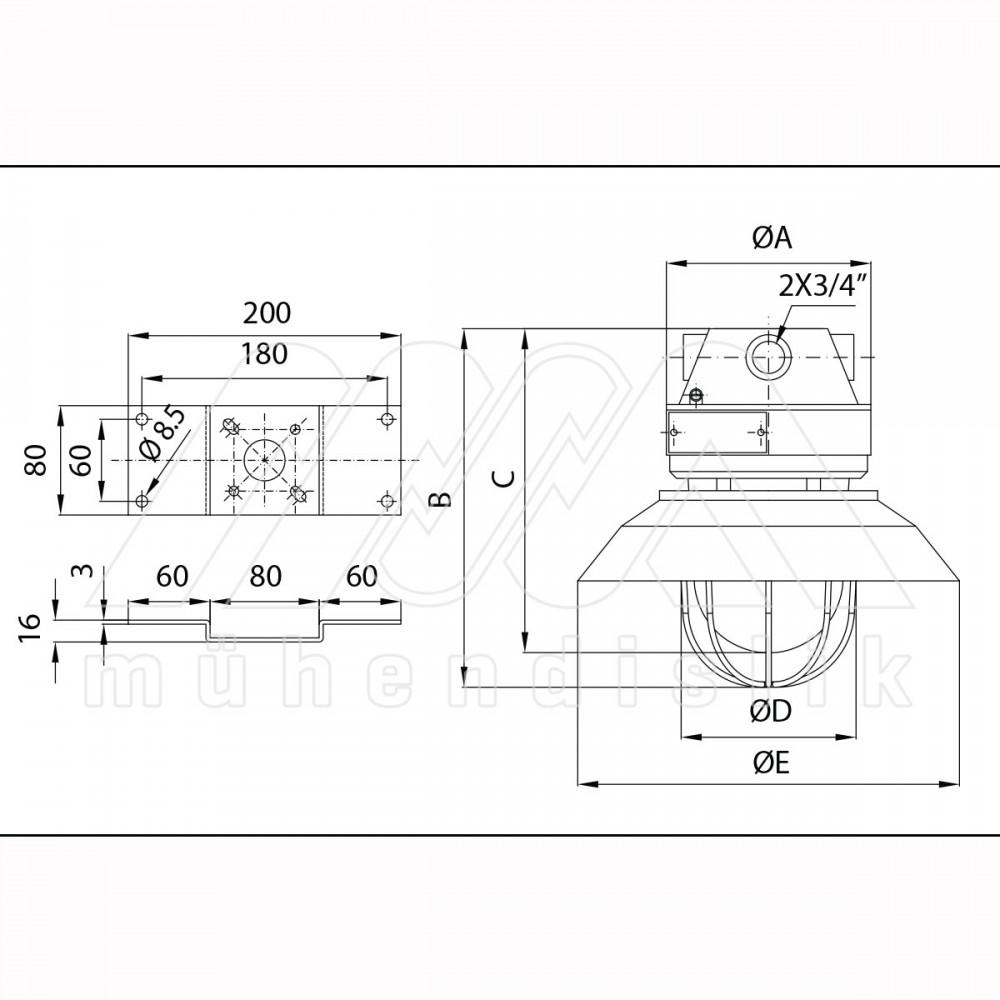

Code No | Lamp | Lamp | A | B | C | ØD | ØE | U.Weight (kg) |
|---|---|---|---|---|---|---|---|---|
EVAC 100 | 100W | E27 | 150 | 270 | 236 | 145 | 280 | 2,00 |
EVAC 200 | 200W | E27 | 176 | 280 | 256 | 170 | 345 | 2,80 |
EVAC 300 | 300W | E40 | 197 | 390 | 325 | 190 | 402 | 4,50 |
