EXPLOSION PROOF PLUG - SOCKET BOX (WAROM)

Product Code:HRMD91

Explosion-proof (Exproof) socket combination boxes are constructed using BXT type explosion-proof panels, with single-phase and three-phase plug and socket sets mounted in the required quantity. The plug and socket sets are mounted to the panel using the necessary explosion-proof fittings.
The contents of the socket combination boxes include:
MCB control levers, buttons, switches, signal lamps, etc., for controlling the W circuit breakers and residual current relay on the cover;
Residual Current Protection Relay; W-Circuit Breaker for controlling the socket set;
Necessary cabling between the W circuit breakers and the plug-socket sets.

Explosion-proof socket combination boxes are used to organize and ensure the safety of socket connections in electrical systems. These boxes are used to organize the connections of various electrical devices by bringing together different types of sockets.

HRMD91 Series Explosion-proof Distribution Equipments

Files

File Name	File Size	Actions
HRMD91_CATALOG	1820 KB	Download
HRMD91_DATA SHEET	613 KB	Download
HRMD91_IECEx	519 KB	Download

Description

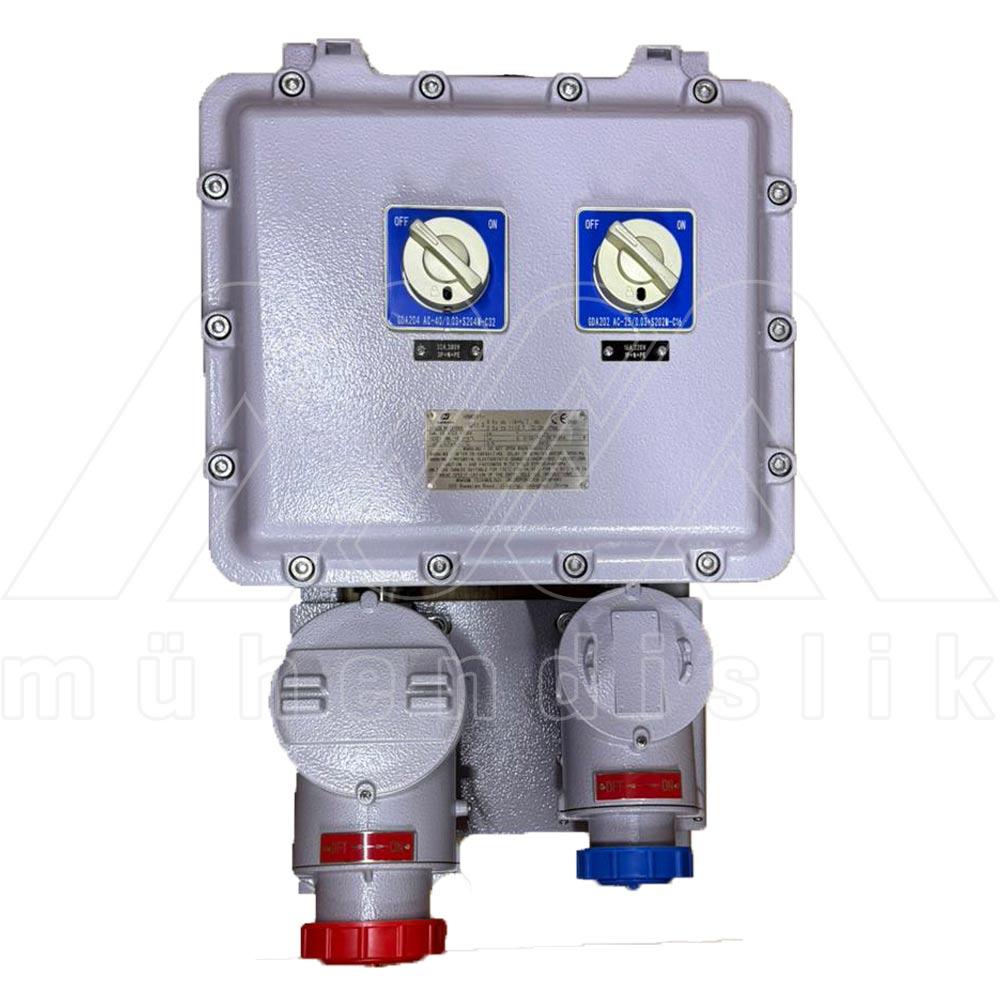

HRMD91-IIIB-001	1 Single-Phase - 1 Three-Phase Plug-Socket Combination Panel. Panel contents: It has a gray (RAL 7040) aluminum housing. 1. Mounting plate, 2. 1 x BCZ85-16/220/3P - 16A, 220V, single-phase explosion-proof plug-socket set, 3. 1 x BCZ85-32/380/5P - 32A, 380V, three-phase explosion-proof plug-socket set, 4. 1 x ABB, 2P/16A, 10kA, RCD30mA fuse, 5. 1 x ABB, 4P/32A, 10kA, RCD30mA fuse, 6. 2+1 x 0.2~4mm² Phoenix terminal blocks (for 16A output), 7. 4+1 x 0.2~10mm² Phoenix terminal blocks (for 32A output), 8. 4+1 x 0.5~16mm² Phoenix terminal blocks (for power input) (for) Ex label: II 2 G Ex db IIB+H2 T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66 It has IP 66 protection class. It operates in the range of -60℃~+60℃. The power input is 1".	HRMD91-IVB-002	2 Single-Phase - 1 Three-Phase Plug-Socket Combination Panel. Panel contents: Features a gray (RAL 7040) aluminum housing. 1. Mounting plate, 2. 2 x BCZ85-16/220/3P - 16A, 220V, single-phase explosion-proof plug-socket set, 3. 1 x BCZ85-32/380/5P - 32A, 380V, three-phase explosion-proof plug-socket set 4. 2 x ABB, 2P/16A, 10kA, RCD30mA fuses 5. 1 x ABB, 4P/32A, 10kA, RCD30mA fuse 6. 4+2 x 0.2~4mm² Phoenix terminal blocks (for 16A output) 7. 4+1 x 0.2~10mm² Phoenix terminal blocks (for 32A output) 8. 4+1 x 0.5~16mm² Phoenix terminal blocks (for power input) (for) Ex label: II 2 G Ex db IIB+H2 T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66 It has IP 66 protection class. It operates in the range of -60℃~+60℃. The power input is 1".
HRMD91-IVB-003	1 Single-Phase - 2 Three-Phase Plug-Socket Combination Panel. Panel contents: It has a gray (RAL 7040) aluminum housing. 1. Mounting plate, 2. 1 x BCZ85-16/220/3P - 16A, 220V, single-phase explosion-proof plug-socket set, 3. 2 x BCZ85-32/380/5P - 32A, 380V, three-phase explosion-proof plug-socket set, 4. 1 x ABB, 2P/16A, 10kA, RCD30mA fuse, 5. 2 x ABB, 4P/32A, 10kA, RCD30mA fuses, 6. 2+1 x 0.2~4mm² Phoenix terminal blocks (for 16A output), 7. 8+2 x 0.2~10mm² Phoenix terminal blocks (for 32A output), 8. 4+1 x 0.5~16mm² Phoenix terminal blocks (for power input) (for) Ex label: II 2 G Ex db IIB+H2 T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66 It has IP 66 protection class. It operates in the range of -60℃~+60℃. The power input is 1".	HRMD91-IVB-004	2 Single-Phase - 2 Three-Phase Plug-Socket Combination Panel. Panel contents: It has a gray (RAL 7040) aluminum housing. 1. Mounting plate, 2. 2 x BCZ85-16/220/3P - 16A, 220V, single-phase explosion-proof plug-socket set, 3. 2 x BCZ85-32/380/5P - 32A, 380V, three-phase explosion-proof plug-socket set, 4. 2 x ABB, 2P/16A, 10kA, RCD30mA fuses, 5. 2 x ABB, 4P/32A, 10kA, RCD30mA fuses, 6. 4+2 x 0.2~4mm² Phoenix terminal blocks (for 16A output), 7. 8+2 x 0.2~10mm² Phoenix terminal blocks (for 32A output), 8. 4+1 x 2.5~25mm² Phoenix terminal blocks (for power input) (for) Ex label: II 2 G Ex db IIB+H2 T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66 It has IP 66 protection class. It operates in the range of -60℃~+60℃. The power input is 1".
