EX-PROOF PORTABLE PLUG- SOCKET (EATON / CEAG)
Product Code:GHG

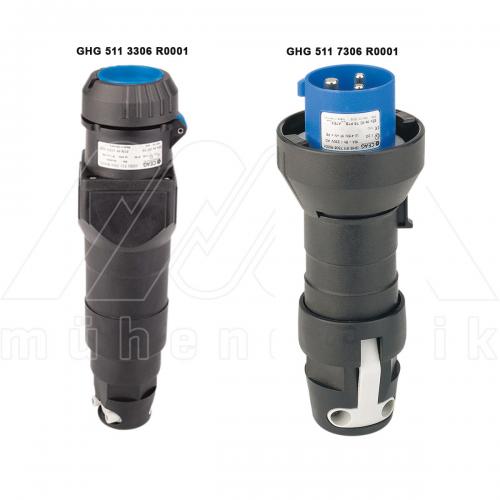

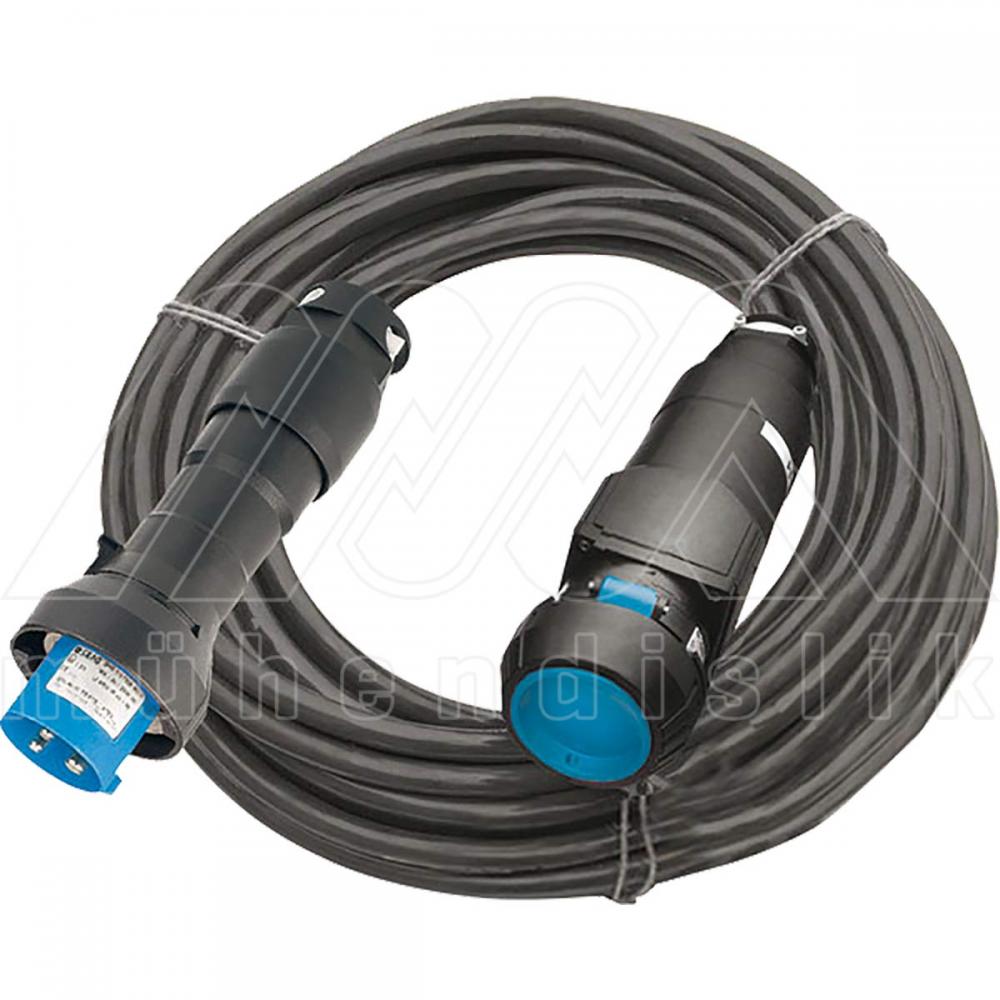

Ex Monophase Portable Plug-Socket
- GHG 511 3306 R0001 Ex-proof Coupler Extension Socket (1x16A+N+T 240V )
- GHG 511 7306 R0001 Ex-Proof Plug, 16 A, 3-pole, 200-250 V, 6 h
- Plug cable entry : Ø 8 – 18 mm, Socket cable entry: Ø 8 – 19 mm.

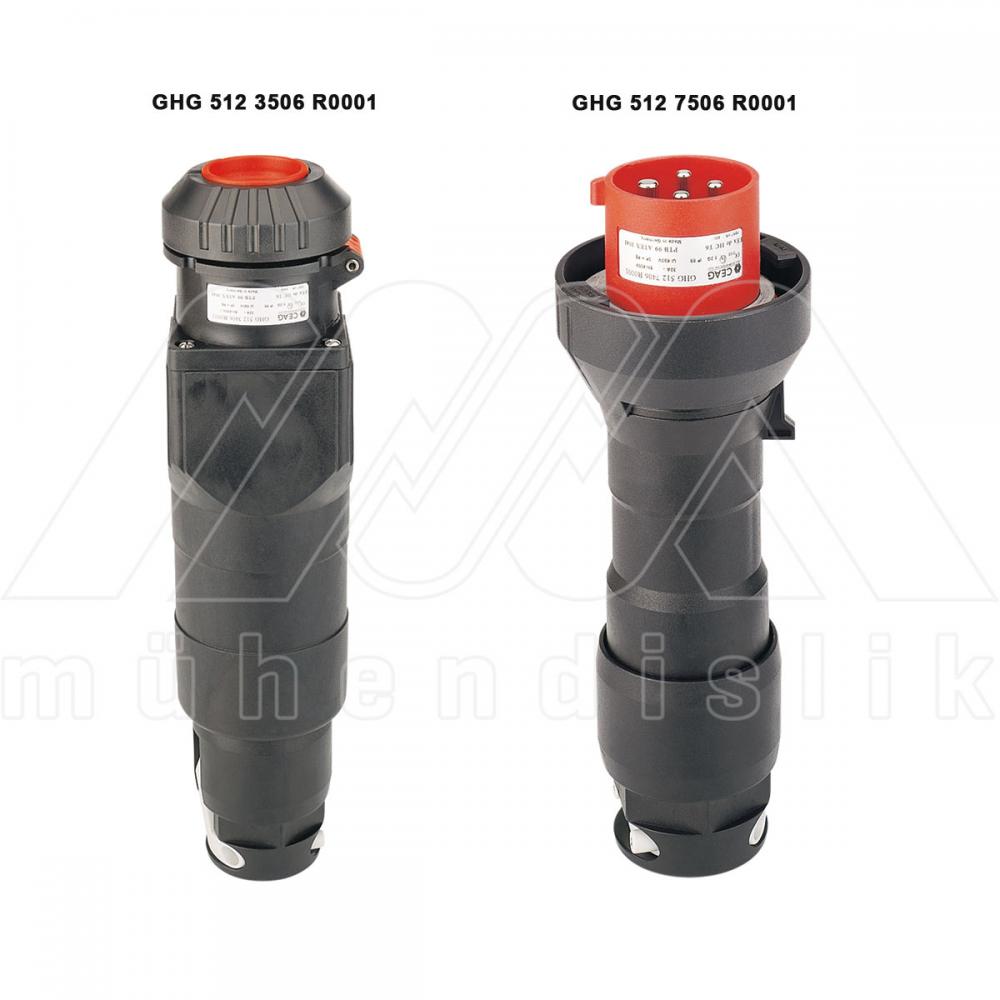

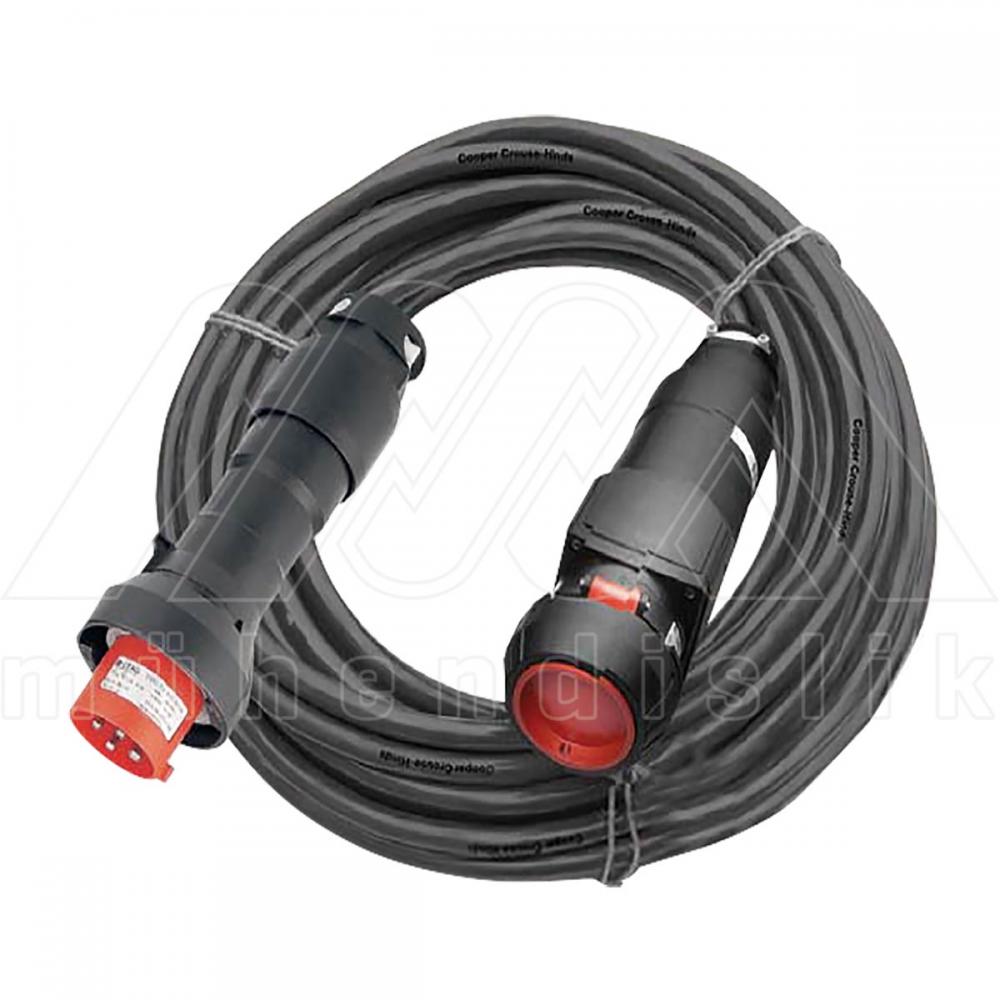

Ex Three Phase Portable Plug-Socket
- GHG 512 3506 R0001 Ex-proof Coupler Extension Socket (3x32A+N+T 415V )
- GHG 512 7506 R0001 Ex-Proof Plug, 32 A, 5-pole, 380-415 V, 6 h
- Plug cable entry Ø 12 – 28 mm, Plug cable entry: Ø 12 – 28 mm.
Description
GAS | Ex II 2G / Ex db eb [ia] IIC / IIB+H2 T6 | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | Ex II 2D Ex IIIC / IIIB T80°C Db | IP66 | -20 °C to + 55 °C | BVS 17 ATEX E 053 X |
Code No | Type | Current | Voltage | Entry | U.Weight |
|---|---|---|---|---|---|
GHG 511 3306 R0001 | Socket | 16A | 200-250V | Ø8-19mm | 0,70 |
GHG 511 7306 R0001 | Plug | 16A | 200-250V | Ø8-18mm | 0,35 |
GAS | Ex II 2G Ex de (ia) IIC T6 | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | Ex II 2D Ex tD A21 IP66 T80°C | IP66 | -20 °C to + 40 °C | PTB 99 ATEX 1041 |
Code No | Type | Current | Voltage | Entry | U.Weight |
|---|---|---|---|---|---|
GHG 512 3506 R0001 | Socket | 32A | 380-415V | Ø12-28mm | 1,60 |
GHG 512 7506 R0001 | Plug | 32A | 380-415V | Ø12-28mm | 0,60 |
