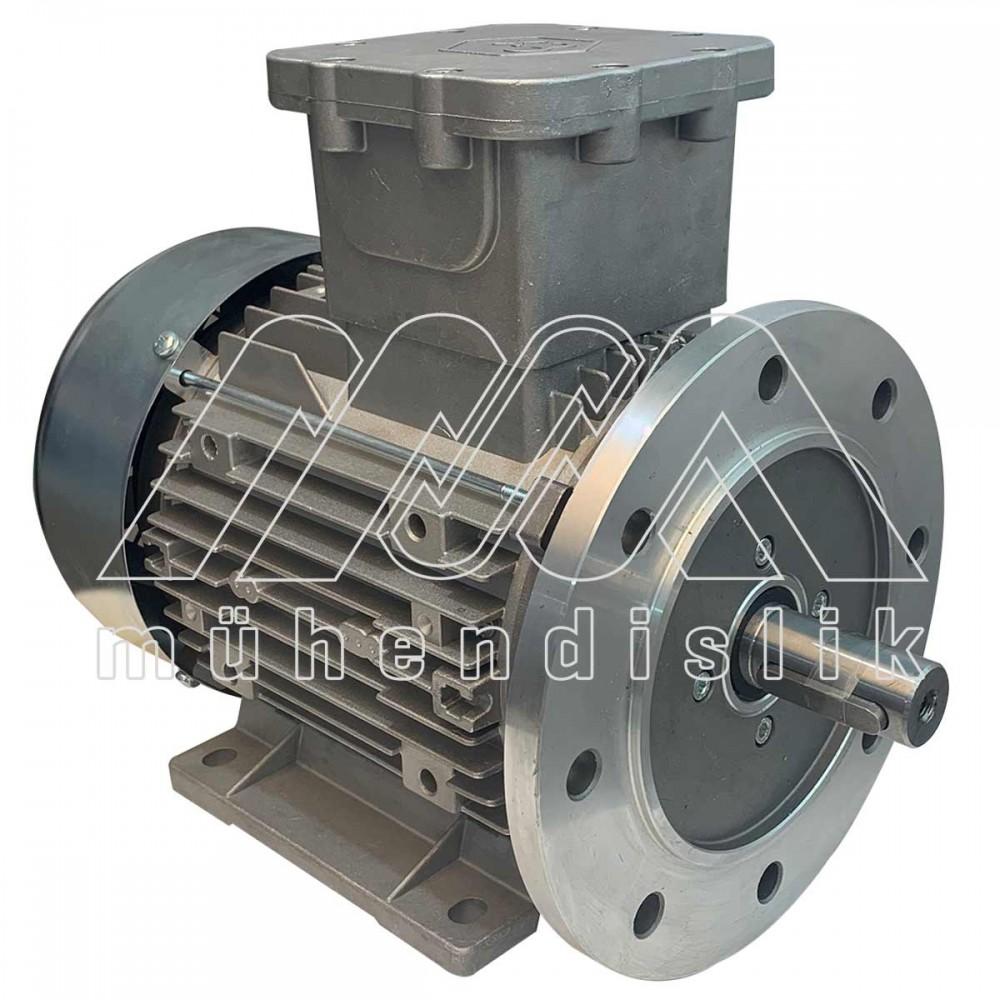

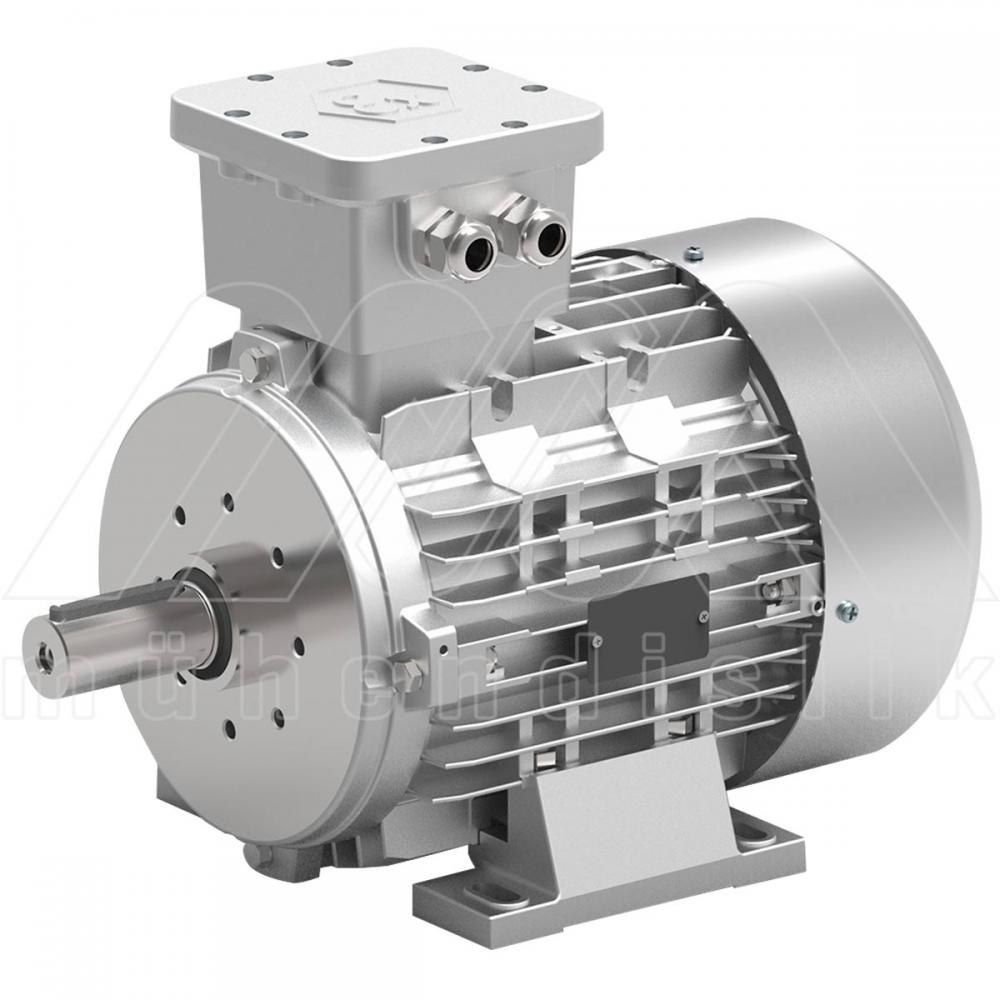

Ex - proof AC (alternating current) electric motors ZONE 1-ZONE 2 are aluminum housing, flame-resistant, explosion-proof and Atex certified.

II 2G Ex db IIC T4 Gb

• IIC: Hydrogen gas group
• 63, 71, 80, 90, 100 and 112 body options
• 0,12 ... 5.5 kW power range
• 3000 and 1500 rpm options
• IP65 protection rating
• -20... + 40°C ambient temperature range
• S1 working and F insulation class
• Supply voltage: 400V-50Hz / 460V-60Hz
• B3, B5 and B14 flange connection options

II 2G Ex db IIb T4 Gb

• IIB: Ethylene gas group
• 63, 71, 80, 90, 100 and 112 body options
• 5,5 ... 11 kW power range
• 3000 and 1500 rpm options
• IP55 protection degree
• -20... + 40°C ambient temperature range
• S1 working and F insulation class
• Supply voltage: 400V-50Hz / 460V-60Hz
• B3, B5 and B14 flange connection options.

Exproof asynchronous motors are specially designed for use in environments with explosive gas, steam or dust. Ex-proof motors do not overheat. For this reason, a spark that may occur in engines is never reflected outside. In this way, the risk of explosion or fire is minimized.
