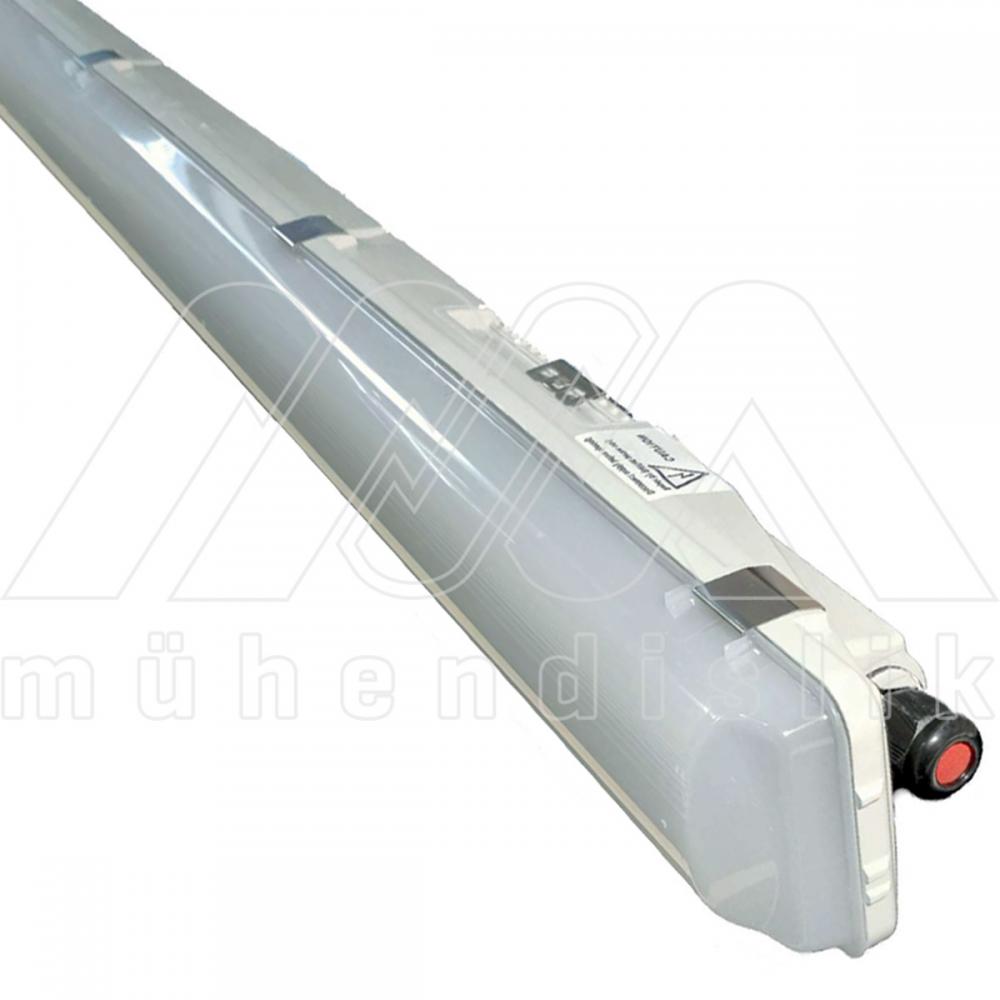

EX-PROOF LED LINEAR (COSIME)

Product Code:SVN

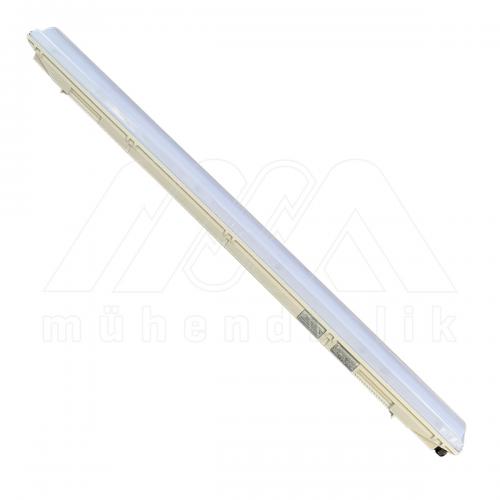

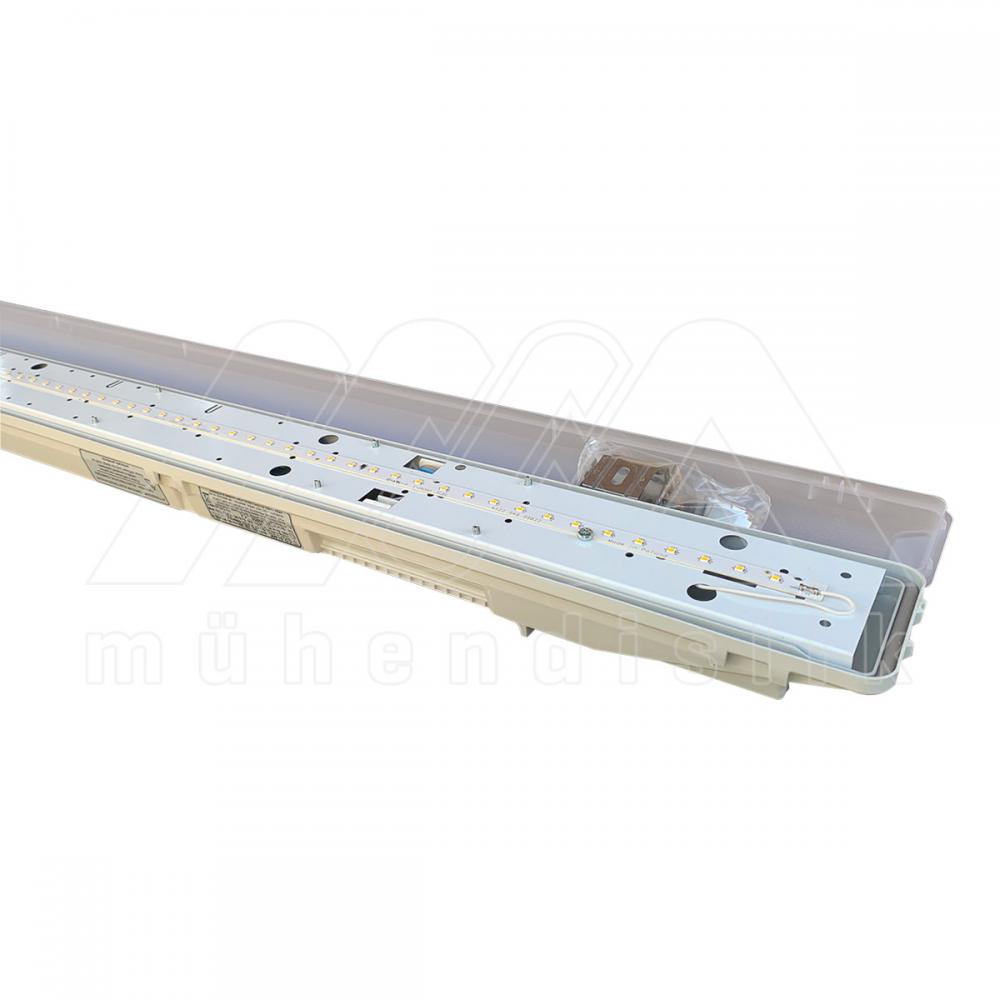

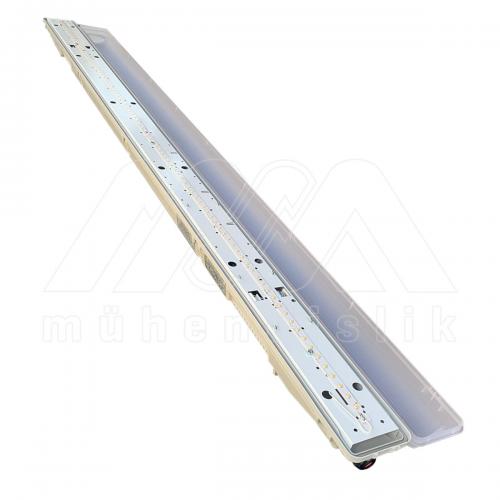

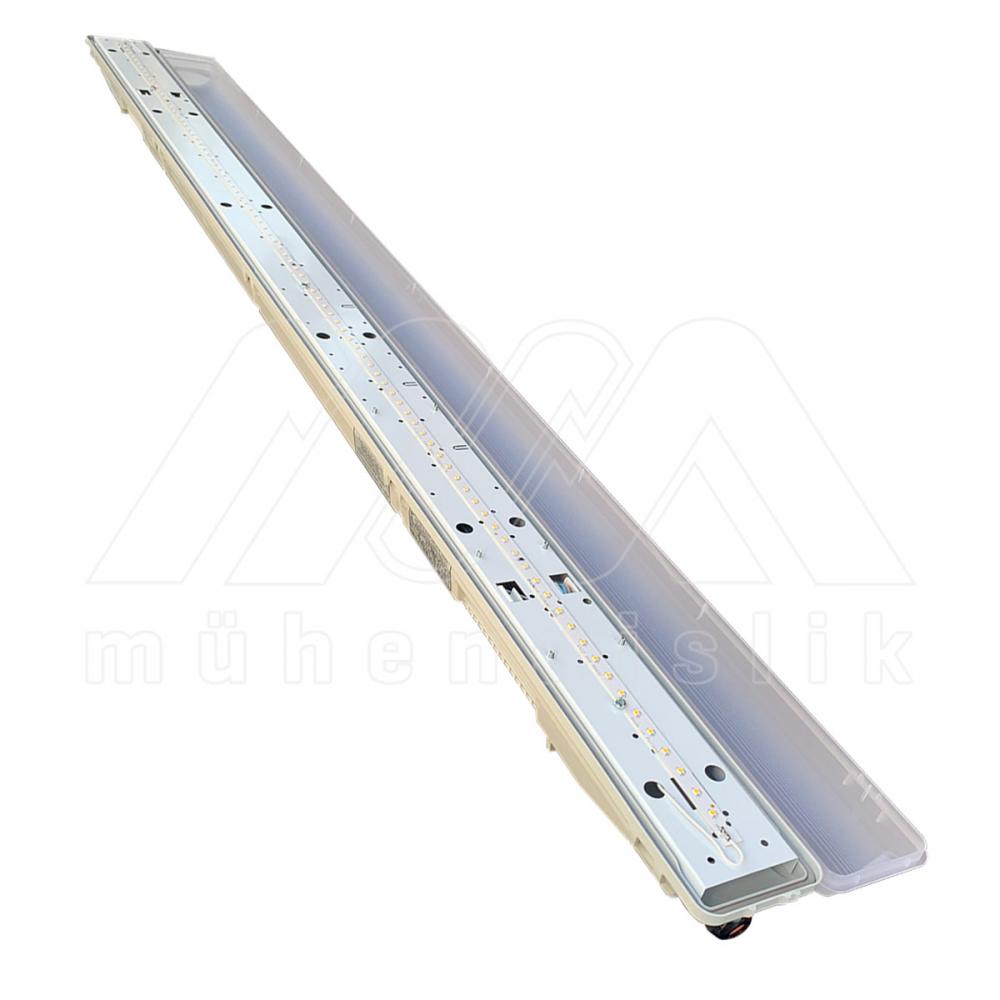

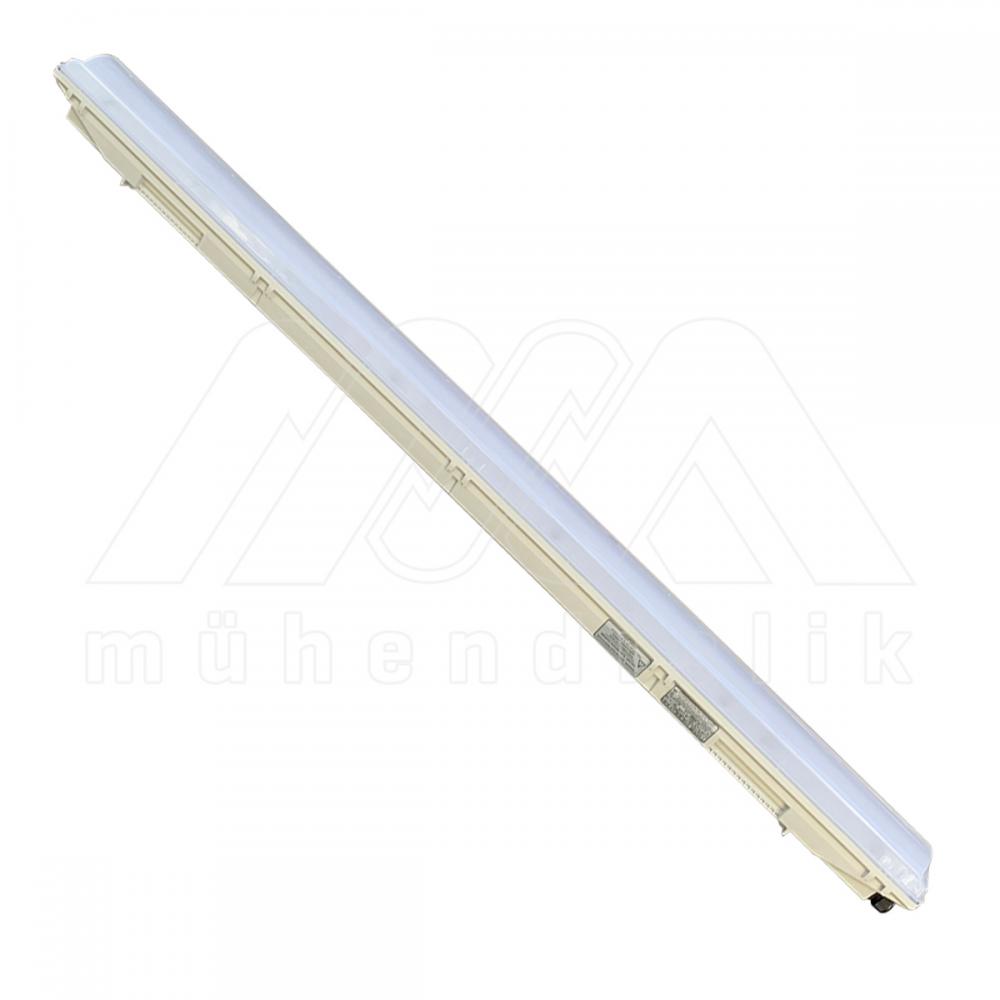

SVN.. series Exproof linear LED lighting fixtures are with Led strip.

Zone 2 is suitable for use on 22 sites.

4000K, 230V, 50/60Hz.

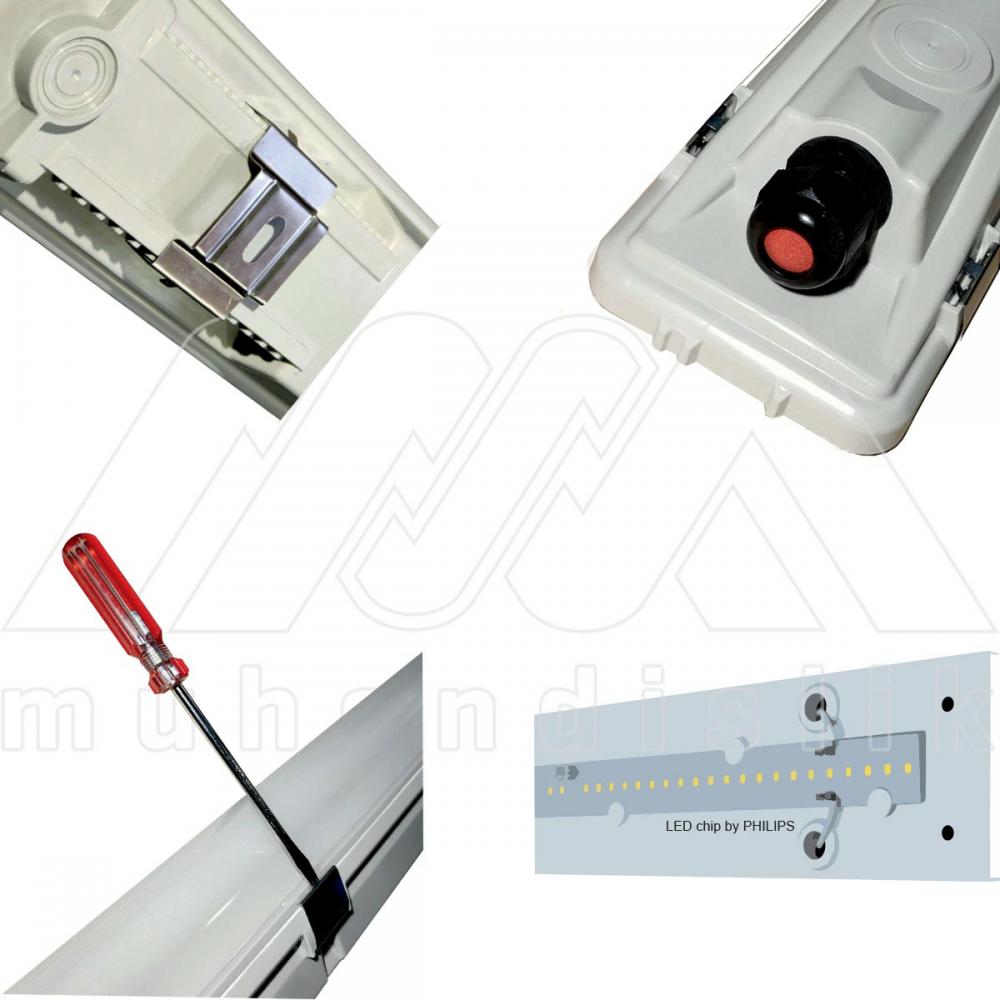

1xM20 input. It is on cable gland.

File Name	File Size	Actions
SVN_DATA SHEET	1340 KB	Download
SVN_ATEX	698 KB	Download

GAS	II3G Ex ec IIC T5 ÷ T4 Gc	IP66	Zone 2 - Zone 22
DUST	II3D Ex tb IIIC T95÷T130°C Dc	IP66	-25°C ÷ +40°C	-25°C ÷ +60°C

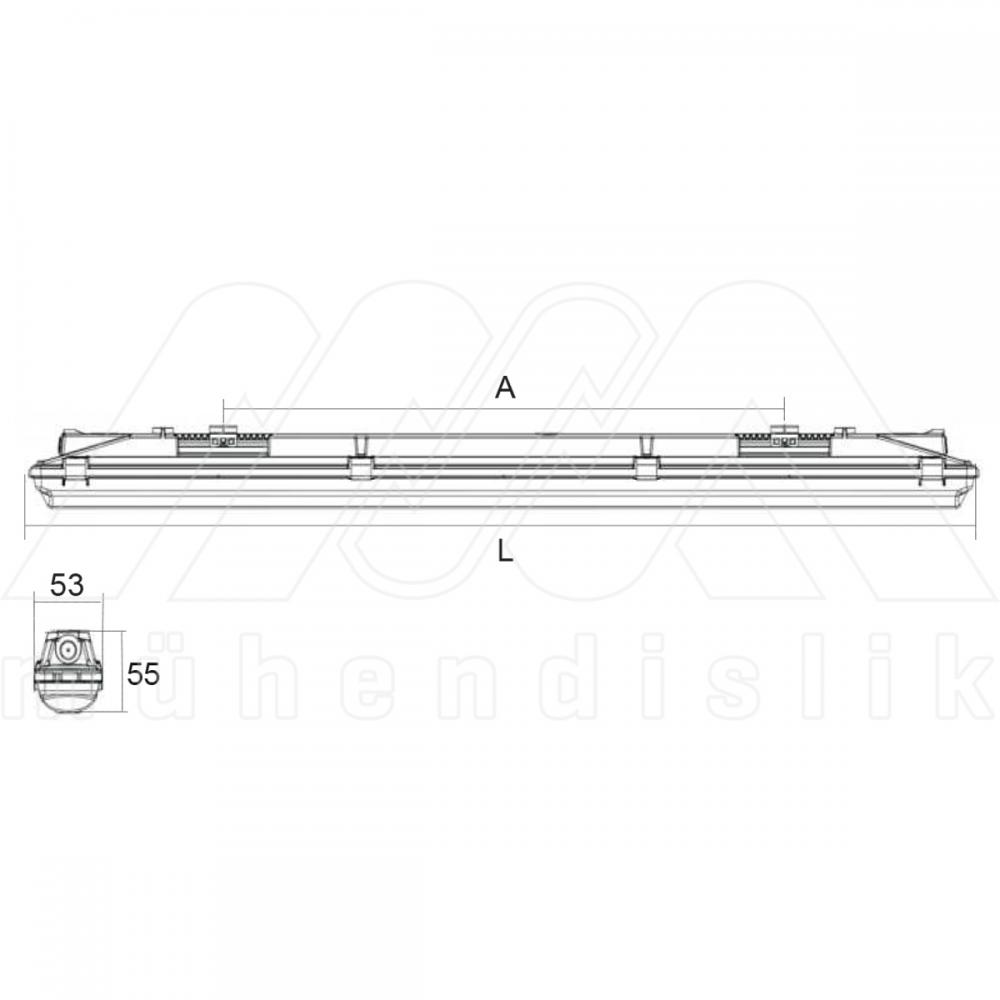

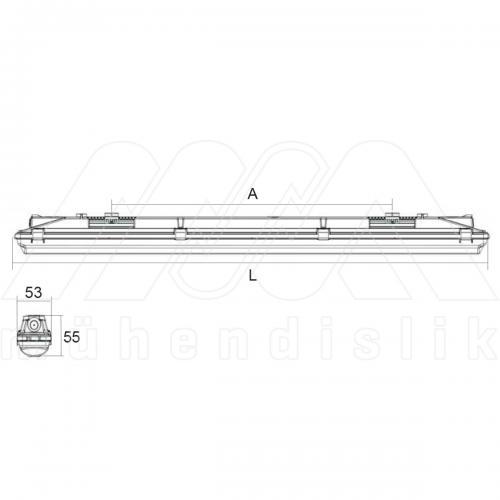

Code No	L (mm)	A (mm)	Watt	Lumen	U. Weight (kg)
SVN..36	1185	700	36	4000	1,50
SVN..50	1480	1000	50	7200	2,20
SVN..60	1480	1000	60	8400	2,50
SVN..70	1580	1100	75	11000	3,30
