EX-PROOF HIGH BAY LED LIGHTING FIXTURE_EVL (CORTEM)
Product Code:EVL
EVL series Exproof high bay LED lighting fixtures are aluminum cast housing.
2xM20 input. U type mounting foot.

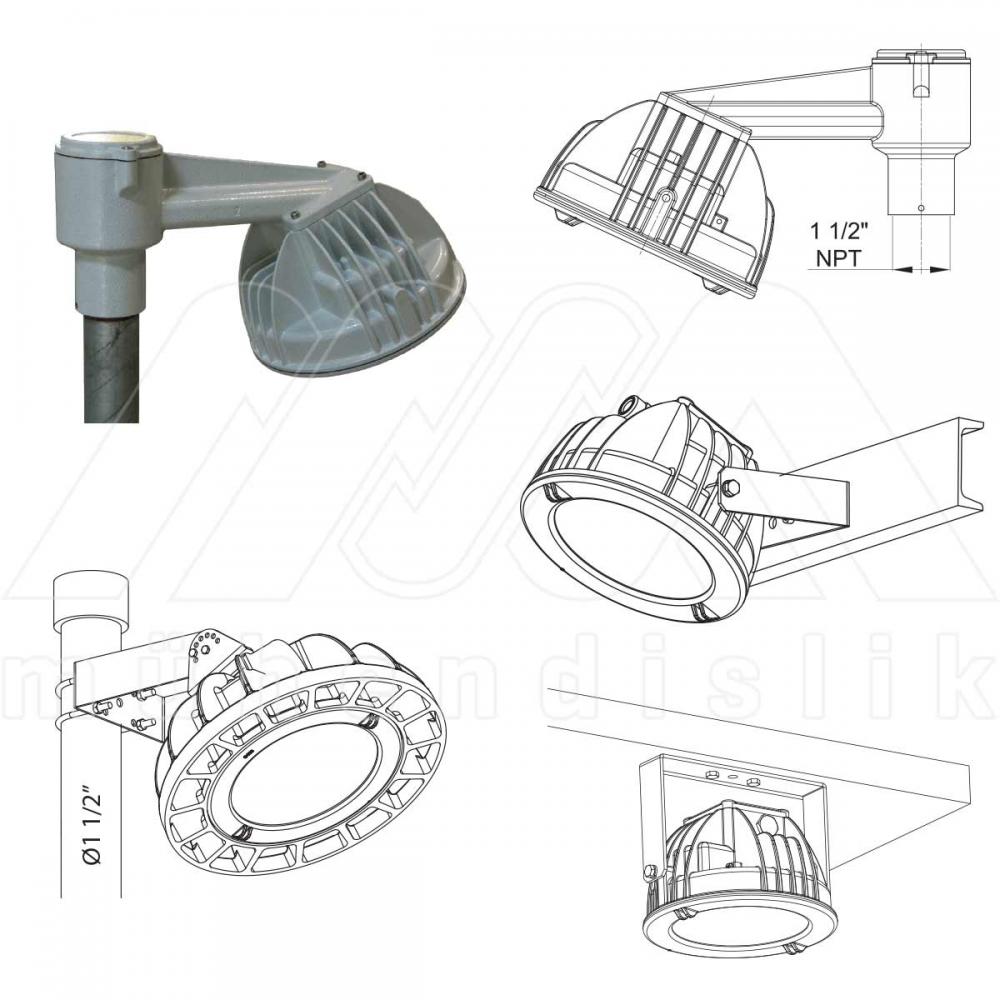

It can be installed on ceiling, wall, pole and platform.
Description
GAS | II 2GD Ex db eb op is IIC T... Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | Ex tb op is IIIC T...°C Db | IP66 | -40°C(-60°C)* +60°C** | EPT 19 ATEX 3323 X |

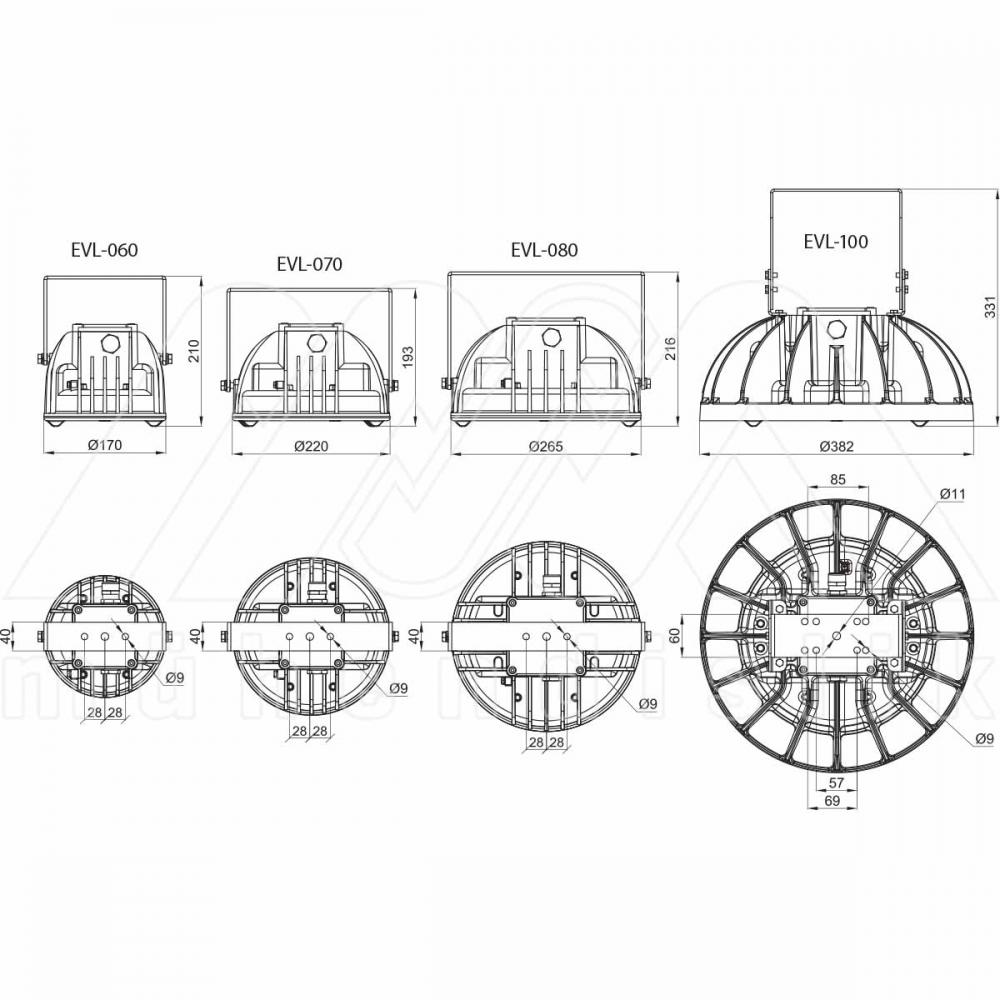

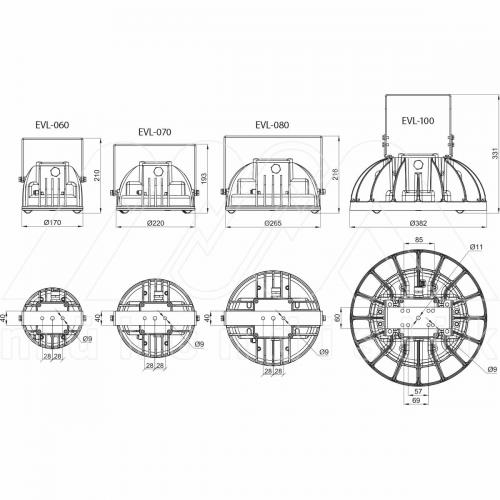

Code No | Watt | Lumen | TA=+40°C | TA=+50°C | TA=+60°C | Weight Kg. |
|---|---|---|---|---|---|---|
EVL-060030 | 30W | 2778 | T6 / 85°C | T5 / 100°C | T5 / 100°C | 3,50 |
EVL-060040 | 40W | 3992 | T6 / 85°C | T5 / 100°C | T5 / 100°C | 3,50 |
EVL-060050 | 50W | 4643 | T5 / 100°C | --- | --- | 3,50 |
Code No | Watt | Lumen | TA=+40°C | TA=+50°C | TA=+60°C | Weight Kg. |
|---|---|---|---|---|---|---|
EVL-070050 | 50W | 6332 | T5 / 100°C | T5 / 100°C | T4 / 135°C | 5,20 |
EVL-070060 | 60W | 7259 | T5 / 100°C | T5 / 100°C | T4 / 135°C | 5,20 |
EVL-070070 | 70W | 7852 | T5 / 100°C | --- | --- | 5,20 |
EVL-070080 | 80W | 8287 | T5 / 100°C | --- | --- | 5,20 |
Code No | Watt | Lumen | TA=+40°C | TA=+50°C | TA=+60°C | Weight Kg. |
|---|---|---|---|---|---|---|
EVL-080080 | 80W | 10630 | T5 / 100°C | T5 / 100°C | T4 / 135°C | 7,20 |
EVL-080090 | 90W | 11768 | T4 / 135°C | T4 / 135°C | T4 / 135°C | 7,20 |
EVL-080100 | 100W | 12653 | T4 / 135°C | --- | --- | 7,20 |
EVL-080120 | 120W | 13924 | T4 / 135°C | --- | --- | 7,20 |
Code No | Watt | Lumen | TA=+40°C | TA=+50°C | TA=+60°C | Weight Kg. |
|---|---|---|---|---|---|---|
EVL-100140 | 140W | 15872 | T4 / 135°C | T4 / 135°C | T4 / 135°C | 11,20 |
EVL-100160 | 160W | 20363 | T4 / 135°C | T4 / 135°C | T4 / 135°C | 11,20 |
EVL-100180 | 180W | 21467 | T4 / 135°C | --- | --- | 11,20 |
EVL-100200 | 200W | 23502 | T4 / 135°C | --- | --- | 11,20 |
EVL-100220 | 220W | 24533 | T4 / 135°C | --- | --- | 11,20 |
