EX-PROOF GUB TYPE JUNCTION BOX (CORTEM)
Product Code:GUB-S
Empty Enc.: ATEX CESI 01 ATEX 034U / IEC Ex CES 14.0012U
With Terminals: ATEX CESI 01 ATEX 035 / IEC Ex CES 16.0013X
- GUB type Exproof junction box are aluminum body.
- It is preferred as cable distribution and attachment box.
- Holes can be drilled in the desired number and tooth size.
Description
GAS | II2G Ex db IIC Gb | IP66 | Zone 1- Zone 21- Zone 2- Zone 22 | |
DUST | II2D Ex tb IIIC Db | IP66 | -20°C ÷ +60°C | -60°C ÷ +150°C |

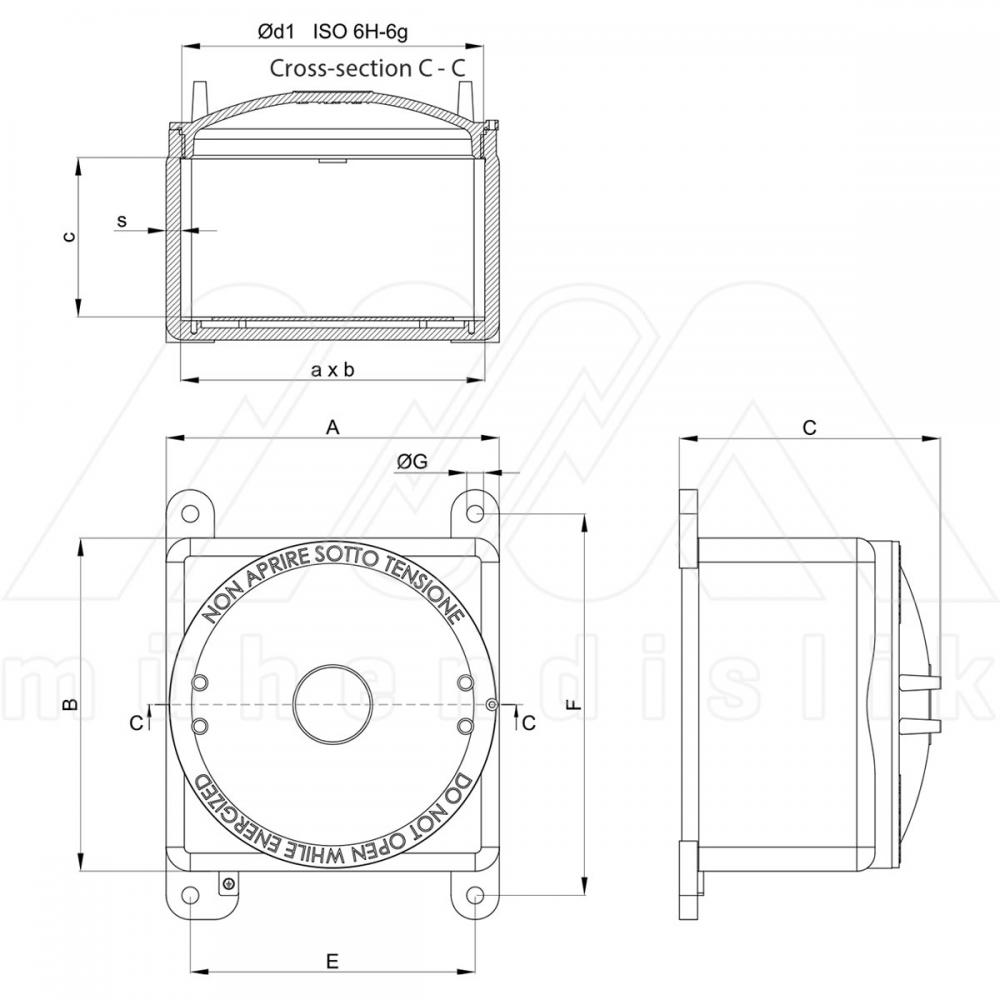

Code No | A | B | C | a | b | c | Ø d1 | s | E | F | Ø G | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GUB | 120 | 120 | 116 | 96 | 96 | 60 | 95x2 | 12 | 100 | 145 | 9 | 1,60 |
GUB-S | 120 | 120 | 145 | 96 | 96 | 93 | 95x2 | 12 | 100 | 145 | 9 | 2,10 |
GUB-0 | 150 | 150 | 130 | 126 | 126 | 68 | 130x2 | 12 | 126 | 174 | 10 | 2,50 |
GUB-01 | 174 | 174 | 140 | 146 | 146 | 78 | 150x2 | 12 | 150 | 195 | 10 | 3,70 |
GUB-02 | 230 | 230 | 165 | 204 | 204 | 92 | 200x3 | 12 | 196 | 267 | 14 | 7,0 |
GUB-03 | 276 | 276 | 217 | 250 | 250 | 135 | 250x3 | 12 | 236 | 316 | 14 | 10,8 |
GUB-04 | 430 | 430 | 290 | 398 | 398 | 158 | 390x3 | 16 | 390 | 480 | 14 | 27,5 |
GUB-05 | 520 | 520 | 327 | 480 | 480 | 164 | 460x3 | 20 | 480 | 570 | 14 | 52,6 |
