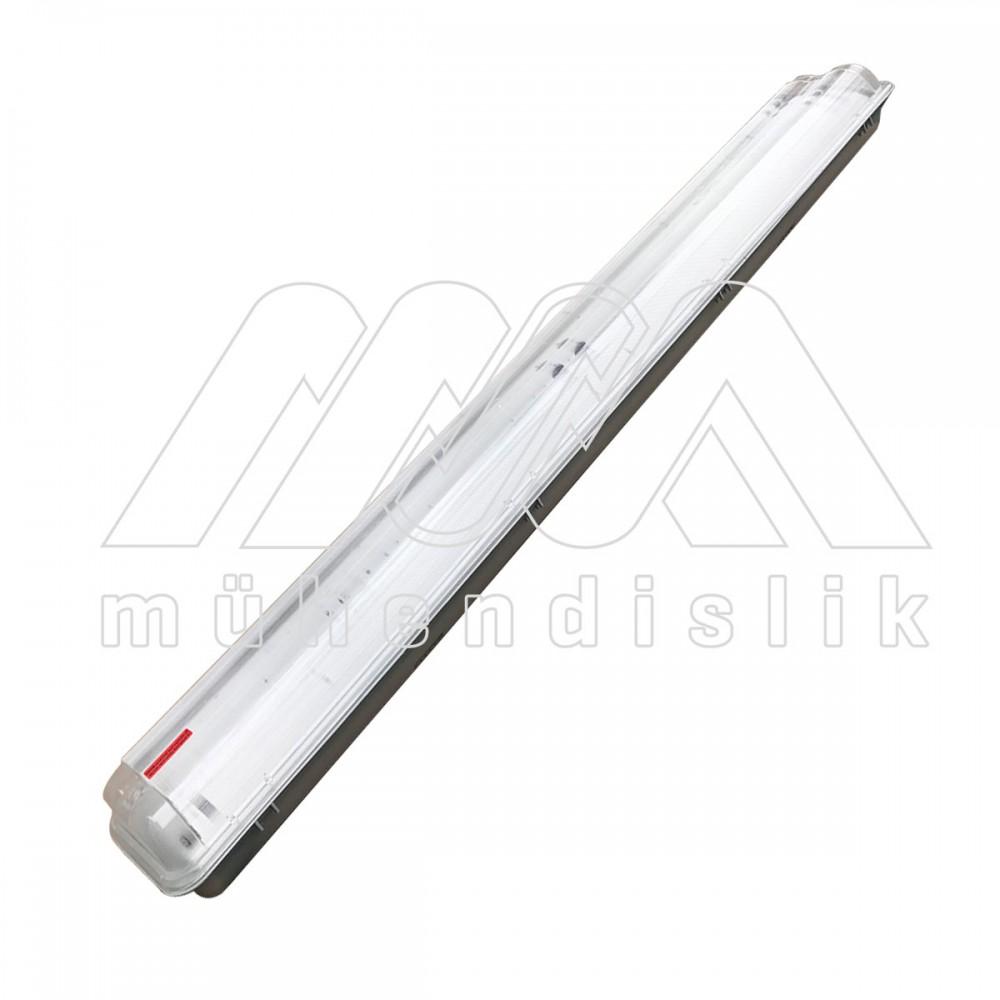

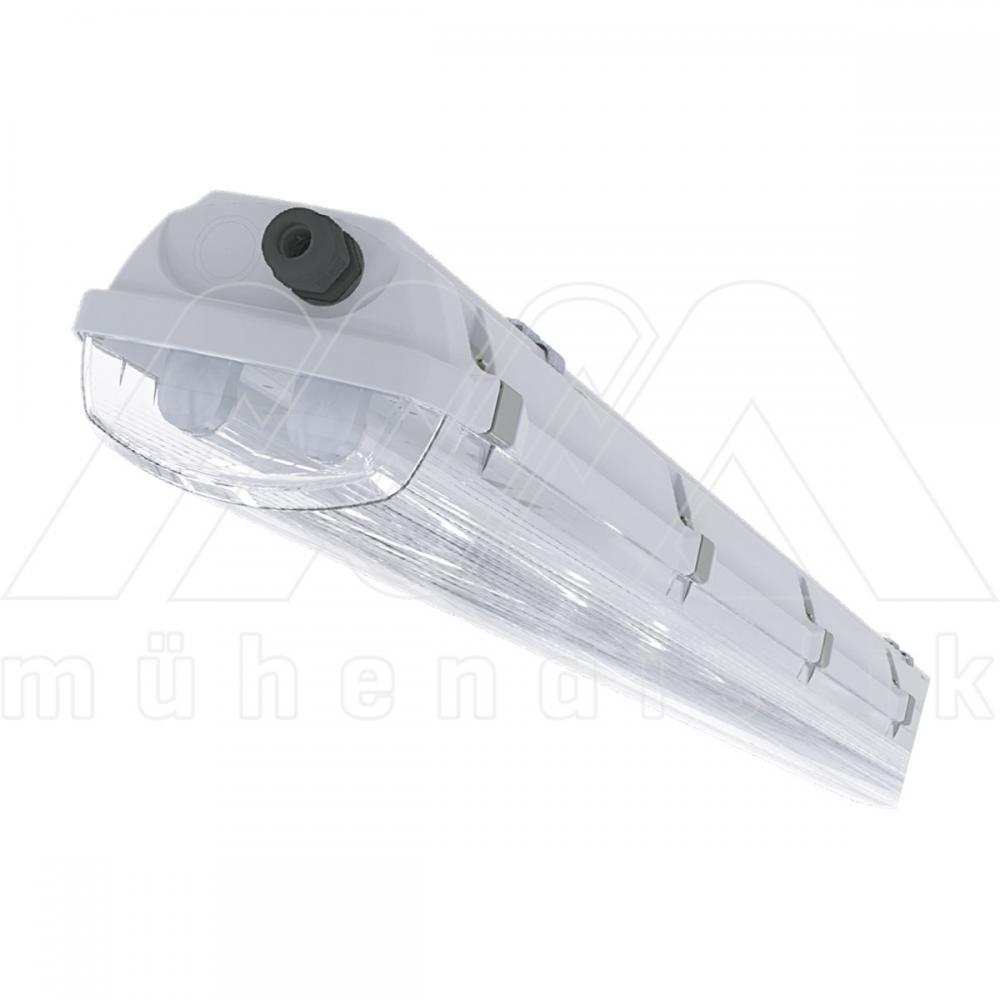

EX-PROOF FLUORESCENT LIGHTING FIXTURES – ZONE 2 TYPE (VYRTYCH)

Product Code:EXTRA-N-S

Vyrtych brand Extra-N-S series Exproof Zone 2 fixtures are ATEX certified.

Polyester body, electronic ballast, ceiling type.

2 pieces of Exproof cable glands and 2 pieces of blind plugs are included.

File Name	File Size	Actions
EXTRA-N-S_DATA SHEET	1080 KB	Download
EXTRA-N-S_ATEX	910 KB	Download
EXTRA-N-S_CE	50 KB	Download
EXTRA-N-S_EAC Click to View All EAC Certified Products	2747 KB	Download
EXTRA-N-S_USER'S GUIDE	254 KB	Download

GAS	II 3G Ex nR IIC T6 Gc	IP66	Zone 2 -Zone 22
DUST	II 3D Ex tc IIIC T62°C Dc	IP66	-20°C ÷ +40°C	-20°C ÷ +50°C

Code No	Descriptions	Lamp Power	Lamp Holder	Dimensions AxBxC (mm)	U.Weight (kg)
55501	EXTRA-N-S-218-EP, 2x18W	2x18W / 20W	T26 / G13	670x155x105	1,78
55503	EXTRA-N-S-236-EP, 2x36W	2x36W / 40W	T26 / G13	1280x155x105	3,10
55505	EXTRA-N-S-258-EP, 2x58W	2x58W / 65W	T26 / G13	1580x155x105	3,80
