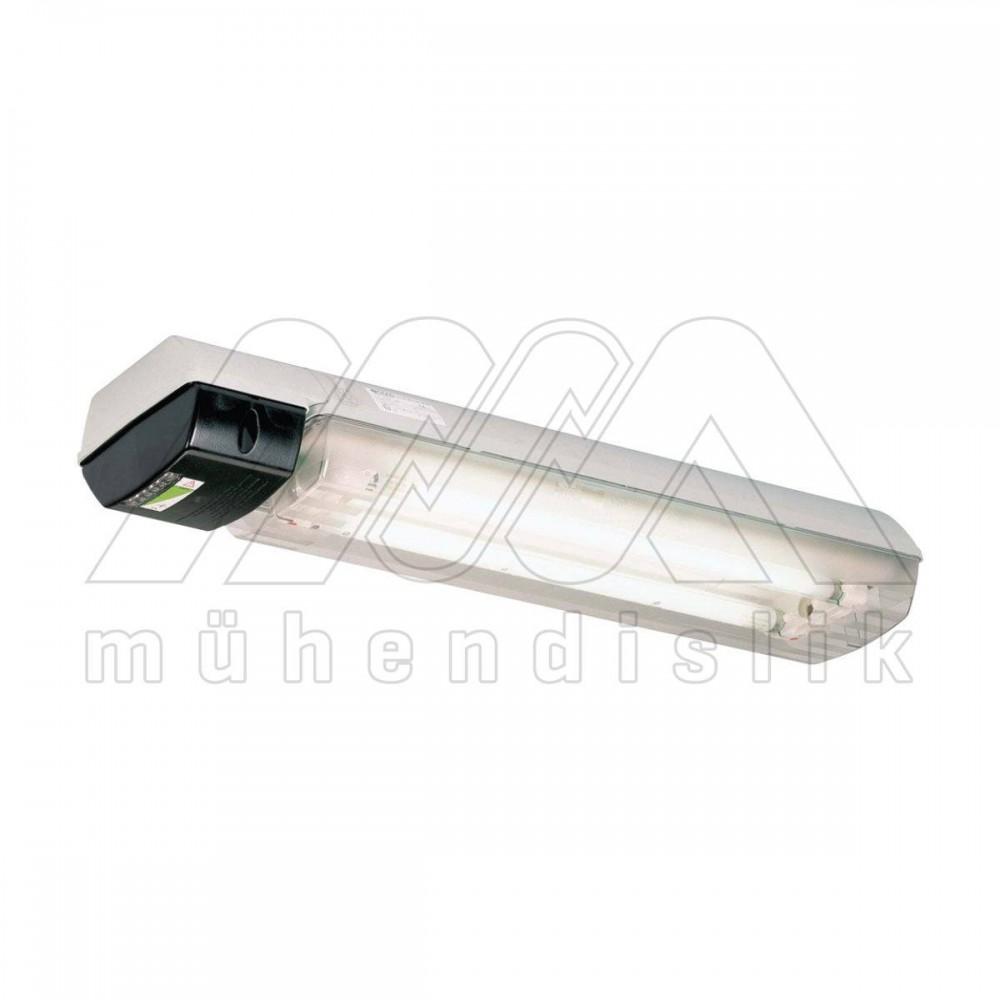

EX-PROOF FLUORESCENT LIGHTING FIXTURES – EMERGENCY TYPE (EATON)

Product Code:eLLK 92_NE

It has 2 x M20 metal inputs.
Including 1 x M20 blind plug, 1 x M20 gland Inlet is empty.
Rated voltage: 220 - 254 V AC / optional 120 V AC
Enclosure colour: RAL 7035 light grey
Enclosure material: glass-fibre reinforced polyester
Protective cover: Polycarbonate
Lumen values depend on the lamps used.
Accessory;

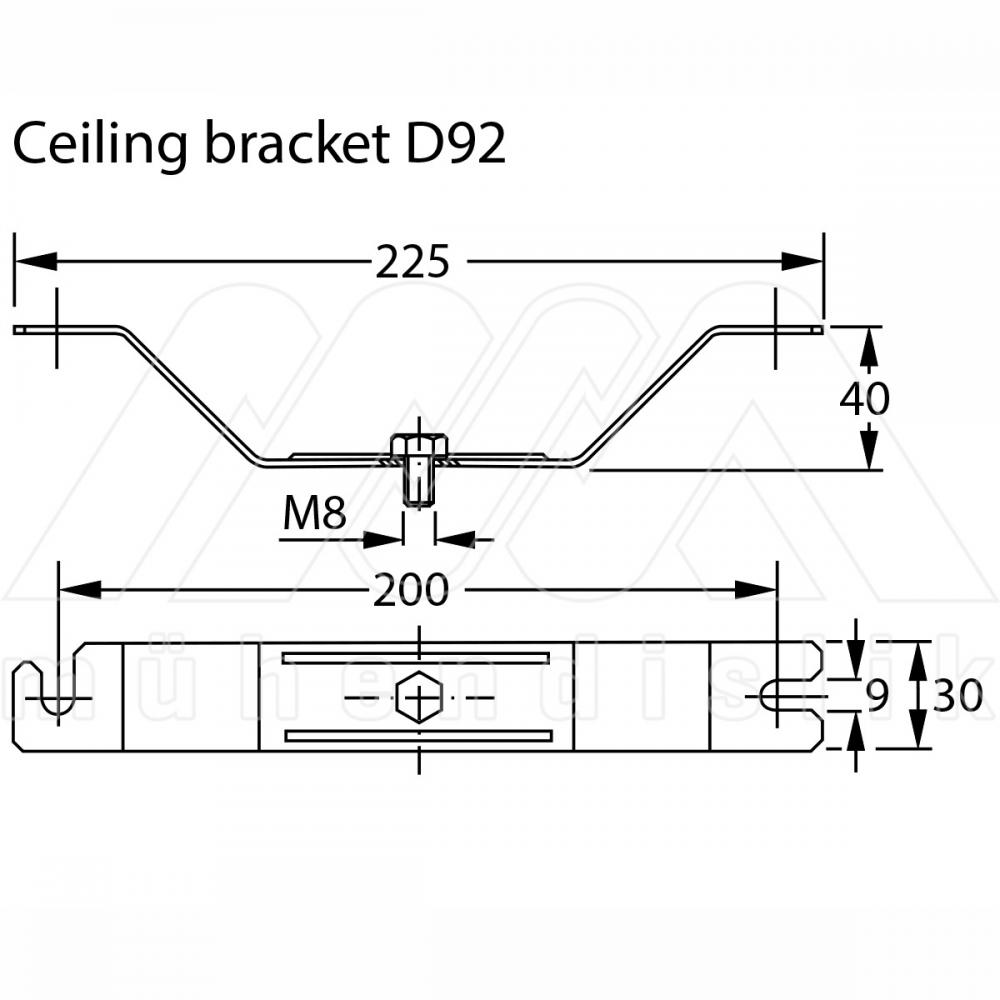

2 2480 092 000 2 pcs. ceiling mounting bracket D 92 with screws and polyamide washer, stainless steel .

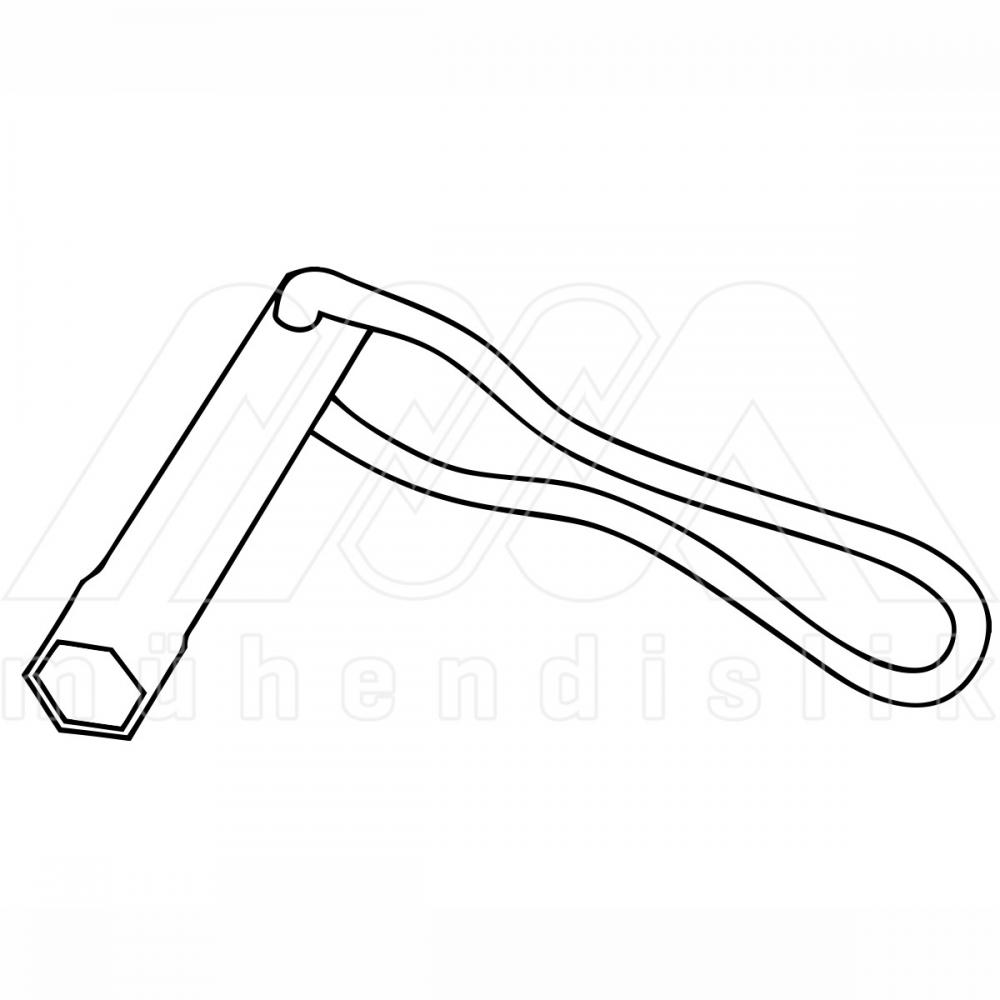

3 2485 000 005 Hexagon box spanner SW 13 for opening/closing fluorescent light fittings eLLK/M and nLLK/M

File Name	File Size	Actions
eLLK 92_NE-DATA SHEET	602 KB	Download
eLLK 92_NE-ATEX	1564 KB	Download
eLLK 92_NE-IECEx	3120 KB	Download
eLLK 92_NE-CE	451 KB	Download
eLLK 92_NE-EAC Click to View All EAC Certified Products	2434 KB	Download
eLLK 92_NE-ACCESSORY	983 KB	Download

GAS	II 2G Ex db eb mb ib IIC T4 Gb	IP66	Zone 1 - Zone 21 - Zone 2 - Zone 22
DUST	II 2 D Ex tb IIIC T80°C Db	IP66	-25°C ÷ +40°C	-25°C ÷ +55°C

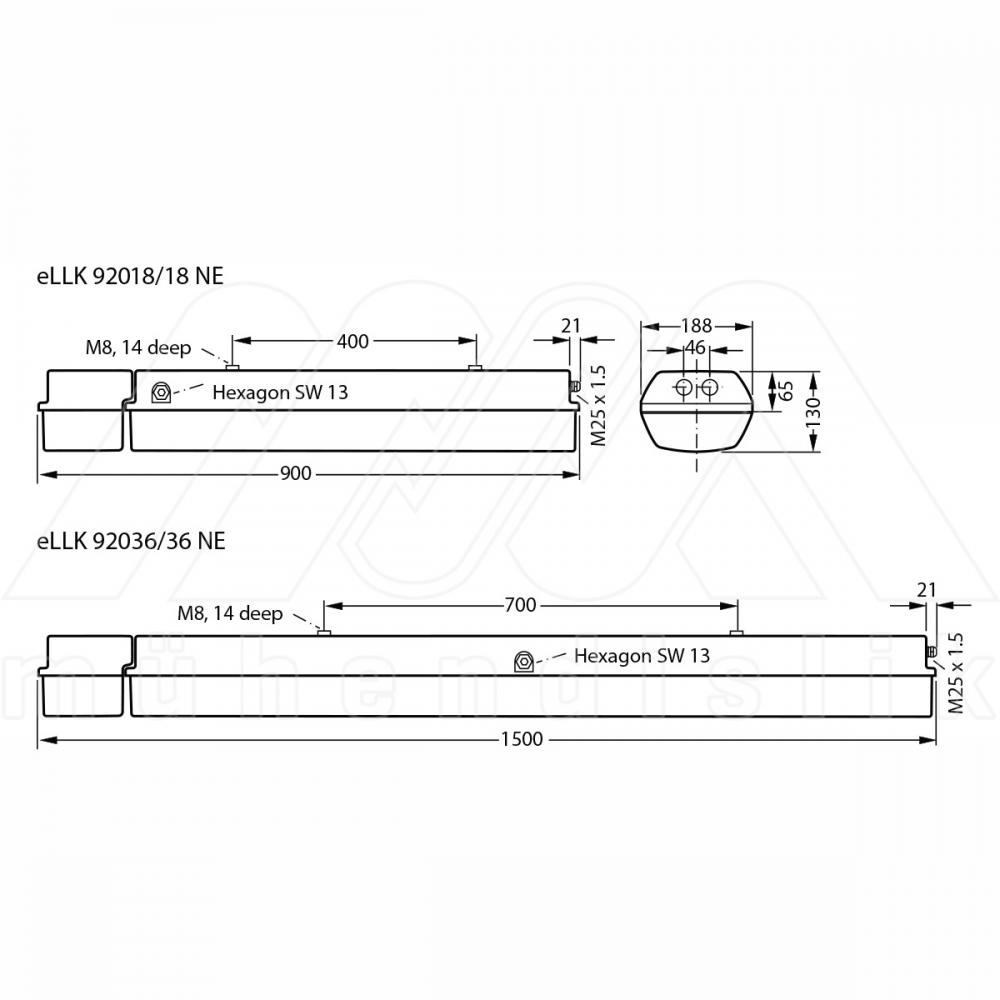

Code	Order No	Lamp Power	Lumen	1.5 h One lamp	Dimensions (mm)	U.Weight (kg)
eLLK 92018/18 NE	1 2260 885 109	2 x T26 / 18 W (T8)	2700	1215 lm	900 x 188 x 130 mm	8,80
eLLK 92036/36 NE	1 2261 885 109	2 x T26 / 36 W (T8)	6700	1507 lm	1500 x 188 x 130 mm	12,00
