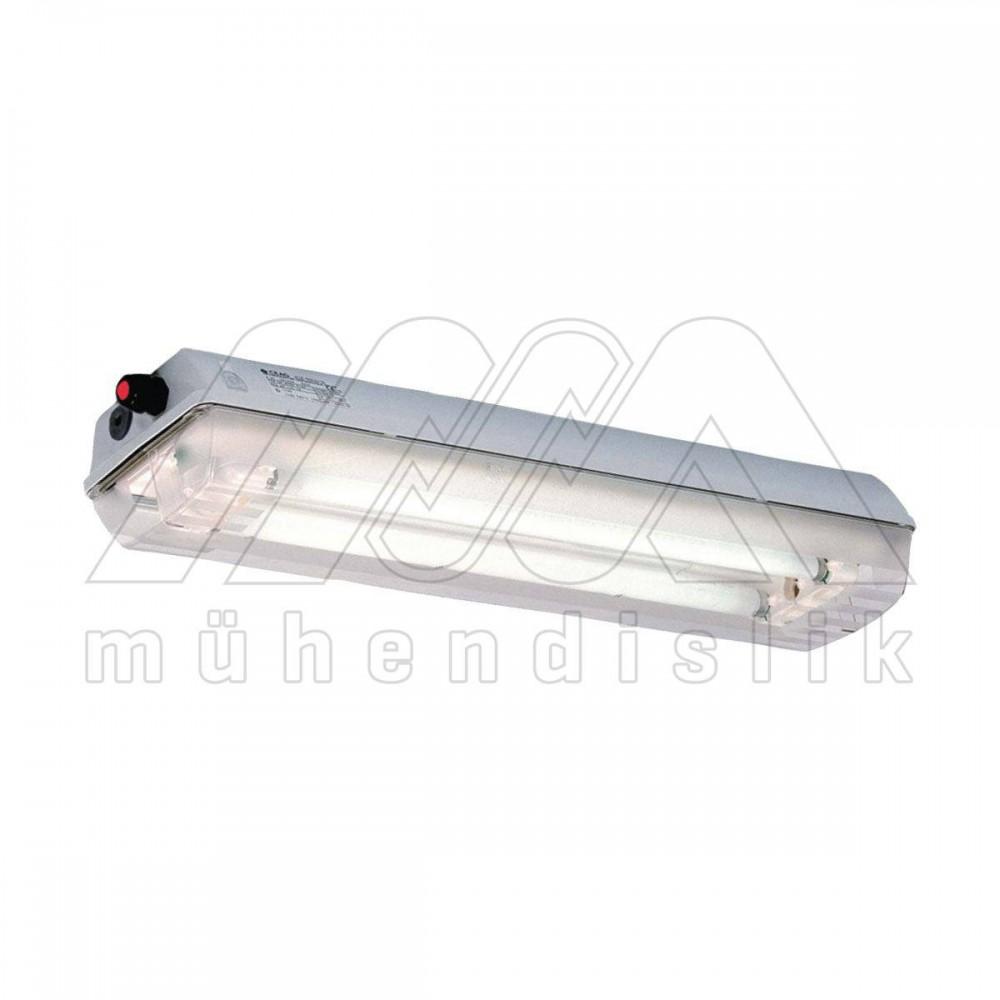

EX-PROOF FLUORESCENT LIGHTING FIXTURES (EATON)
Product Code:eLLK 92
- It has 2 x M20 metal inputs.
- Including 1 x M20 blind plug, 1 x M20 gland Inlet is empty.
- Rated voltage: 110 - 254 V AC / 110 - 250 V DC
- Enclosure colour: RAL 7035 light grey
- Enclosure material: glass-fibre reinforced polyester
- Protective cover: Polycarbonate
- Lumen values depend on the lamps used.
- Accessory;

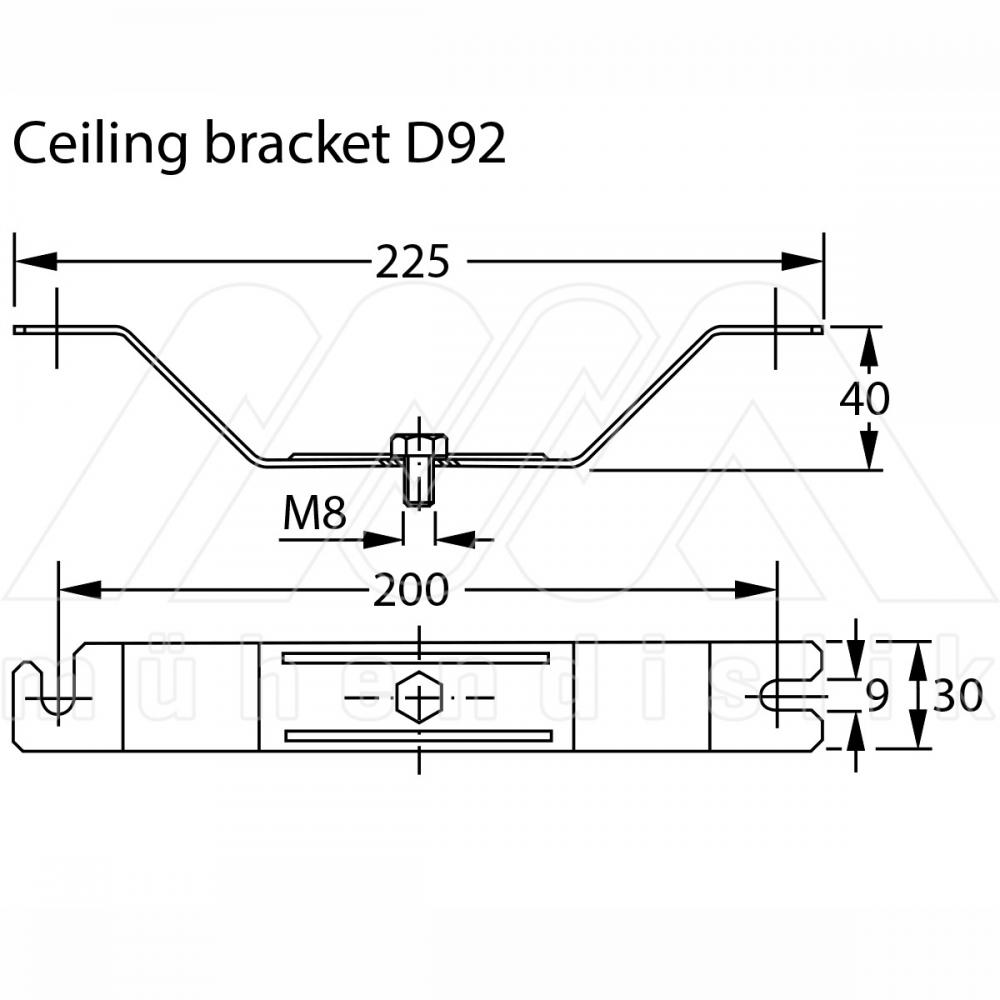

2 2480 092 000 2 pcs. ceiling mounting bracket D 92 with screws and polyamide washer, stainless steel .

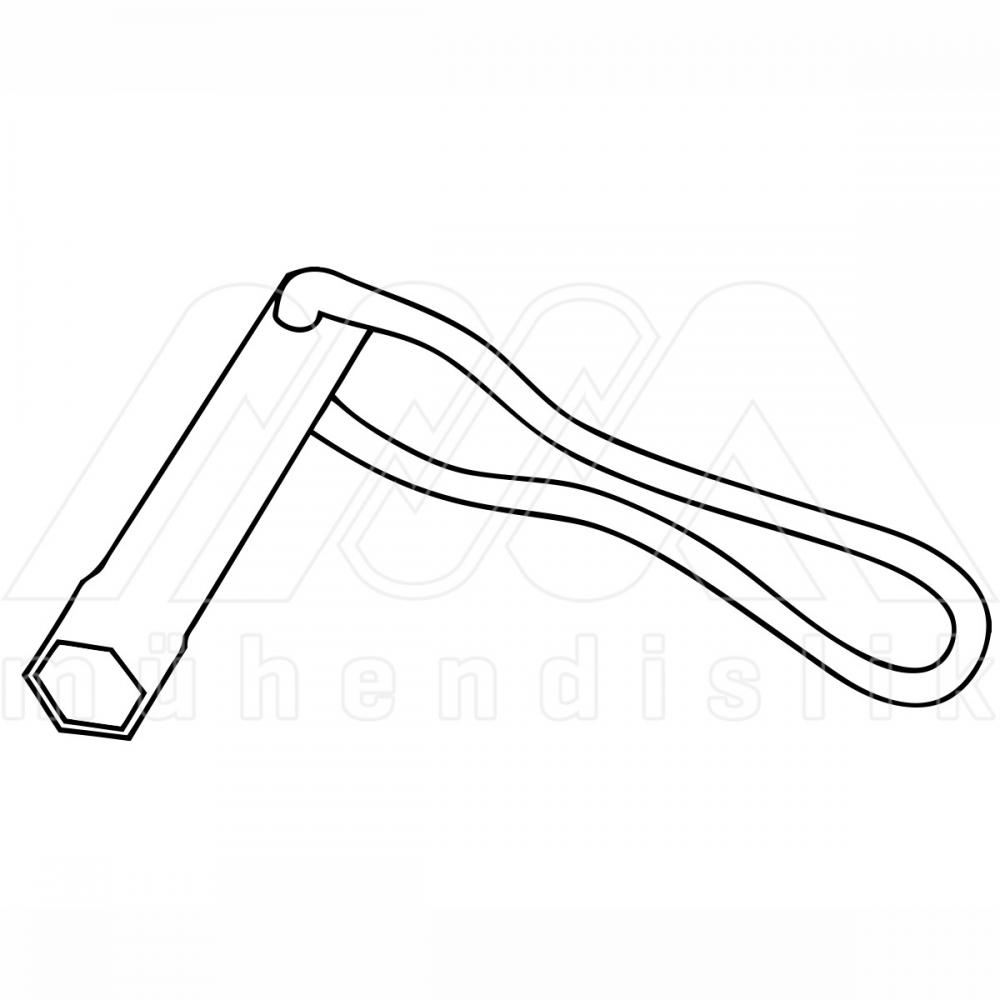

3 2485 000 005 Hexagon box spanner SW 13 for opening/closing fluorescent light fittings eLLK/M and nLLK/M
Description
GAS | II 2G Ex db eb IIC T4 Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2 D Ex tb IIIC T80 °C Db | IP66 | -25°C ÷ +50°C | -25°C ÷ +55°C |

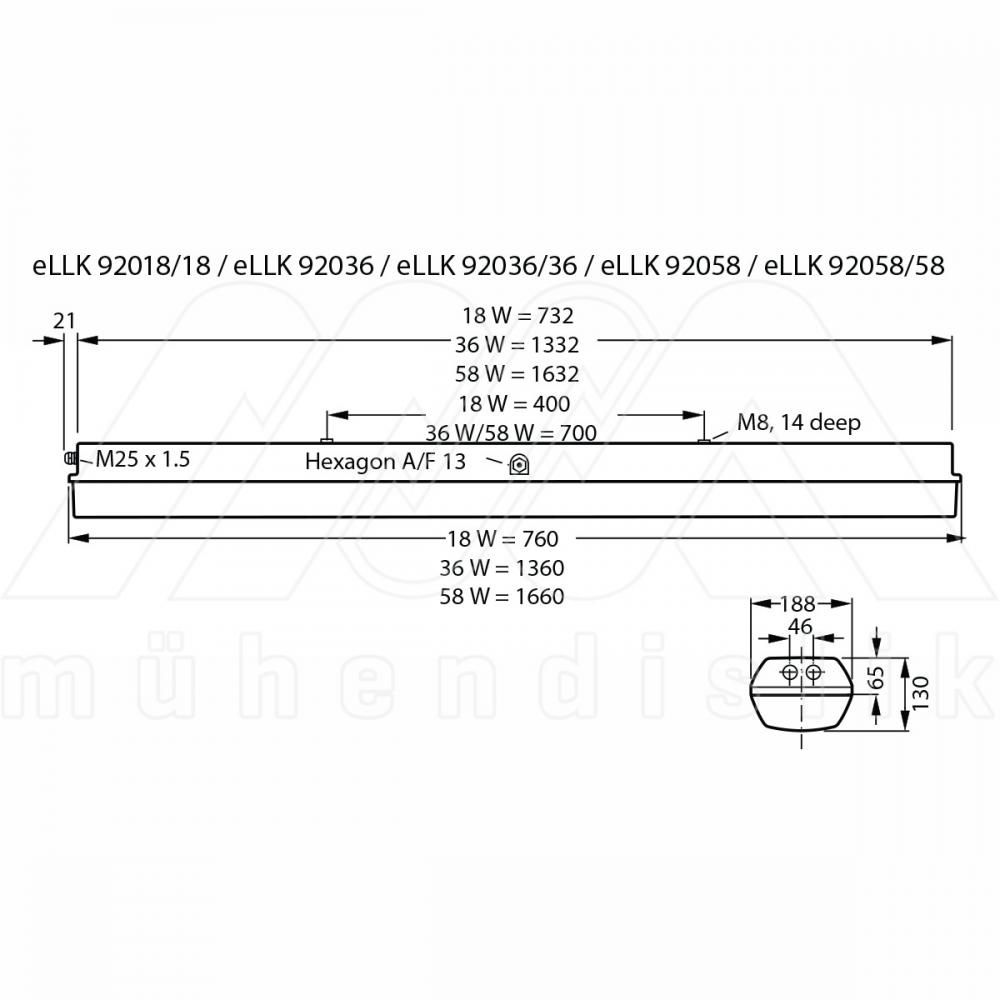

Code | Order No | Lamp Power | Lumen | Dimensions (mm) | U.Weight (kg) |
|---|---|---|---|---|---|
eLLK 92018/18 | 1 2265 875 109 | 2 x 18 W (T8) | 2700 | 760 x 188 x 130 mm | 5,20 |
eLLK 92036 | 1 2263 875 109 | 1 x 36 W (T8) | 3350 | 1360 x 188 x 130 mm | 6,70 |
eLLK 92036/36 | 1 2266 875 109 | 2 x 36 W (T8) | 6700 | 1360 x 188 x 130 mm | 7,40 |
eLLK 92058 | 1 2264 875 109 | 1 x 58 W (T8) | 5200 | 1660 x 188 x 130 mm | 8,20 |
eLLK 92058/58 | 1 2267 875 109 | 2 x 58 W (T8) | 10400 | 1660 x 188 x 130 mm | 8,50 |
