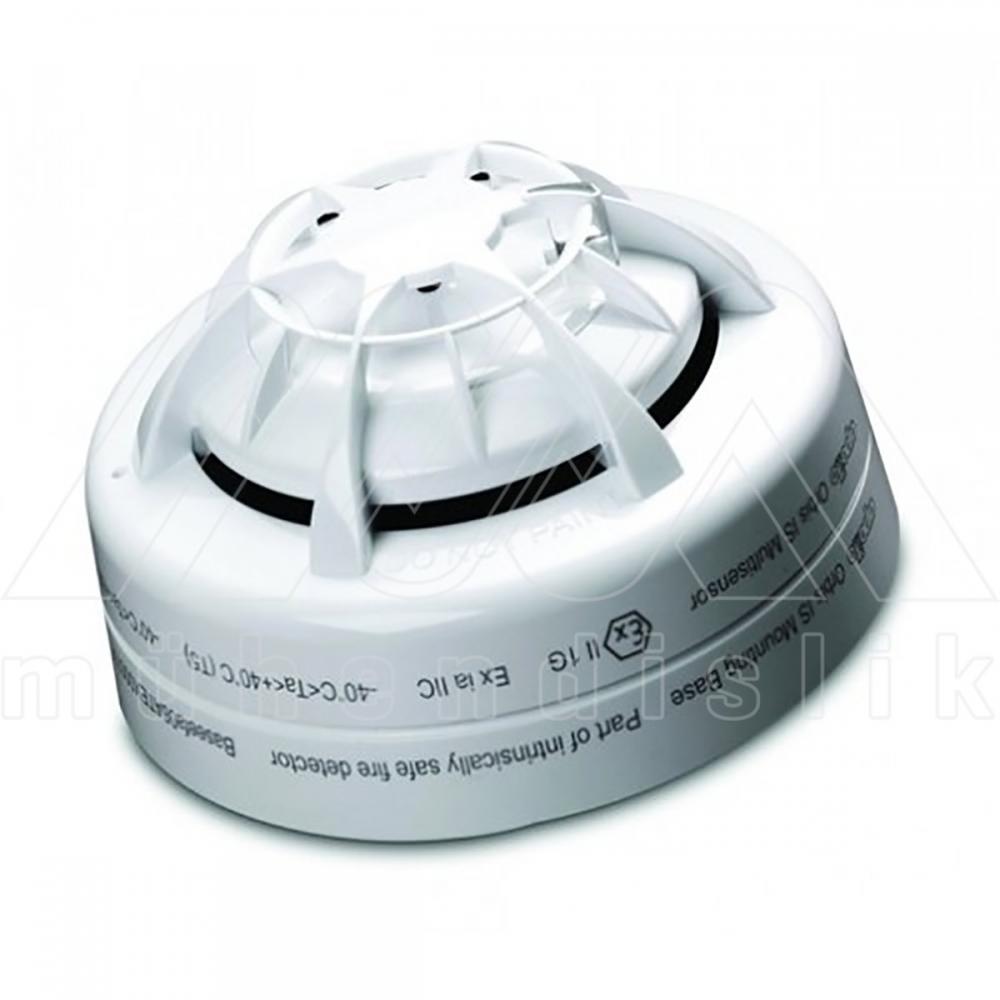

EX-PROOF COMBINED SMOKE & HEAT DETECTOR

APOLLO click to view other products of the brand.

Product Code:EXKD

EX-PROOF COMBINED SMOKE & HEAT DETECTOR

Detection Technologies	Smoke: Optical Heat: temperature sensitive resistance
Sampling Frequency	Every four seconds
Working Voltage	14.8 V dc - 28 V dc
Wiring	2 Veins, Polarity Sensitive
Power On Time	< 20 second.
Average current-24V	85 μA
Alarm Load Resistance	325 Ω
Alarm Reset Voltage	< 1 V
Alarm Reset Time	1 Second.
LED indicators	360º view
Remote output led ( - ) characteristic	Negative feed dependent 4.7 kΩ
Operating Temperature	-40ºC to + 70ºC Operating temperature is limited to. internal safety gas classification. Grade T5: -40ºC to + 45ºC Class T4: - 40ºC to + 60ºC The detector should be protected from condensation or icing conditions
Relative Humidity	0% - 98% RH
Protection Type	IP23D
Standards	EN54-7,CPD, LPCB, MED, LR, DNV-GL, BV, ABS, CCS, KRS, VdS, BOSEC, IECEx, ATEX, VNIIPO, SBSC, NANIO, PESO, FG
Certificate	BASEEFA Cert No. Bas06ATEX0007X
Material	White flame retardant polycarbonate
Measure / Weight	97 mm diameter x 42 mm height 100 mm diameter x 50 mm height - 80 g with base detector 140 G based detector
