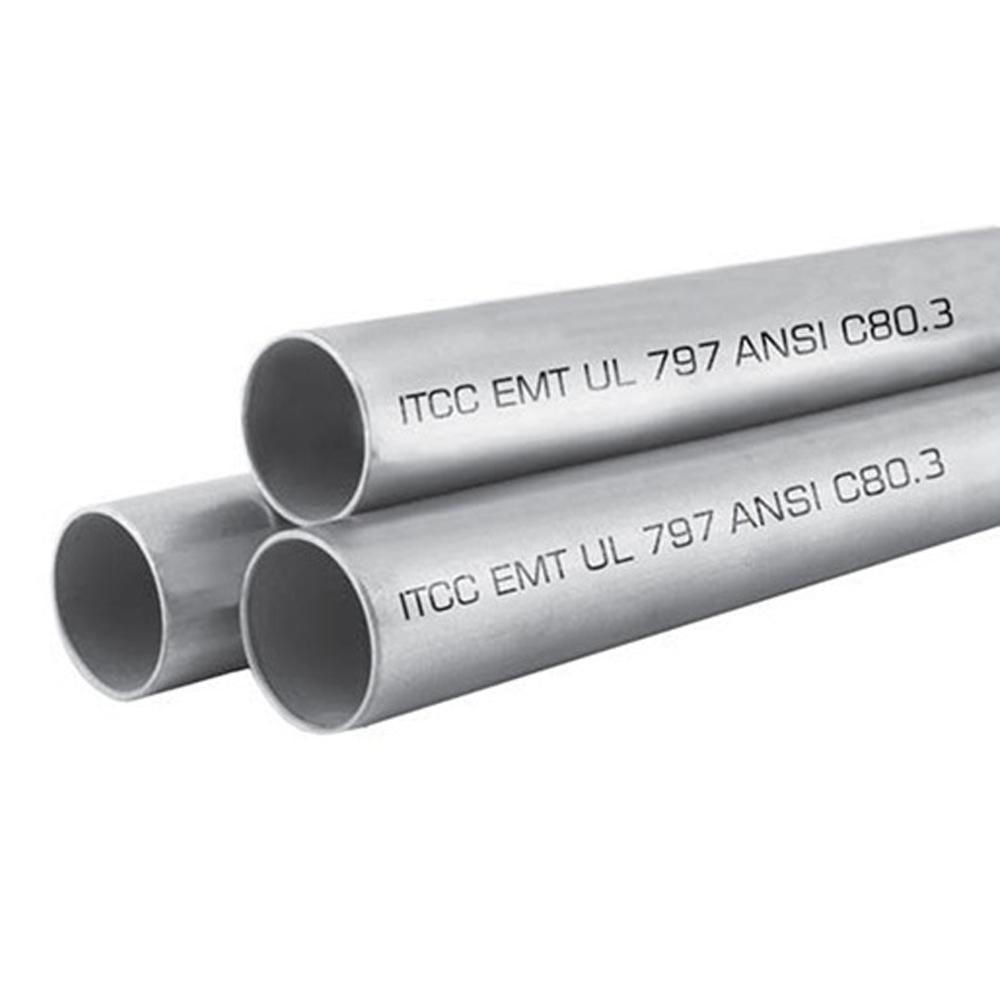

EMT GALVANIZED THREADLESS RIGID STEEL CONDUITS (I.T.C.C)
Product Code:EMT-101.H
- Certified by UL 797 and ANSI C80.3.
- Burr-free electrical installation conduits.
- Standard product length 3.05 m.
- Hot-dip galvanized coating.
- ±5% tolerance of all below-mentioned physical characteristics.
- Especially used in construction of social, industrial buildings, ships etc.
- Suitable for outdoor use and wet conditions.
Files
| File Name | File Size | Actions |
|---|---|---|
| EMT-DATA SHEET | 121 KB | Download |
| EMT-UL CERTIFICATE | 79 KB | Download |
| EMT-CE CERTIFICATE | 1903 KB | Download |
| EMT-GOST_R Click to View All EAC Certified Products | 2675 KB | Download |
Description
Product Code | Manufacturer's | Size | Nominal Diameter | Nominal Wall | Weight | Weight | Bundle Weight |
|---|---|---|---|---|---|---|---|
EMT-101.H | C-E00050 | 1/2" | 15,79 x 17,93 | 1,07 | 0,45 | 1,36 | 13,60 |
EMT-102.H | C-E00075 | 3/4" | 20,92 x 23,42 | 1,25 | 0,69 | 2,09 | 20,90 |
EMT-103.H | C-E00100 | 1" | 26,64 x 29,54 | 1,45 | 1,00 | 3,04 | 30,04 |
EMT-104.H | C-E00125 | 1 1/4" | 35,05 x 38,35 | 1,65 | 1,50 | 4,58 | 22,90 |
EMT-105.H | C-E00150 | 1 1/2" | 40,90 x 44,20 | 1,65 | 1,72 | 5,26 | 26,30 |
EMT-106.H | C-E00200 | 2" | 52,50 x 55,80 | 1,65 | 2,20 | 6,71 | 20,13 |
EMT-107.H | C-E00250 | 2 1/2" | 69,37 x 73,03 | 1,83 | 3,21 | 9,80 | 29,40 |
EMT-108.H | C-E00300 | 3" | 85,24 x 88,90 | 1,83 | 3,91 | 11,93 | 23,86 |
EMT-109.H | C-E00400 | 4" | 110,10 x 114,30 | 2,11 | 5,85 | 17,83 | 35,66 |
