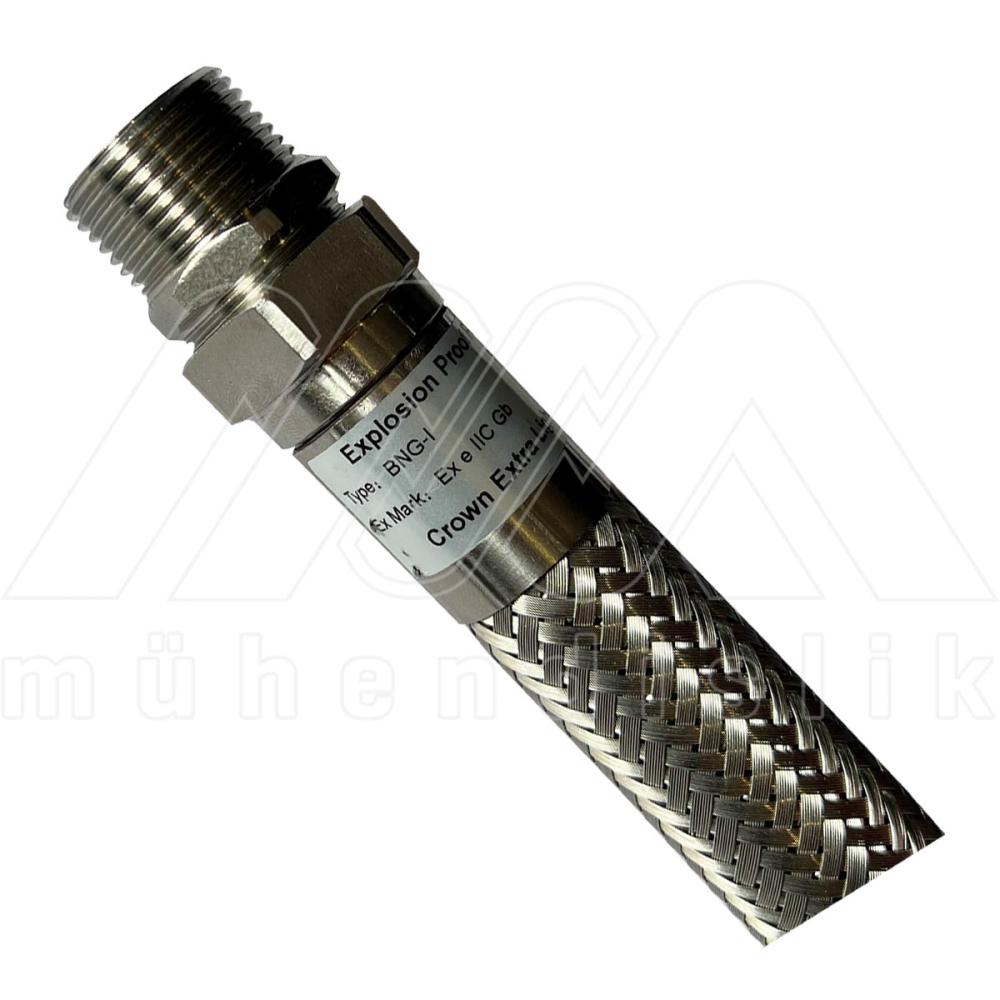

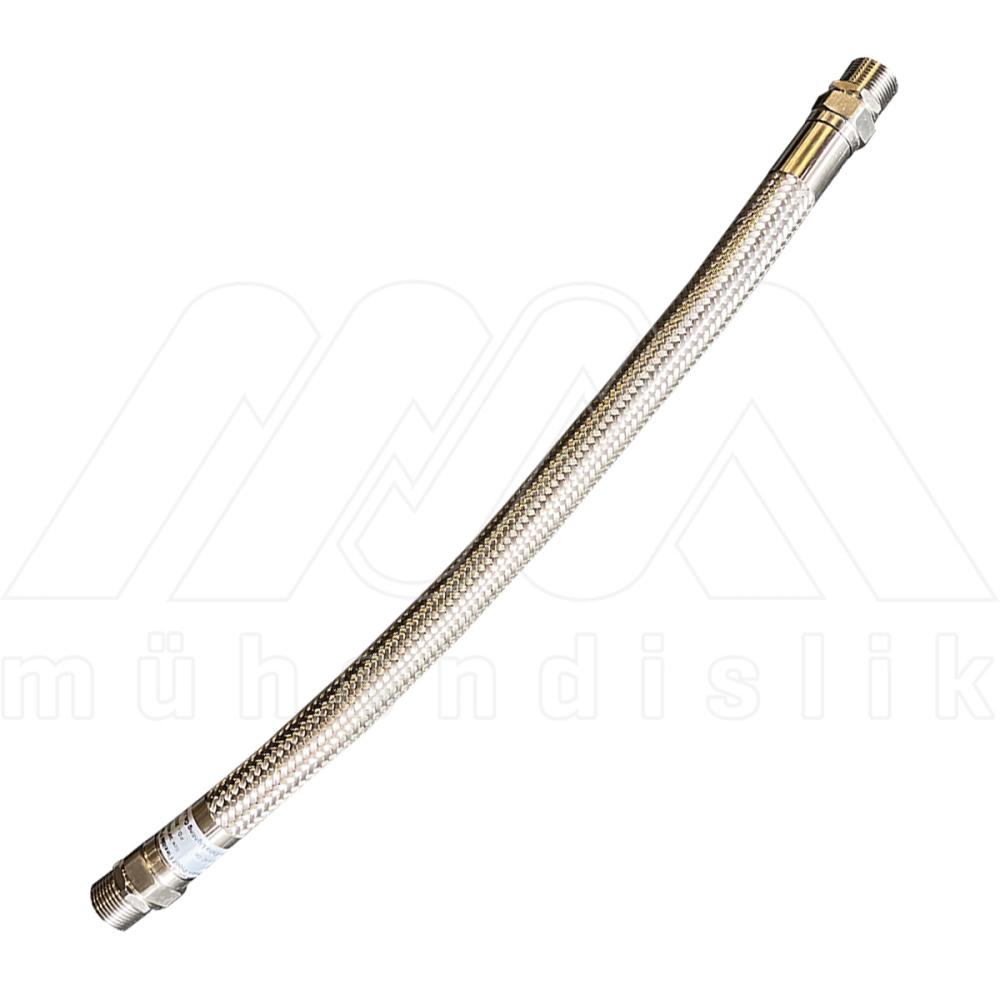

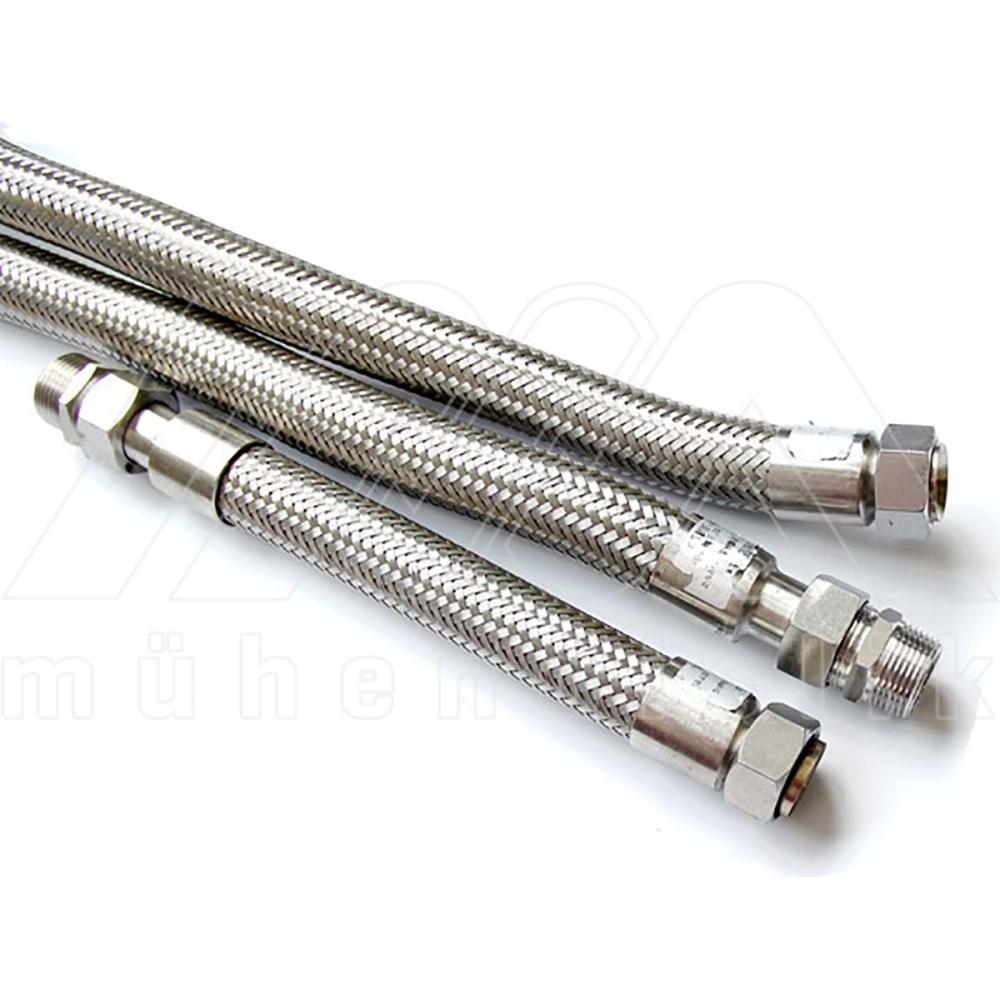

EX-PROOF BNG TYPE FLEXIBLE CONDUITS (CROWN EXTRA)
Product Code:BNG
- Ex-proof BNG type spiral hoses are made of 304 quality stainless material.
- The two ends of the Spiral hoses are self-stainless steel glands.

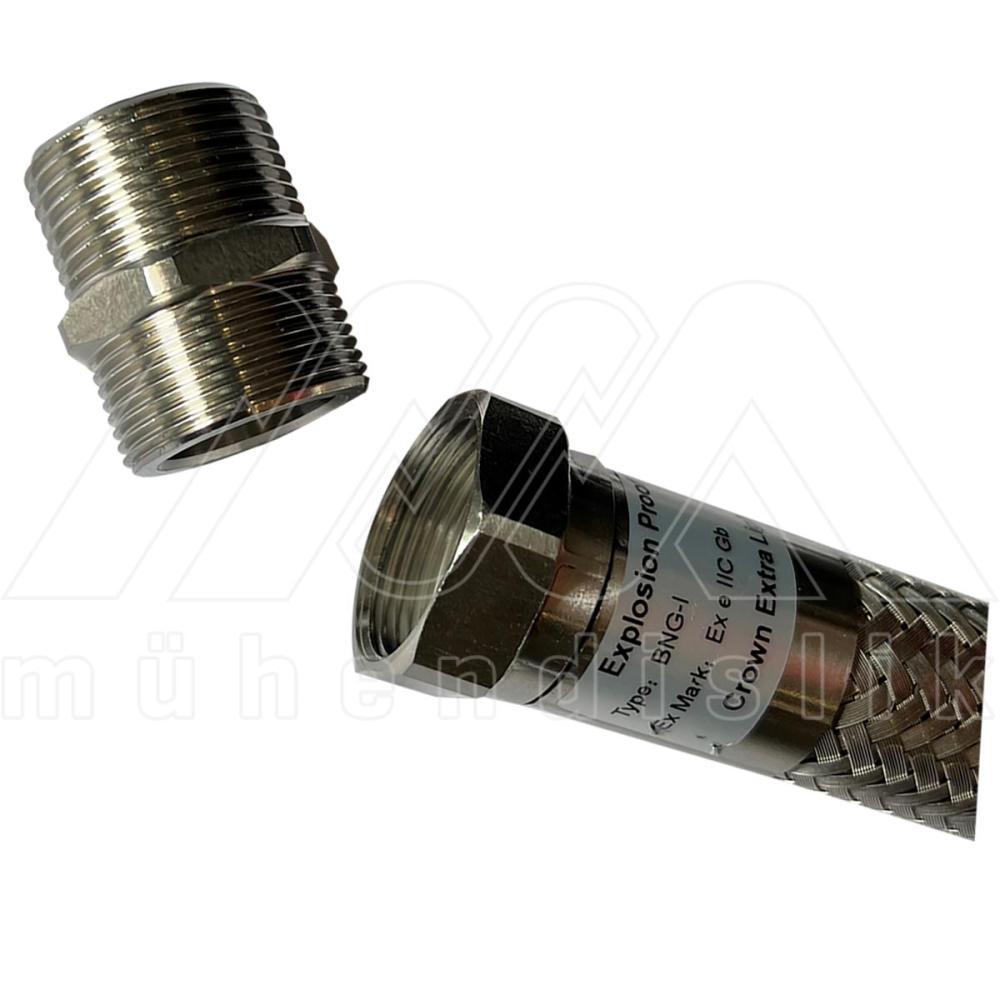

- In standard production, it has male/male swivel connectors and can be used as female/female movable by removing the nipples at the end.
Description
GAS | II 2G Ex db IIC T6 Gb | IP65 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2D Ex tb IIIC T80°C Db | IP65 | -20°C ÷ +80°C | 0H230103.CEL0021 |
50 cm Code | 100 cm Code | Thread Size | Min. bending radius | Outside Diameter |
|---|---|---|---|---|
BNG-1-50 | BNG-1-100 | 1/2" NPT | 80mm | 17,5 |
BNG-2-50 | BNG-2-100 | 3/4" NPT | 110 mm | 26,0 |
BNG-3-50 | BNG-3-100 | 1" NPT | 145 mm | 32,0 |
BNG-4-50 | BNG-4-100 | 1 1/4" NPT | 180 mm | 41,0 |
BNG-5-50 | BNG-5-100 | 1 1/2" NPT | 210 mm | 47,0 |
BNG-6-50 | BNG-6-100 | 2" NPT | 250 mm | 59,0 |
